3DR Video / OSD System Kit
Key Features
  • Camera with 1/3" Sony Super HAD CCD
  • 520 TVL Camera Resolution
  • 5.8 GHz Video Transmitter and Receiver
  • MinimOSD Kit - Overlays Telemetry Data

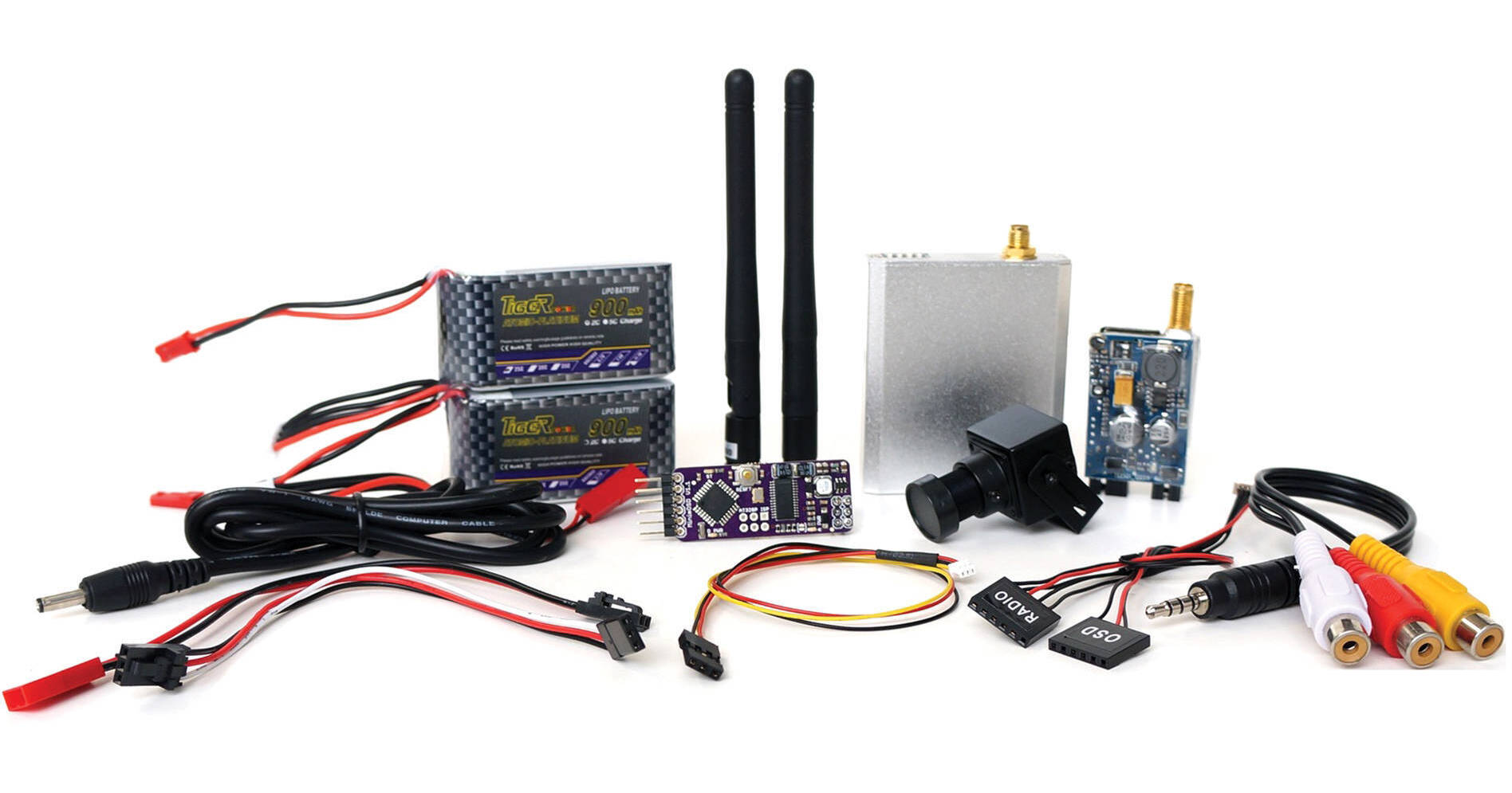

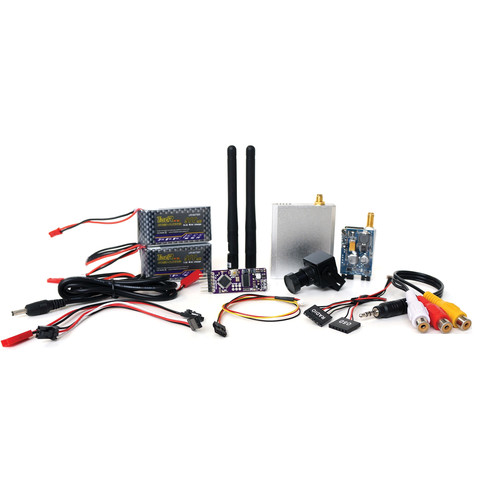

The Video / OSD System Kit from 3DR features a camera for FPV (first-person view), a 5.8 GHz video transmitter and receiver set, and an OSD for on-screen telemetry data overlay. It enables viewing of a live image from the aircraft along with key flight stats, such as remaining battery life, superimposed over the image. FPV goggles or a monitor are required, available separately.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

3DR VID-KIT-0007 Overview

The Video / OSD System Kit from 3DR features a camera for FPV (first-person view), a 5.8 GHz video transmitter and receiver set, and an OSD for on-screen telemetry data overlay. It enables viewing of a live image from the aircraft along with key flight stats, such as remaining battery life, superimposed over the image. FPV goggles or a monitor are required, available separately.

520 TVL resolution camera with Sony 1/3" Super HAD CCD sensor
With the OSD you can keep tabs on your battery condition, direction home, altitude, current waypoint, heading, and many other useful pieces of information
Two 900 mAh LiPo batteries included: one for the air-end and one for the ground-end
Includes necessary cables plus pre-crimped connectors

3DR VID-KIT-0007 Specs

Camera
Sensor
1/3" Sony Super HAD Color CCD
Resolution
520 TVL
Minimum Illumination
0.1 lux
Number of Pixels
NTSC: 768 x 492
Standards
PAL: 625 lines; 50 Hz
NTSC: 525 lines: 60 Hz
White Balance
Auto
Shutter Speed
PAL : 1/50 to 1/100,000 second
NTSC : 1/60 to 1/100,000 second
Auto
Signal to Noise Ratio
> 48 dB (AGC off)
Sync System
Internal synchronization
Gamma Characteristics
0.45
Output Signal
1 Vp-p, 75 Oms; negative
Power Requirement
12 VDC ±10%; 50 mA
Operation Temperature
14 to 122°F / -10 to 50°C; 95% RH
Storage Temperature
-4 to 140°F / -20 to 60°C
Dimensions
0.8 x 0.8" / 20 x 20 mm
Weight
1.1 oz / 31.2 g
OSD
Controller
ATmega328P with Arduino bootloader
OSD Overlay
MAX7456 monochrome on-screen display
Video Standard
NTSC
Solder jumper for PAL video option
Connectivity
FTDI cable compatible pinout
Standard 6-pin ISP header
2 x Independent power sections with an LED indicator on each
Solder jumpers for combining the power sections
Exposed test points for HSYNC and LOS
Power Requirements
5 VDC 500mA regulator for up to 12 VDC supply input
Dimensions
PCB Only: 0.7 x 1.7 x 0.3" / 1.8 x 4.3 x 0.8 cm
With Pins Installed: 0.7 x 2.4 x 0.3"/ 1.8 x 6.1 x 0.8 cm
Video Downlink
Frequency
5.8 GHz
Transmit Power
200 mw
Packaging Info
Package Weight
1.15 lb
Box Dimensions (LxWxH)
6.7 x 6.4 x 3.3"
