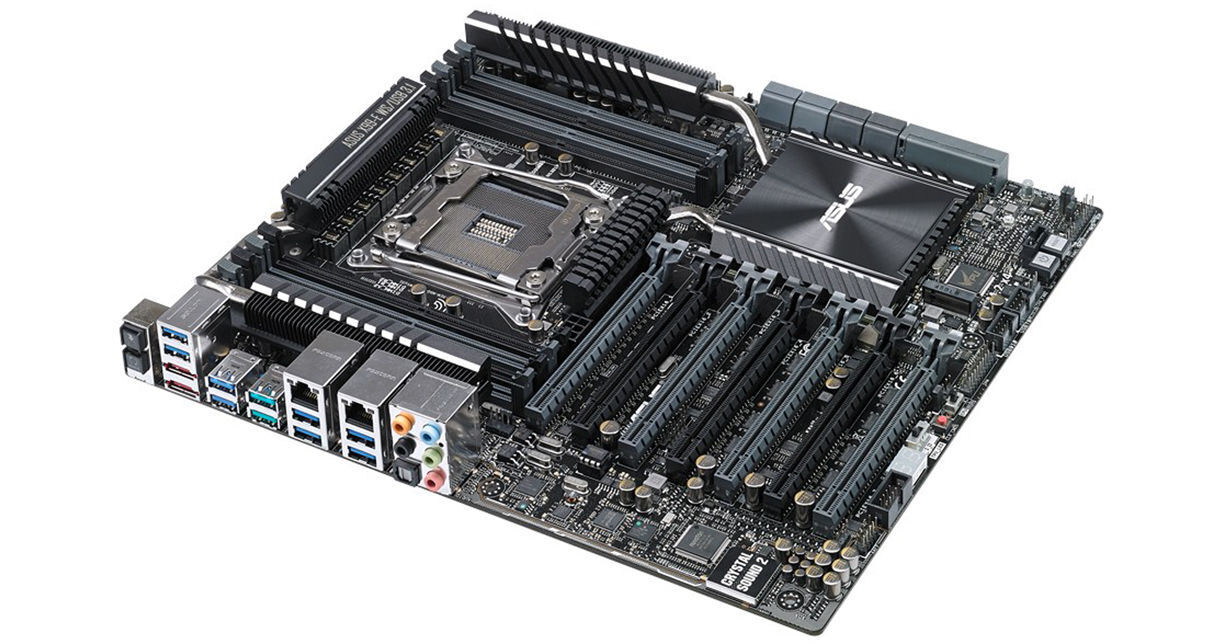

The X99-E WS/USB 3.1 Motherboard from ASUS is designed to fit in cases with a CEB form factor. The 12 x 10.5" X99-E WS supports Intel Core i7, Xeon E5-1600 v3, and Xeon E5 2600 v3 processors with a LGA 2011-v3 socket, as well as the Intel X99 chipset. This motherboard is compatible with Windows 8.1, 8, and 7 operating systems. It also supports USB 3.1, which can achieve data transfer rates of up to 10 Gb/s.
The CEB form factor of the X99-E WS has 8 x DIMM slots and can support up to 128GB of non-ECC, unbuffered DDR4 RAM at the following speeds - 3200(O.C.), 3000(O.C.), 2800(O.C.), 2666(O.C.), 2400(O.C.), and 2133 MHz. However, please be aware that the maximum base memory speed is 2133 MHz and anything higher is achieved through memory overclocking (O.C.). Also, please bear in mind that when installing a Xeon E5 1600 v3 or 2600 v3 processor, the system is able to support 128GB of unbuffered ECC DDR4 RAM at 2133 or 1866 MHz, as well as 128GB of registered ECC RAM at 2133 and 1866 MHz.
The X99-E WS has a total of 8 x SATA III 6 Gb/s ports, 2 x SATA Express ports (each of which is compatible with 2 x SATA III 6 Gb/s ports), 2 x eSATA 6 Gb/s ports (compatible with 2 x SATA III 6 Gb/s ports), and 1 x M.2 x4 Socket 3 port with M Key that supports PCIe storage devices type 2260 and 2280. It also has 2 x USB 3.1 ports, 10 x USB 3.0 ports, and 2 x USB 2.0 ports. To provide increased speed and/or data redundancy, RAID 0, 1, 5, and 10 modes are supported. For PCIe expansion, there are 7 x PCIe 3.0/2.0 x16 slots. While the X99-E WS does lack an integrated GPU, it has been optimized for multiple graphics cards and has multi-GPU support for NVIDIA 4-Way SLI and AMD 4-Way CrossFireX technology.
The X99-E WS is built for endurance. To this end, it is equipped with 12K solid capacitors, making it able to endure over 12,000 hours at 221°F / 105°C and 1.2 million hours at 149°F / 65°C. The X99-E WS also features lowered equivalent series resistance (ESR) for increased efficiency and minimized heat generation.
The X99-E WS/USB 3.1 Motherboard is also equipped with the Realtek ALC1150 8-Channel High Definition Audio Codec featuring Crystal Sound 2 that includes 8 x audio jacks and 1 x Optical S/PDIF out. Wired network connectivity is achieved through dual Gigabit Ethernet controllers - 1 x Intel I210-AT controller and 1 x Intel I218LM controller. Included with this motherboard is 1 x ASUS Q-Shield, 1 x COM port cable, 12 x SATA III 6 Gb/s cables, 1 x 3-Way SLI bridge, 1 x 4-Way SLI bridge, 1 x Q-connector (2-in-1), and 1 x 2-port USB 2.0 module.
Quad Strength Graphics Power
Four PCI Express 3.0 x16 slots
The X99-E WS/USB 3.1 can carry up to four dual-slot graphics. It supports 4-Way NVIDIA Geforce SLI and AMD CrossFireX x 16 Link, making it a well-suited choice for graphics professionals who depend on powerful graphics in areas such as design and modeling, medical research, plus processing-intensive simulation and rendering applications. In addition to graphics cards, extensive X99-E WS/USB 3.1 expandability offers ample room for RAID cards, PCI Express-based solid state storage drives, video capture cards, and other components
Power Solutions
12K Capacitors
ASUS has equipped the X99-E WS/USB 3.1 with 12K solid capacitors. These Japanese-made capacitors are very durable, able to endure up to 12K hours at 221°F / 105°C and 1.2 million hours at 149°F / 65°C. These temperatures are far higher than those generated by everyday computing, making X99-E WS/USB 3.1 built for endurance. 12K capacitors also boast lowered equivalent series resistance (ESR) for increased efficiency and minimized heat generation
ProCool Power Connectors
Compared with traditional power connectors, ProCool connectors ensure a close and secure connection with the X99-E WS/USB 3.1 motherboard. The flush connection enables lower impedance and better heat dissipation, allowing a cooler operating temperature
Beat Thermal Choke
ASUS Beat Thermal Chokes deliver durability and up to 93% power efficiency under normal operating conditions. A special fin design results in 5.4 to 9°F / 3 to 5°C lower choke temps for added stability, which is increased exponentially by the use of highly conductive and efficient gold-treated coating. This translates into minimal-loss power delivery
Dr. MOS MOSFET
The X99-E WS/USB 3.1 benefits from an integrated Driver-MOSFET (Dr. MOS) that both saves space and reduces operating temperatures. Compared with traditional MOSFET designs, the Dr. MOS high-side and low-side MOSFETs and built-in driver extend component lifespan and enhance power efficiency
Maintenance
Q-Code Logger
Q-code logger is your one-touch status checker that lets youeasily check the system's status at any time. Plug a flash drive into an adjacent USB port, press the motherboard's dedicated Q-Code logger button, and all ASUS Q-Code event logs for the current live session will be copied to the drive, even with the system off
ASUS Dr. Power
As the X99-E WS/USB 3.1 is meant for professional users who rely on non-stop operation, stable power delivery is critical. Real time power supply health detection helps prevent sudden system shutdown and provides hassle-free notifications should power delivery be insufficient. Additionally, LED messages on the board clearly indicate any relevant power issues in the event your system fails to boot
Performance
ASUS OC Socket
The X99-E WS/USB 3.1's CPU socket includes extra pins that connect proprietary circuitry to extra contacts found on Haswell-E's land grid array (LGA). When combined with ASUS' customized UEFI, this feature offers improved overclocking margins, especially under extreme liquid-nitrogen (LN&sub2;) overclocking. You'll enjoy better margins for memory overclocking, better comparative memory performance under the same frequencies, and better margins for CPU overclocking with minimal voltage drop - so you're able to push processors and DDR4 memory beyond their limits. OC Socket is 100% compatible with Haswell-E LGA 2011-3 processors
Make Your Memory Go Faster
This platform supports DDR4 memory and is capable of overclocking memory up to DDR4 3200+ MHz with all eight DIMMs fully loaded. ASUS T-Topology circuit design plus a patent-pending OC Socket unleashes the full potential of DDR4 by minimizing crosstalk and signal reflections. Signal timing issues are also greatly reduced, resulting in improved stability and overall performance. ASUS also works with almost every DDR4 memory vendor to help ensure compatibility
5-Way Optimization
CPU Performance boost
Unleash your PC's full performance with a simple two-phase onboard switch or the ASUS AI Suite 3 utility The Turbo Processor Unit (TPU) offers precise voltage control and advanced monitoring for the CPU and the graphics card, enabling great freedom to adjust CPU frequencies and ratios for optimized performance and to exploit the potential out of your graphics card
Energy Efficiency
With the Energy Processing Unit (EPU), you will enjoy from system-wide real-time power savings, controlled via a simple onboard switch or the AI Suite 3 utility. EPU detects and adjusts power consumption according to the PC's needs - automatically. It can also reduce CPU wattage to an indicated level or enjoy even more savings with Away Mode, which creates an extreme energy-saving scenario by shutting down unused extra I/O controllers and reduces the graphics cards' power level while you're away, so the PC consumes only the energy it needs
Fan Xpert 3
Fan Xpert 3 puts 4-pin/3-pin CPU and case fan controls in one place. It scans each fan's characteristics and delivers custom settings for each fan based on the dedicated area temperatures detected by hardware thermal sensors. It can also reduce the CPU fan speed to below the default minimum, for extra-quiet and power saving operation during light loads.
DIGI+ Power Control
Intelligent CPU power draw detection with ASUS DIGI+ Power Control is a technology that fully complies with Intel VRD12.5 specifications, increasing overclocking potential, enhancing system stability, and improving power efficiency with flexibility and accurate control
Turbo App
Gamers and professionals can benefit from app specific optimizations through the ASUS Turbo App. Its tuning panel boosts a range of hardware controls: overclock your CPU, tune your fans, prioritize network data, and optimize audio settings automatically
UEFI BIOS
UEFI BIOS is a mouse-controlled graphical BIOS that has been improved to increase its appeal. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily
EZ Mode
Fan Profile: Detailed CPU and case fan information for instant cooling
SATA Information: Displays SATA port details for you to easily recognize devices
Clock Adjustment: Use mouse controls to change the time and date
EZ XMP: Improve DRAM performance with a click
SATA Information: Displays SATA port details for you to easily recognize devices
Clock Adjustment: Use mouse controls to change the time and date
EZ XMP: Improve DRAM performance with a click
Advanced Mode
GPU POST: Find more info about your graphics cards and slot bandwidth allocation. Works well for 2 or 3-way SLI or CrossFireX
Shortcut: Press Enter to create shortcuts to favorite settings, or select an existing shortcut and press F4 to go straight there
Quick Notes: Make notes and capture BIOS-related ideas, quickly and conveniently
Last Modified Log: Track last change and save preferred profiles onto a USB drive
SATA Port Renaming: Rename SATA ports for easy identification
Shortcut: Press Enter to create shortcuts to favorite settings, or select an existing shortcut and press F4 to go straight there
Quick Notes: Make notes and capture BIOS-related ideas, quickly and conveniently
Last Modified Log: Track last change and save preferred profiles onto a USB drive
SATA Port Renaming: Rename SATA ports for easy identification
Map to MyFavorite
Quickly find tuning options and add preferred tools to the MyFavorites list
EZ Tuning Wizard - OC and RAID
Select your hardware and use scenarios to tune system performance or streamline your RAID configuration for faster data retrieval and backups
Graphical Fan Control
Fine-tune individual fans simply by dragging a curve with the mouse
Real-time Hardware Monitor
Benefit from instant information from the critical parts of your system
Fast Transfer Speed
SATA Express
SATA Express provides up to 10 Gb/s data-transfer speeds from two PCIe 2.0 lanes, resolving the higher bandwidth request in the near future. Modern SSDs consume up to 550MB/s, which is close to saturation point for SATA III 6 Gb/s connections. SATA Express is also backwards compatible with up to two SATA drives
M.2 up to 32 Gb/s
With four times the bandwidth of PCI Express 3.0/2.0, M.2 supports up to 32 Gb/s data-transfer speeds. It's a well-suited choice for an operating system or application drive, making your system and its professional apps work more efficiently with faster operational speeds
10 Gb/s USB 3.1
With USB 3.1 connectivity built in and dual Type-A ports for fast USB data transfers, you'll experience data-transfer speeds of up to 10 Gb/s, or twice as fast USB 3.0. This standard is backwards compatible with your existing USB devices and you'll be all set for USB 3.1's speeds. Also, ASUS-exclusive USB 3.1 Boost technology helps to automatically accelerates USB 3.1 performance even further
For Gamers and Professionals
Crystal Sound 2
Crystal Sound 2 makes short work of optimizing audio settings for the way you want to listen, be it gaming, chatting, watching movies, or relaxing to your favorite music.
Audio Shielding - Helps ensure precision analog/digital separation and reduced multi-lateral interference
EMI Protection - Helps prevent electrical noise that affects audio quality
Audio Amplifier - Helps enhance sounds for high quality playback over headphones and speakers
De-Pop Circuit - Helps reduce start-up popping noises to the audio outputs
Japanese-made 12K Hours Capacitors - Provides a more durable and reliable lifespan
Dedicated Audio PCB Layers - Separate layers for left and right channels to guard the quality of sensitive audio signals
EMI Protection - Helps prevent electrical noise that affects audio quality
Audio Amplifier - Helps enhance sounds for high quality playback over headphones and speakers
De-Pop Circuit - Helps reduce start-up popping noises to the audio outputs
Japanese-made 12K Hours Capacitors - Provides a more durable and reliable lifespan
Dedicated Audio PCB Layers - Separate layers for left and right channels to guard the quality of sensitive audio signals
Turbo LAN
Turbo LAN with cFosSpeed traffic-shaping technology adds lag-reducing support and an intuitive user interface. It allows you to lower lag with no expert knowledge by up to 1.45x. If you're a tweaker, use Advanced Mode for hardcore controls
Intel Gigabit Ethernet
Faster, smoother gaming - always. Intel Gigabit Ethernet has the double advantage of communicating directly with CPUs and offering high TCP and UDP throughput. This helps to significantly reduce the processor's workload, so there's more power for your game and your gameplay
Home Server
ASUS HomeCloud
ASUS HomeCloud lets you access your PC remotely, stream multimedia content to virtually wherever you want, and manage all your stuff from virtually anywhere - no matter where it's stored. It even turns your hard drive into private cloud storage, removing worries about storage limits.
Digital PC Hub
Enjoy your PC's multimedia content virtually anywhere. Pipe music from your PC while sipping coffee in a cafe or sit back with friends and stream a favorite movie to a smart TV. With ASUS Media Streamer, your entertainment goes wherever you go
Intel CPU and Chipset Features
Intel Core i7 Processor LGA2011-v3 Ready
This motherboard supports Intel Core i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes
Intel X99 Express Chipset
The Intel X99 Express Chipset is a single-chipset design that supports socket LGA2011-v3 Intel Core i7 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X99 provides a maximum 6 x USB 3.0 ports and 10 x SATA III 6 Gb/s ports for faster data retrieval
