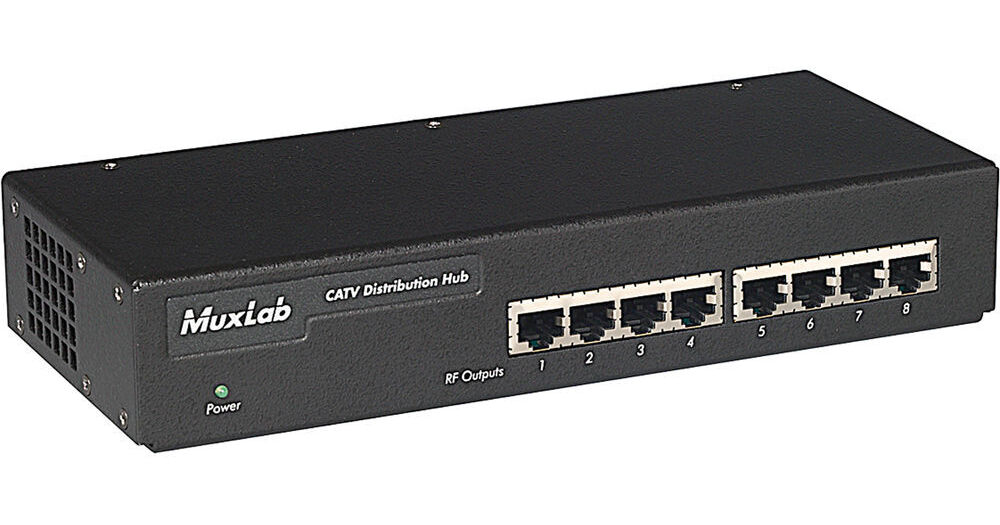

MuxLab 500300 CATV Distribution Hub (8 Ports)

BH #MUCATVH8 • MFR #500300
Print

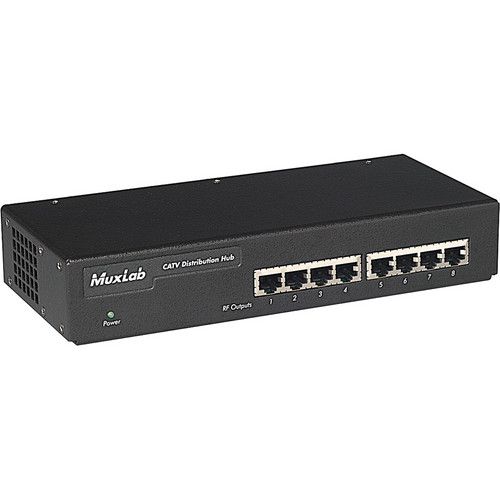

MuxLab 500300 CATV Distribution Hub (8 Ports)
Key Features
  • Supports Bandwidth up to 900 MHz
  • Supports CATV/Internet/Digital Cable
  • Bi-directional Transmission via Cat5
  • Built-in RF Amplifier
The MuxLab 500300 CATV Distribution Hub (8 Ports) allows distribution of terrestrial broadband RF video (bandwidth up to 900 MHz) to several RF receivers via Cat5 UTP (Unshielded Twisted Pair) cables. Supporting broadband CATV, VHF, FM, broadband internet, and digital cable, the 8-port hub is ideal for use in apartments, condominiums, hotels, offices, schools, hospitals, and trading floors.

The hub features built-in gain amplification and port buffering and its RF amplifier enhances low power signals to ensure low insertion loss. Working in conjunction with MuxLab's passive CATV baluns (500006 and 500302) and other standard RF video equipment, the hub provides a complete cabling solution. Besides Cat5 being a cheaper alternative to coaxial cabling, the use of the hub also makes changes and additions easier.

The desktop mountable hub has a black anodized aluminum enclosure and includes a base unit, an external power supply, and a LED indicator.

More Details
Special Order
Expected availability: 7-14 Business Days
No Store Display
$949.00
OR
$80/mo. suggested payments for 12 Mos.§ when you use the Payboo credit card. Learn More
Add to Cart
Free Standard Shipping
Protect Your Gear
Add a protection plan from $69.99
See Options
Ask an Expert
800-606-6969

MuxLab 500300 Overview

The MuxLab 500300 CATV Distribution Hub (8 Ports) allows distribution of terrestrial broadband RF video (bandwidth up to 900 MHz) to several RF receivers via Cat5 UTP (Unshielded Twisted Pair) cables. Supporting broadband CATV, VHF, FM, broadband internet, and digital cable, the 8-port hub is ideal for use in apartments, condominiums, hotels, offices, schools, hospitals, and trading floors.

The hub features built-in gain amplification and port buffering and its RF amplifier enhances low power signals to ensure low insertion loss. Working in conjunction with MuxLab's passive CATV baluns (500006 and 500302) and other standard RF video equipment, the hub provides a complete cabling solution. Besides Cat5 being a cheaper alternative to coaxial cabling, the use of the hub also makes changes and additions easier.

The desktop mountable hub has a black anodized aluminum enclosure and includes a base unit, an external power supply, and a LED indicator.

8 ports allow distribution of terrestrial broadband RF video to several RF receivers via Cat5 UTP
Supports broadband (bandwidth up to 900 MHz) CATV, VHF, FM, broadband internet, and digital cable
Features built-in RF amplifier, gain amplification and port buffering
Low insertion loss
Works in conjunction with MuxLab's passive CATV baluns and other RF video equipment for a complete cabling solution / hassle-free wiring
Allows use of Cat5 cables as an alternate to coaxial cables, making changes and additions easier
Used in apartment, residential, condominiums, hotels, offices, schools, hospitals and trading floors
Anodized aluminum enclosure
Desktop mountable, compact design - 9.3 x 3.9 x 1.6" (23.5 x 9.9 x 4 cm)
Includes a base unit, external power supply (12VDC), rubber stand-offs for desktop installation and a LED power indicator
Operates in 0 - 40° C
Compatible with other MuxLab baluns (500006 and 500302)
Meets FCC, CE, and RoHS regulatory standards
UPC: 627699003008

MuxLab 500300 Specs

Application
Environment: Broadband CATV, VHF, FM, broadband Internet, digital cable

Devices: Set-top tuners, RF splitters, RF amplifiers, modulators, combiners, re-processors, cable modems
Transmission
Transparent to the user
Bandwidth
3dB Bandwidth: 5MHz to 900 MHz
Channels
CATV 2-142, VHF channels 2-13, FM broadcast band. 5-42Hz return path for Internet
Gain
Signal Gain - Forward path (S21): 55-450 MHz: Tilt of .6 dB to 15.3 dB / 450-900 MHz: 14.1 dB < S21 < 15.9 dB

Signal Gain - Reverse path (S12): 5-42 MHz: -1.7 dB < S12 < 4.3 dB
Return Loss
>7 dB from 5 to 42 MHz
> 10 dB from 55 to 900 MHz
Common Mode Rejection
> 30 dB from 5 to 900 MHz
Mounting
Desktop
Maximum Distance
Cat 5 UTP: Maximum Distance - Cat 5 UTP Dependant on channel frequency, input power and receiver sensitivity.
LED Indicators
Power: One (1) green LED
Cable Requirements
UTP Cable

24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305 m) at 1 MHz

"F" Cable

Impedance: 75 ohms at 1 MHz (RG6)
Connectors
RF Input: "F" connector
RF Outputs: Eight (8)
RJ45 Ethernet Port
RJ45 Pins 7 & 8
Compatible Devices
Compatible MuxLab Baluns: 500006 (550 MHz), 500302 (900 MHz)
Temperature
Operating: 32 - 104°F (0 - 40°C)
Storage: 14 - 158°F (-10 - 70°C)
Humidity: up to 95% non-condensing
Power Requirements
12VDC @ 400 mA
Power Supply
Desktop 110-240V switching power supply
Input: 100-240V, ~0.5A Max, 50-60Hz
Output: +12V, 1.25A. Output Power: 15W Max. Detachable AC power cord
Enclosure
Black anodized aluminium
Dimensions
9.3 x 3.9 x 1.6" (23.5 x 9.9 x 4cm)
Weight
28.1 oz (817g)
Packaging Info
Package Weight
2.55 lb
Box Dimensions (LxWxH)
12.5 x 9.5 x 3.6"
