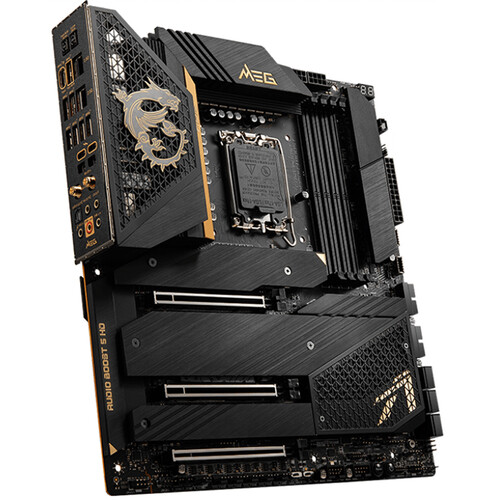

MSI MEG Z690 ACE LGA 1700 E-ATX Motherboard

BH #MSZ690ACE • MFR #MEG Z690 ACE
3 reviews
Print
MSI MEG Z690 ACE LGA 1700 E-ATX Motherboard
Key Features
  • E-ATX Form Factor
  • Intel Z690 Chipset
  • LGA 1700 Socket
  • 4 x Dual-Channel DDR5-6666 (OC)
Bring your rig to bear on opponents with the MEG Z690 ACE LGA 1700 E-ATX Motherboard from MSI. Featuring an LGA 1700 socket and Z690 chipset, this motherboard is compatible with Intel 12th Gen Core, Pentium Gold, and Celeron processors. Install up to 192GB of dual-channel RAM across four DDR5 memory slots, with speeds up to 6666 MHz supported via overclocking. Five M.2 and six SATA III connectors accommodate storage drives, while two PCIe 5.0 x16 slots and a PCIe 4.0 x16 slot can be used to install various adapter cards. This board also supports NVIDIA SLI and AMD CrossFireX for boosted gaming performance.
More Details
No Longer Available
No Store Display
Ask an Expert
212-444-6615

MSI Z690 ACE Overview

Bring your rig to bear on opponents with the MEG Z690 ACE LGA 1700 E-ATX Motherboard from MSI. Featuring an LGA 1700 socket and Z690 chipset, this motherboard is compatible with Intel 12th Gen Core, Pentium Gold, and Celeron processors. Install up to 192GB of dual-channel RAM across four DDR5 memory slots, with speeds up to 6666 MHz supported via overclocking. Five M.2 and six SATA III connectors accommodate storage drives, while two PCIe 5.0 x16 slots and a PCIe 4.0 x16 slot can be used to install various adapter cards. This board also supports NVIDIA SLI and AMD CrossFireX for boosted gaming performance.

Connect accessories via seven USB 3.2 Gen 2 Type-A and two Thunderbolt 4 ports on the rear I/O panel. Pair to wireless peripherals via Bluetooth 5.2 or go online with Wi-Fi 6E. Two RJ45 ports are also present, supporting wired 2.5 Gigabit Ethernet connections. Connect to monitors via the Thunderbolt 4 or mini DisplayPort outputs. Internal headers provide connections for liquid or air cooling, dual CPU power, water flow and thermal sensors, a TPM module, chassis intrusion alarm, dual USB 3.2 Gen 2x2 Type-C ports, and more. Relying on the Realtek ALC4082 Audio Codec, the MSI MEG Z690 ACE LGA 1700 E-ATX Motherboard supports 8-channel audio.

LGA 1700 Socket
Utilizing the LGA 1700 socket and Z690 chipset, this motherboard is compatible with 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors.
DDR5 Memory
Ramp up performance with DDR5 memory and support for speeds up to 6666 MHz when overclocking.
Go Gold
Genuine 24K gold is intended to lend a sophisticated aesthetic to the black PCB. This design is complemented by the gold foil heatsink.
Direct 19+1+2 Phase Power Design
Featuring a 19+2 phase design and 105A Smart Power Stage, a titanium choke, and dual CPU power connectors, this motherboard is made for streamlined gaming performance.
Five M.2 Connectors
Five onboard M.2 connectors provide a quad PCIe 4.0 solution, strengthened by a double-sided M.2 Shield Frozr for ample cooling.
Cool to the Core
An aluminum cover, VRM heat pipe, 7W/mK thermal pads, double-sided M.2 Shield Frozr, and aluminum backplate ensure low temperatures and optimum performance.
PCIe 5.0
PCIe 5.0 ensures rapid transfers with speeds up to 128 GB/s.
Dual Thunderbolt 4 Ports
Take advantage of transfer speeds up to 40 Gb/s, 8K display support, daisy-chaining, and multi-port accessory architecture for fast and reliable connectivity.
Dual 2.5GbE RJ45 Ports
Get the speed you crave for gaming or streaming with two RJ45 ports supporting 2.5 Gigabit Ethernet.
Wi-Fi 6E
Supporting the 6 GHz spectrum, Wi-Fi 6E also utilizes MU-MIMO protocols and BSS color technology for internet speeds up to 2400 Mb/s.
Built for Speed
Get in the game fast thanks to two PCIe 5.0 x16 expansion slots, PCIe 4.0 x4 M.2 slots, and internal headers supporting dual USB 3.2 Gen 2x2 Type-C ports.
Eight-Layer PCB with Thickened Copper
This enhanced PCB design uses two ounces of thickened copper for higher performance and long-lasting system stability.
Audio Boost 5
The ALC 4082 Audio Codec from Realtek provides immersive audio by combining an ESS DAC with an integrated amplifier.
USB 3.2 Gen 2
Doubling the speed of its predecessor, USB 3.2 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices and is synonymous with USB 3.1 Gen 2.

MSI Z690 ACE Specs

Key Specs
Chipset
Intel Z690
CPU Socket
LGA 1700
Memory Slots
4x 288-Pin
Memory Support
DDR5 4000, 4800, 5600, 6666 MT/s
Expansion Slots
1x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16 (x4 mode)
Wi-Fi
Wi-Fi 6E (802.11ax)
Form Factor
E-ATX
CPU
Chipset
Intel Z690
CPU Socket
LGA 1700
Back Panel I/O
USB
1x USB-C (USB 3.1/3.2 Gen 2)
7x USB-A (USB 3.1/3.2 Gen 2)
Thunderbolt
2x Thunderbolt 4
Display
2x Mini DisplayPort Output
Audio
1x S/PDIF
5x 1/8" / 3.5 mm
Ethernet / Controller
2x Intel I225-V 2.5Gigabit
Wi-Fi Antenna
2x Connector
Buttons
BIOS Flashback, Clear CMOS
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR5 4000, 4800, 5600, 6666 MT/s
Maximum Capacity
192 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
6x SATA III
U.2
No
Optane Memory Support
Yes
RAID Support
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
Internal I/O
Expansion Slots
1x PCIe 5.0 x16
1x PCIe 5.0 x16 (x8 mode)
1x PCIe 4.0 x16 (x4 mode)
USB
2x USB 2.0 Header (Supports 4 USB-A Port)
2x USB 3.2 Gen 2x2 Header (Supports 2 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
Air Cooling
6x 4-Pin System
1x 4-Pin CPU
2x Thermal Sensor
Power Connectors
1x 24-Pin Mainboard
2x 8-Pin ATX
Security
Chassis Intrusion, TPM Header
LED Header
1x RGB
Diagnostics
2-Digit Debug LED
Front Panel I/O
Front Panel I/O
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2
Audio
Audio Codec
Realtek ALC4082 (8-Channel)
DAC
No
Wireless
Wi-Fi
Wi-Fi 6E (802.11ax)
Bluetooth
Bluetooth 5.2
Module Support
1 E Key M.2
Software
OS Compatibility
Windows 10 or Later (64-Bit Only)
Physical
Form Factor
E-ATX
Dimensions
12.0 x 10.9" / 30.5 x 27.7 cm
Packaging Info
Package Weight
7.61 lb
Box Dimensions (LxWxH)
14 x 13 x 3.5"
