MuxLab 500701 HD-SDI Balun (Pack of 2)

BH #MUHDSDIBAL2N • MFR #500701-2PK
5 reviews
Print

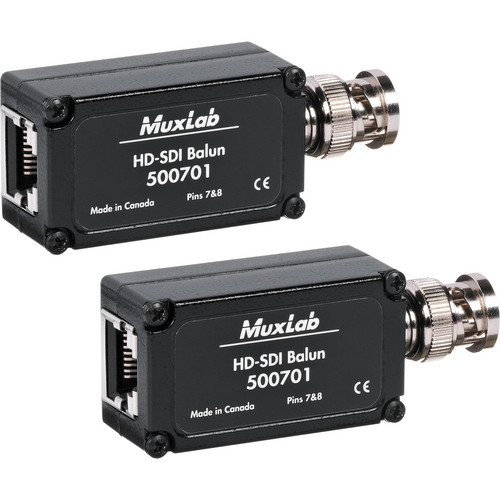

MuxLab 500701 HD-SDI Balun (Pack of 2)
In Stock
No Store Display
$126.00
+
Save the Tax‡
when you use the Payboo credit card. Learn More
Add to Cart
Free 2-Day Shipping
Protect Your Gear
Add a protection plan from $13.99
See Options
Ask an Expert
800-606-6969

MuxLab HD-SDI Balun Overview

The MuxLab 500701 HD-SDI Balun (Pack of 2) allows HD-SDI signals to be transmitted up to 150’ (45 m) via a CAT5e cable at HD resolution in a point-to-point configuration. The HD-SDI Balun supports uncompressed transmission of up to 2.97 / 3 Gbps and unencrypted digital video (optionally including embedded audio and / or time code) within television facilities and between professional video equipment.

Supports SD, HD, and 3G resolutions
Up to 150' (45 m) via CAT5e cable @ HD
Up to 400' (120 m) via CAT5e cable @ SD
Supports CAT5e/6 cable
Cast aluminum enclosure for EMI / RFI shielding
Applications include video production, broadcasting, HD camcorder, studio-to-studio, post production, live events, medical imaging displays, mobile video, HD/SD routing, HD-CCTV, and medical imaging
UPC: 627699907016

MuxLab HD-SDI Balun Specs

Environment
SDI Single Link: SD, HD, & 3G
Devices
Camcorders, video processors, monitors, projectors, scan converters, HD-CCTV cameras / DVR and any equipment supporting HD-SDI single link
Standard
SD: SMPTE 259M (270 Mbps)
HD: SMPTE 292M
3G: SMPTE 424M
Speed
270 Mbps, and 1.485 & 2.97 Gbps (automatic selection)
Insertion Loss
<6 dB: 5 to 1,500 MHz per balun
Connectors
1 x BNC 75 Ω male
1 x RJ45S for CAT5e/6 UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair)
RJ45 Pin Configuration
RJ45 link
Pin 7 (reciever) and Pin 8 (transmitter)
Cables
1 x straight CAT5e/6 or better twisted pair cable required
Temperature
Operating: 68 to 122°F (20 to 50°C)
Storage: -22 to 158°F (-30 to 70°C)
Humidity
Up to 95% (non-condensing)
Enclosure
Cast aluminum
Regulatory
FCC, CE, RoHS
Flammability
94V0
Dimensions
With Extended BNC Connector: 0.8 x 1.85 x 1.05" (2 x 2.6 x 4.7 cm)
Weight
1.5 oz (44 g)
Packaging Info
Package Weight
0.25 lb
Box Dimensions (LxWxH)
5.5 x 4.6 x 0.9"

MuxLab HD-SDI Balun Reviews

Did not work

By Jeff
Rated 1 out of 5
Date: 2023-05-17

They recommended this to replace SDI cable that I have to run over 300'. It simply did not work no matter how I hooked it up.

Great product

By CCTV Mac
Rated 5 out of 5
Date: 2014-03-19

These worked great for me. Would totally recommend. Had a small issue with resolution at first try but after a quick call with their tech team i was made aware that 1080p resolution had max distance of 50ft with cat6. 150ft is with 720p or less. All in all, great product. I'll definitely use in future jobs.

See any errors on this page?

question

Can these be used to run internet service over cat 6 cable? I only have cat 6 cable run from back of house to closet where modem sits. I want to switch to Cable internet service and can't run coax cable. Looking to use these on each end of the cat 6 line as service line from outside of house to audio / video closet where cable modem would sit.
Asked by: Anonymous
I'm afraid not. This is an extender set for SDI cabling, which is not the same signal used by Cable Service Providers. You really will want to consult directly with your Cable Provider for assistance with this matter.
Answered by: Joseph P.
Date published: 2022-08-30

Can one or both of these be used as a camera ...

Can one or both of these be used as a camera input in to a NDI switcher?
Asked by: Schuyler
This product is not NDI.
Answered by: Joe P
Date published: 2021-03-17

What is the maximum length of the Cat 6 cable ...

What is the maximum length of the Cat 6 cable that can be used with these? I will be using a Sony FS7 HD-SDI output and will have a 12-inch SDI/BNC pigtail at each end to connect the camera to a video switcher.
Asked by: John
This has a 150’ range for HD.
Answered by: Joe P
Date published: 2021-03-19

question

Can these be used on each end of a CAT 6 cable to transit cable service from outside of house to supply a cable internet modem in a audio video closet? I have an existing CAT 6 cable that AT&T uses to supply internet service to my audio/video closet where modem is located. I want to switch to Cable internet service but it's impossible to run a Coax cable from outside to A/V closet where modem needs to sit.
Asked by: Kaes d.
I'm afraid not. This is an extender set for SDI cabling, which is not the same signal used by Cable Service Providers. You really will want to consult directly with your Cable Provider for assistance with this matter.
Answered by: Joseph P.
Date published: 2022-08-30

Can this send 1080i/p up to 100'? We are sending ...

Can this send 1080i/p up to 100'? We are sending a teleprompter script - all text, no images.
Asked by: Janvier
Yes, with Cat5e cable the MuxLab 500701 HD-SDI Balun kit can send a HD signal up to 150ft. The kit supports, SD, and HD (720p,1080i) resolutions.
Answered by: Chris H
Date published: 2023-06-08

question

Does it require power to work?
Asked by: Anonymous
No. This is a passive balun. It will require no power as all it does is take the signal and transform it to run it down Data cable.
Answered by: Christopher P.
Date published: 2018-08-28
