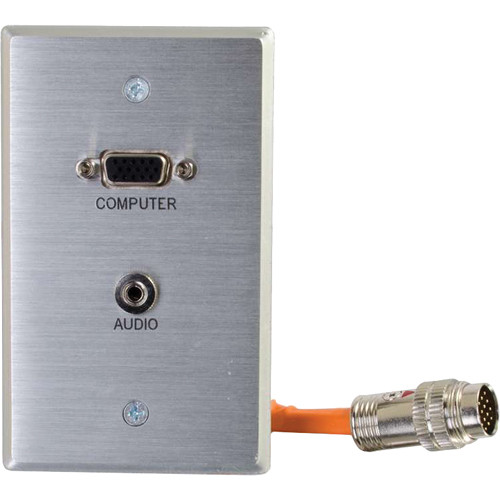

C2G RapidRun VGA (HD15) + 3.5mm Single Gang Wall Plate

BH #CA60107 • MFR #60107
Print
C2G RapidRun VGA (HD15) + 3.5mm Single Gang Wall Plate
No Longer Available
No Store Display
Ask an Expert
212-444-6615

C2G 60107 Overview

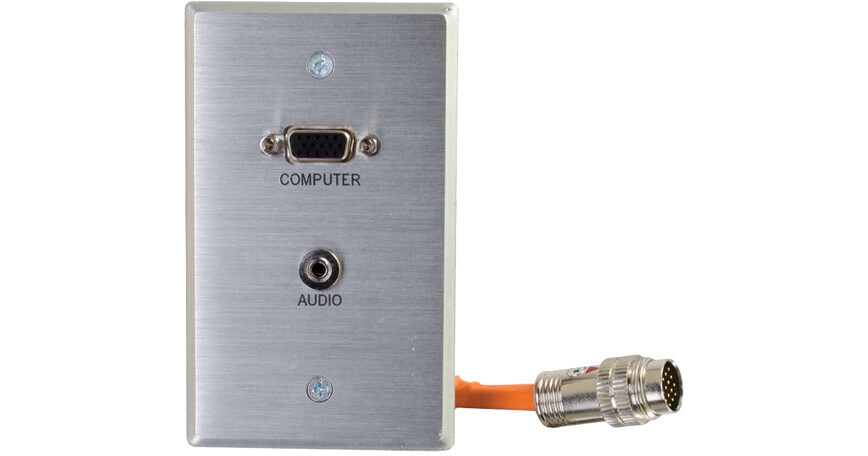

The RapidRun VGA (HD15) + 3.5mm Single Gang Wall Plate from C2G is used with a multi-format runner for a laptop, desktop, or any device that requires a VGA and a stereo audio connection. It is designed to be the standard for in-wall audio/video installations. Using pre-terminated break-away flying leads and wall plates with an in-wall runner (sold separately) ensures flexible, efficient, high-quality connections for all types of equipment, with no field terminations.

Constructed from aluminum for durability, this wall plate has a locking connector that enables the integrator to save valuable space inside the surface mount or electrical box that typically is already packed with cables.

Suitable for educational and institutional installations, this wall plate sends VGA and stereo audio over a single multi-format runner cable. It is commonly used on the teacher’s station (computer end) of classroom setups with the corresponding flying lead used at the projector.

Note:
Each complete RapidRun multi-format solution requires a separately sold break-away flying lead or wall plate to terminate each end of the runner cable. Each runner requires separately sold 2x break-away flying leads and 2x wall plates, or 1x break-away flying lead and 1x wall plate.

C2G 60107 Specs

Conductor
Impedance
Coax: 75 ±5 Ω
Capacitance
71 ±2 pF/ft
Velocity of Propagation
78 ± 1%
DC Resistance
237 ±10 Ω/km
Dielectric Strength
Minimum: 500 VAC / 1 minute
Insulation Resistance
10M Ω/km (500 V)
Nominal Attenuation
At 1 to 825 MHz
Minimum Limit: -5 dB
Maximum Limit: -5 dB
Frequency:
825 to 2475 MHz
Minimum Limit: -5 dB
Maximum Limit: -12 dB
Frequency:
2475 to 4125 MHz
Minimum Limit: -12 dB
Maximum Limit: -20 dB
Frequency:
4125 to 5100 MHz
Minimum Limit: -20 dB
Maximum Limit: -25 dB
DC Resistance
3 Twisted Pair: 93.25 Ω/m at 68°F (20°C)
Dielectric Strength
Minimum: 750 VAC/minute
Insulation Resistance
100M Ω/km at 68°F (20°C)
Type
Qty. 3: 28 AWG (7/0.127) (tinned copper)
Dielectric
Foam PE
Thickness
Minimum Average:
Foam PE: 0.06" (1.57 mm)
PVC (Red, Blue, & Green): 0.009" (0.230 mm)
Shield
Spiral shield (tinned copper) (90% coverage)
Insulation
PVC
Type
Qty. 3 Twisted Pair: 24 AWG (7/0.2) (tinned copper)
Foil Shield
Aluminum foil (100% coverage)
Insulation
PVC
Thickness
Minimum Average:
PVC: 0.009" (0.230 mm)
Type
Qty. 2 Conductors: 24 AWG (7/0.2) (tinned copper)
Insulation
PVC
Thickness
Minimum Average:
PVC: 0.009" (0.23 mm)
Connectors
Type
VGA Connector (Qty. 1): HD15
Gender
Female
Material
Brass, 3 ΩM gold plating
Insulation
Black PBT
Type
3.5 mm Connector (Qty. 1): 3.5 mm Stereo
Gender
Female
Material
Brass, 3 ΩM nickel plating
Insulation
Black PBT
Type
RapidRun Din Connector (Qty. 1): DIN 15-pin
Gender
Male
Material
Brass, 3 ΩM gold plating
Insulation
Black PBT
Physical Characteristics
Voltage Rating
30 V
Temperature Rating
176°F (80°C)
Temperature Range
-13 to 176°F (-25 to 80°C)
Minimum Bend Radius
3.5" (90.0 mm)
Approvals
CE
Dimensions
6.5 x 3.0 x 2.4" (165.1 x 76.2 x 60.9 mm)
Weight
0.38 lb (0.17 kg)
Packaging Info
Package Weight
0.4 lb
Box Dimensions (LxWxH)
6.6 x 3.1 x 0.38"
