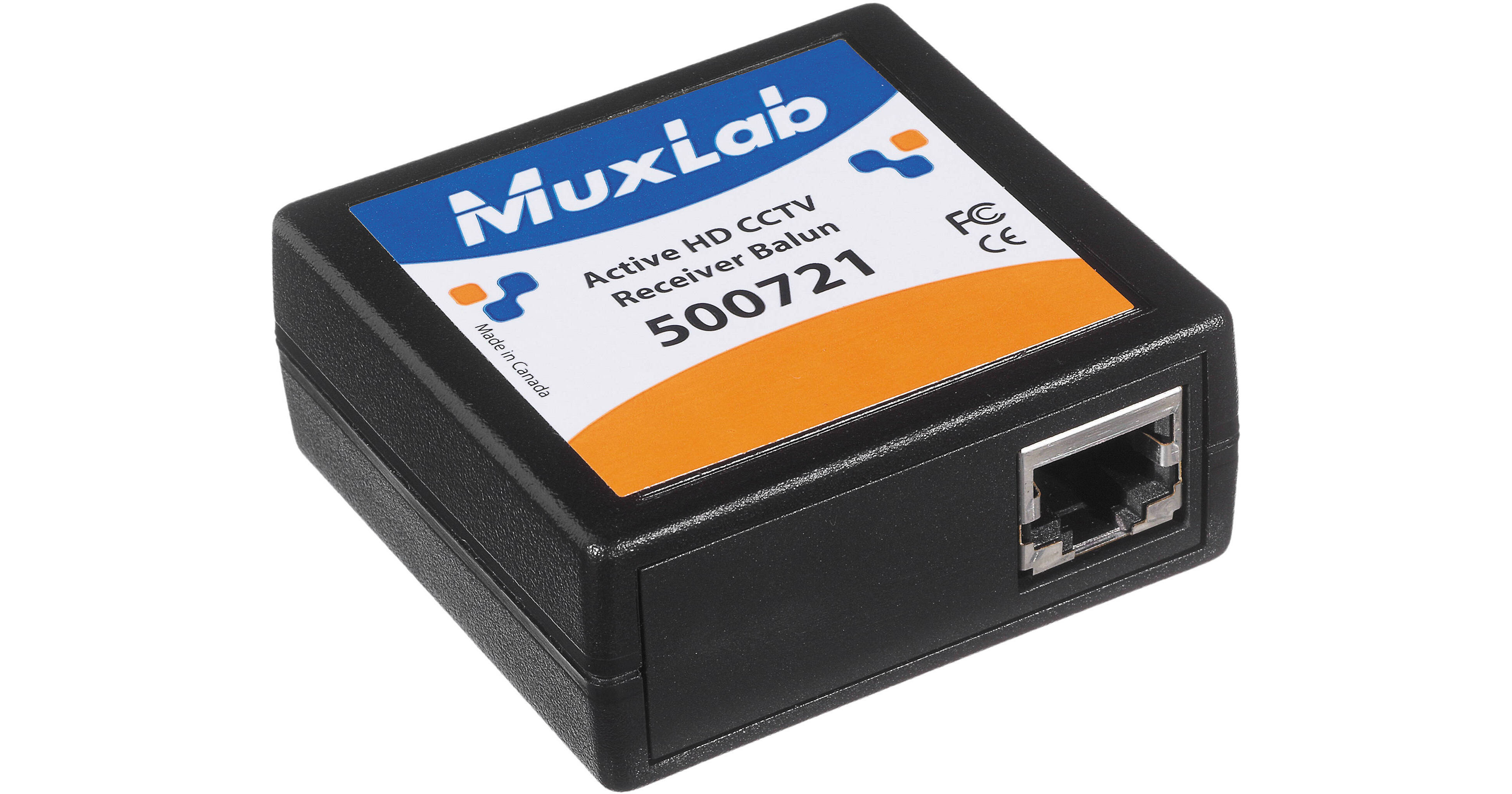

MuxLab 500721 Active HD CCTV Receiver Balun

BH #MUAHDCCTVRB • MFR #500721
Print

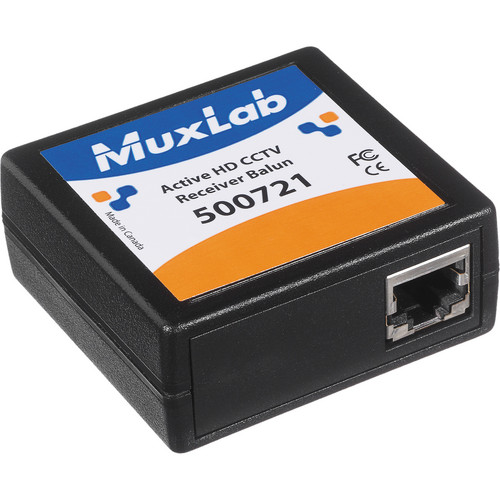

MuxLab 500721 Active HD CCTV Receiver Balun
No Longer Available
No Store Display
Ask an Expert
866-842-7675

MuxLab 500721 Overview

The MuxLab 500721 Active HD CCTV Receiver Balun provides extended distance between an HD-SDI CCTV camera and an HD-SDI DVR via CAT5e/CAT6 cable (sold separately). It supports transmission up to 150’ (45m) via CAT5e cable and up to 200’ (60m) via CAT6 cable at HD resolution (720p, 1080i). The balun supports the transmission of SDI digital video signal (including embedded audio and/or time code) within facilities and between video equipment. It is installed at the receiver location and used in conjunction with the 500720 HD CCTV Pass-Thru Balun or 500720-CL HD CCTV Pass-Thru Balun with Cable Leads installed at the remote camera location.

Furthermore, the balun allows remote power and 2-wire PTZ control to be combined with HD-SDI video over the same CAT5e/CAT6 for optimized cabling. This receiver balun can be used at campuses, airports, hotels, casinos, commercial complexes, residential establishments, self-storage, hospitals, and car dealerships.

Used in conjunction with 500720 HD CCTV Pass-Thru Balun
Supports HD CCTV (HD-SDI)
Supports transmission up to 150' (45m) @ HD-SDI (720p, 1080i) via CAT5e cable
Supports video, remote power, and control over a single CAT5e/CAT6
LED indication for power and SDI sync
Supports MuxLab mounting accessories (500900/902/910/915)

MuxLab 500721 Specs

Environment
HD CCTV, HD-SDI
Devices
HD CCTV/HD-SDI cameras, monitors, DVRs and other HD-SDI (up to 1080i) CCTV equipment that need to bring power and control using a single UTP cable
Compatible Transmitter
500720, 500720-CL
Mount Compatibility
500902, 500900, 500910, 500915
Signal transmission
Signal: SDI (no analog signal)
Power: 12 VDC or 24 VAC, 2 A maximum
Control Signal: Any signal using a balanced pair, 60 V, 1 A maximum
Remote Power
Supports up to 20 VA / 2 A via 2 twisted pairs
Supports up to 30 VA/ 2 A via 3 twisted pairs
Maximum Voltage: 28 V
Maximum Distance via Cat5e/6
SD: 500' (150 m) for CAT5e UTP, 500' (150 m) for CAT6 UTP
HD (720p, 1080I): 150' (45 m) using CAT5e UTP, 200' (60 m) for CAT6 UTP
3G (1080p): 65' (20 m) for CAT6 UTP only
Note: Maximum distance is affected by receiver equipment. Dedicated CAT5e/CAT6 cables are recommended with no patch panels.
LED Indicators
One for power
One for SDI signal presence
Cable Requirements
UTP
24 gauge or lower solid copper twisted pair wire
Impedance: 100 Ω at 1 MHz
Maximum Capacitance: 20 pF/ft
Attenuation: 6.6 dB/1,000' @ 1 MHz

Coax
Impedance: 75 Ω @ 1 MHz (RG59/U)
Connectors
Video: BNC (female)
Remote Power: 2-pole screw terminal block
PTZ: 2-pole screw terminal block
CAT5e/CAT6 Link: RJ45S
Power connector
RJ45 Pin Configuration
Pin 7-8 for SDI signal
Pin 1+3, 2+6 for power (1&3 in parallel, 2&6 in parallel)
Pin 4-5 for control
Power Requirements
12 VDC 90 mA, coming from the same power line as source
24 VAC 60 mA, coming from the same power line as source
5 V 130 mA using the external wall mount power supply included
Temperature
Operating: -13 to 140°F (-25 to 60°C)
Storage: -40 to 185°F (-40 to 85°C)
Humidity: Maximum 95% (non-condensing)
Enclosure
ABS UL94HB fire retardant plastic
Regulatory
FCC and CE
Dimensions
2.4 x 2.2 x 1.0" (6.1 x 5.7 x 2.5 cm)
Weight
2 oz (70 g)
Packaging Info
Package Weight
0.4 lb
Box Dimensions (LxWxH)
4.724 x 3.386 x 2.284"
