Nipros F-1 Audio Embedder

BH #NIF1 • MFR #F-1
Print

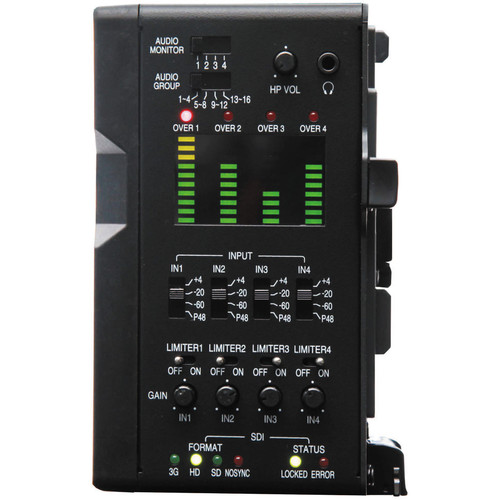

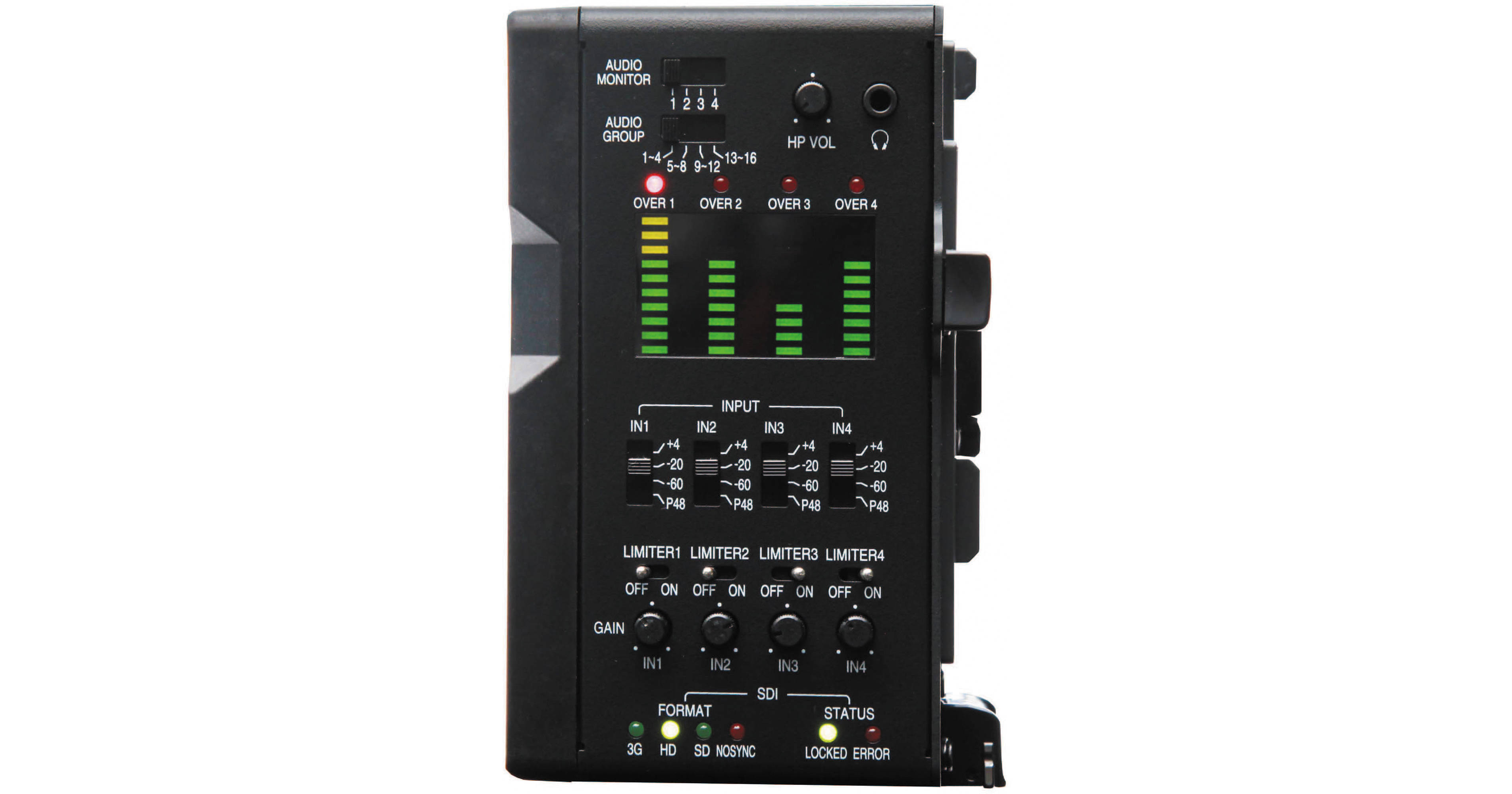

Nipros F-1 Audio Embedder
No Longer Available
No Store Display
Ask an Expert
212-444-6615

Nipro F-1 Overview

The F-1 Audio Embedder from Nipros is designed to embed four-channel analog audio into an HD-SDI signal. Zero to three frames delay can be adjusted for each channel. The embedder has a large audio bar meter for each channel, and a selectable audio insertion channel position (channels 1 to 4, 5 to 8, 9 to 12, or 13 to 16). Each channel has a built-in hyper limiter designed to minimize unexpected audio distortion or noise. The unit's Time Code (TC) output enables you to synchronize handheld camcorder and shoulder camcorder with Time Code. Audio input is made via XLR connectors, and its level can be adjusted (48V/-60 dB/-20 dB/+4 dB) via the front panel SW slide. HD-SDI input is made via two HD-SDI connectors. DC power can be supplied either from a V-mount Li-ion battery or from a power adapter (not included) via the unit's XLR 4-pin input.

4-channel analog audio signals can be embedded individually
Zero to three frames delay can be adjusted in each channel
Large audio bar meter for each channel
Audio insertion channel position can be selected
Each channel has built-in hyper limiter
Microphone/Line slide selector
TC output from HD/SD-SDI incoming signal

Nipro F-1 Specs

Video Connectors
Rear Panel:
1 x BNC, HD-SDI input
2 x BNC, HD-SDI output
1 x BNC, TC output
Audio Connectors
1 x 3-pin XLR, channel 1 mic/line input
1 x 3-pin XLR, channel 2 mic/line input
1 x 3-pin XLR, channel mic/line 3 input
1 x 3-pin XLR, channel mic/line 4 input
Front Panel:
1 x 3.5 mm mini phone jack, headphones input
Power Connectors
Rear Panel:
1 x 4-pin XLR input
Lateral:
1 x V-sue input, for Li-ion battery
1 x V-mount output, for camera
Controls
Front Panel:
1 x Audio monitor 4-position slide selector
1 x Audio group 4-position slide selector
1 x HP volume, rotary knob
1 x Audio input 1 level, 4-position slide selector
1 x Audio input 2 level, 4-position slide selector
1 x Audio input 3 level, 4-position slide selector
1 x Audio input 4 level, 4-position slide selector
1 x Limiter 1 On/Off, slide selector
1 x Limiter 2 On/Off, slide selector
1 x Limiter 3 On/Off, slide selector
1 x Limiter 4 On/Off, slide selector
1 x Input 1 gain control, rotary knob
1 x Input 2 gain control, rotary knob
1 x Input 3 gain control, rotary knob
1 x Input 4 gain control, rotary knob
Rear Panel:
1 x Input 1 DELAY, 4-position slide selector
1 x Input 2 DELAY, 4-position slide selector
1 x Input 3 DELAY, 4-position slide selector
1 x Input 4 DELAY, 4-position slide selector
LED Indicators
1 x Channel 1, audio bar meter
1 x Channel 2, audio bar meter
1 x Channel 3, audio bar meter
1 x Channel 4, audio bar meter
1 x Channel 1 OVER, red
1 x Channel 2 OVER, red
1 x Channel 3 OVER, red
1 x Channel 4 OVER, red
1 x 3G format, green
1 x HD format, green
1 x SD format, green
1 x NOSYNC format, red
1 x Status LOCKED, green
1 x Status ERROR, red
Input Level
Each Channel:
Line: +4 dB/-20 dB
Microphone: -60 dB/ phantom power 48 VDC
Power Requirements
12 VDC, 0.1 W (from AC adapter or Li-ion battery)
Dimensions
3.6 x 5.4 x 3.1" (9.2 x 13.8 x 8.0 cm)
Packaging Info
Package Weight
2.25 lb
Box Dimensions (LxWxH)
8 x 6.6 x 5.4"
