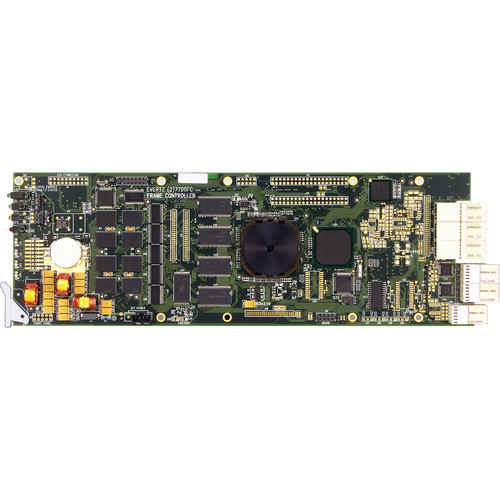

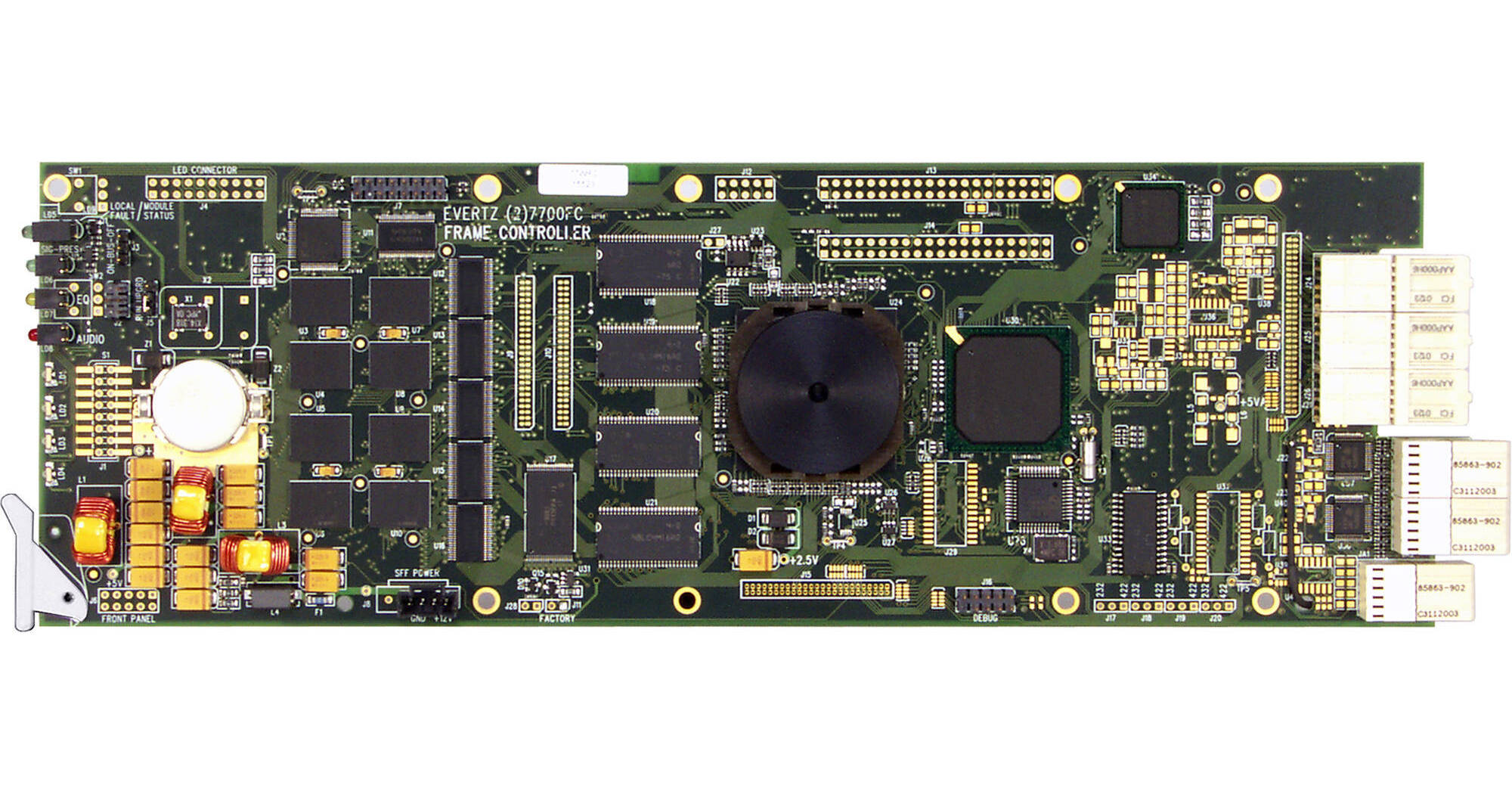

This VistaLINK Frame Controller Card with 3RU Rear Plate from Evertz Microsystems provides a single point of access to communicate with VistaLINK-capable modules. It features a 10BASE-T/100BASE-TX/1000BASE-TX Ethernet port, and communication is facilitated through the use of Simple Network Management Protocol (SNMP). The VistaLINK Frame Controller handles all SNMP communications between the frame (7700FR/7800FR/350FR) and the network manager (NMS), and it serves as a gateway to individual cards in the frame. An RS-232 serial port interface is provided for customer configuration. This card must be placed in slot 1 of the frame.
3RU rear plate for use with 350FR, 7700FR-C, 7800FR, or 7800FR-QT multiframe
Complies with IEEE 802.3 10BASE-T, 100BASE-TX, and 1000BASE-TX
Ethernet standards
1000 Mbps Gigabit Ethernet, 100 Mbps Fast Ethernet, or 10 Mbps Ethernet data
transfer, selected by auto negotiation
Full-duplex or half-duplex operation, selected by auto-negotiation
RJ-45 connector for network cable connection
Card edge LEDs indicate module fault, microprocessor state, activity, and link
status
Rear panel LEDs indicate Ethernet link, activity, and speed
Supports "FTP" upgrades for frame-wide firmware upgrades (product specific)
Includes VistaLINK PRO (VLPRO-C) module software configuration tool
Provides frame/chassis status information through VistaLINK including
power supply status, frame status, card insertion/removal counters, 7800FC
software version number, and LED control
Provides an onboard web interface to directly control supported modules
