Switchcraft 114BX 1/4" 3-Conductor Jack with Solder Lugs (Double Closed Circuit)

BH #SW114BX • MFR #114BX
Print

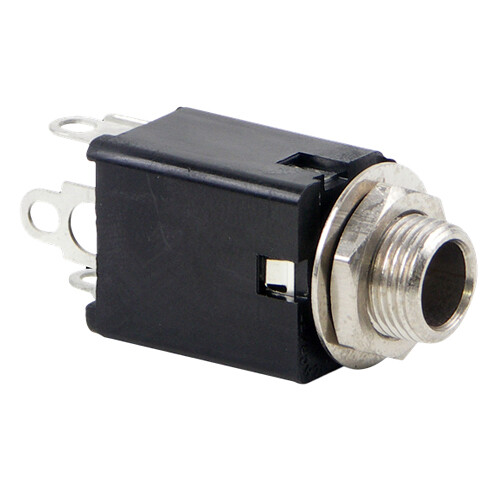

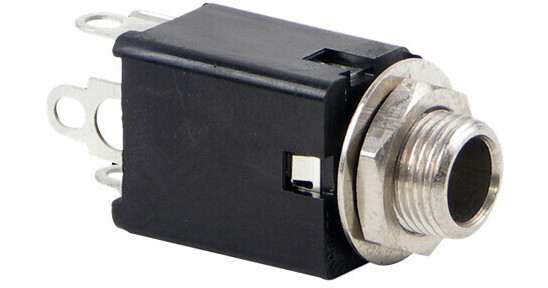

Switchcraft 114BX 1/4" 3-Conductor Jack with Solder Lugs (Double Closed Circuit)
No Longer Available
No Store Display
Sold only in multiples of (500)
Ask an Expert
800-606-6969

Switchcraft 114BX Overview

The 114BX 1/4" 3-Conductor Jack with Solder Lugs from Switchcraft is suitable for panel/chassis and PC board mounting and comes with a double closed circuit solder lug. Unitized molded housing protects springs, provides mechanical and electrical reliability, minimizes leakage and provides low capacity between springs. It mounts on minimum 0.625” centers in rows or arrays.

0.25" inside diameter bushing types, metal, or thermoplastic bushings (for insulated mounting)
Mount in panels up to 0.156" thick
Threaded metal bushing 0.276" long
RoHS compliant

Switchcraft 114BX Specs

Materials
Mounting Bushing: Nickel-plated copper alloy
Housing: Molded thermoplastic, UL 94V-0
Springs: Copper alloy
Contacts: Tin-plated integral contacts
Sleeve Terminal: Steel, tin-plated
Hardware: Supplied with one P10001 copper alloy, nickel-plated lock nut and one S10221 steel, nickel-plated washer
Electrical
Contact Resistance: 0.020 ohms maximum (initial), 0.050 ohms maximum (after humidity, durability exposure). Per MIL-STD-202E
Insulation Resistance: 10,000 MOhms minimum (initial), 1,000 MOhms minimum (after humidity)
Dielectric Withstanding Voltage: 500 V, 60 Hz (RMS) AC
Contact Rating: 0.25, 48 VDC make and break, 3 A carry only
Environmental
Thermal Range: -67 to 185°F (-55 to 85°C) (non-operating); -4 to 149°F (-20 to 65°C) (operating)
Thermal Shock: Per MIL-STD 202, method 107
Humidity: Per MIL-STD 202, method 106
Salt Spray: Per MIL-STD 202, method 101
Mechanical
Life: 10,000 insertion/withdrawal cycles, minimum
Insertion/Withdrawal Forces: Nominal plug retention on 2-conductor jack is 0.75 lb (0.34 kg) with 0.5 lb (0.2 kg) minimum.
Nominal plug retention on 3-conductor jack is 2 lb (0.9 kg) with 1.5 lb (0.7 kg) minimum
With double tips, the nominal is 1.5 lb (0.7 kg) and 1 lb (0.5 kg) minimum
Maximum Recommended Mounting Torque: 6"-lb for thermoplastic bushing
Mounting Torque (for Spring Lock PC Terminal): 8"-lb for thermoplastic bushings
Dimensions
1.38 x 0.62" (3.50 x 1.57 cm)
