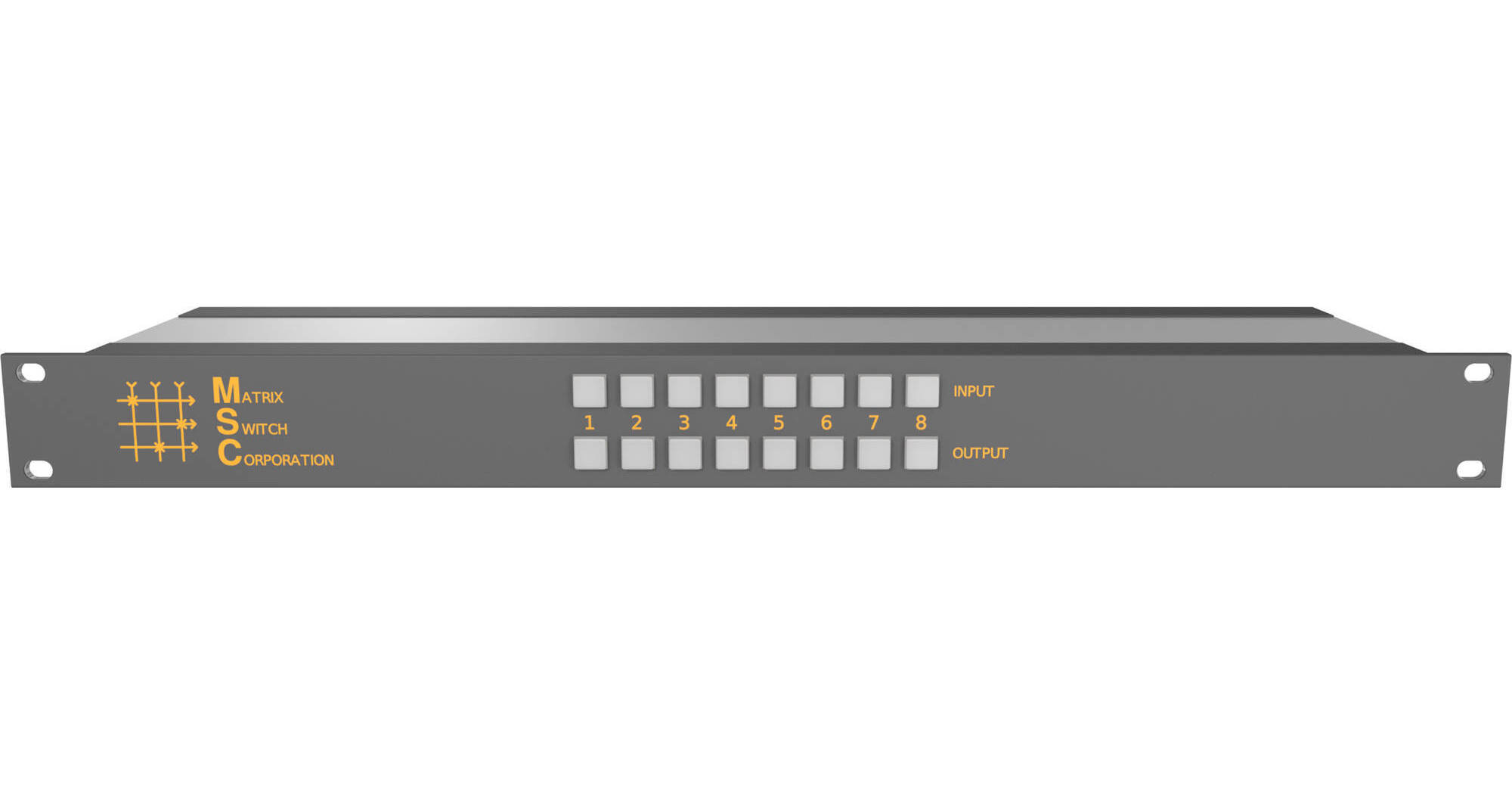

Matrix Switch Compact High Performance 8x8 HD-SDI Digital Video Switcher
No Longer Available
No Store Display
Protect Your Gear
Add a protection plan from $139.99
See Options
Ask an Expert
800-606-6969

Matrix Switch HD88DEL Overview

The Compact High Performance 8x8 HD-SDI Digital Video Switcher from Matrix Switch Corporation is an ideal solution for HD and SDI video environment, and will easily handle any SDI or HD format from 19 MBps to 1.485 GBps, as well as DVB-ASI signals. Each input has automatic cable loss equalization, while each output auto detects standard SMPTE data rates. Standard SMPTE data rates are re-clocked, while the Auto Rater Detect logic switches to bypass for any non-SMPTE data rate.
The switcher features a variety of audio and control panel options, including no audio (video only), AES3 S/PDIF 75 ohm digital audio on BNC I/O, AES3 balanced 110 ohm digital audio, stereo analog audio, no local control panel, built in local control panel and/or Ethernet TCP/IP based remote control panel(s).

Automatic cable compensation up to 1,000 feet
Automatic HD/SDI rate detect and re-clocking
RS232 and Ethernet remote control
Compact size
Optional local control panel
Optional remote control panel

Matrix Switch HD88DEL Specs

HD/SDI Video Input
Data Rate: 143 MBps, 270 MBps, 1.483-1.484 GBps
Data Type: SMPTE 259M, SMPTE 292M, SMPTE 344M, DVB-ASI
Input Cable Equalization: Auto up to 300 m @ 270 MBps
100 m @ 1.485 GBps
Video Level: 800 MV
Impedance: 75 ohms 1%
Connector: BNC
Return Loss: 15 dB @ 1.5 Gbps
AES Digital Audio Inputs
Signal Type: 75 ohms unbalanced or 110 ohms balanced
Connector Type: BNC or multi-pin - 3 pin breakout adapters available
Level: 100 mV to 10 V p-p
CMR: >25 V
Analog Audio Inputs
Signal Type: Balanced Connector Type: D25F with optional breakout adapters
Impedance: >30 kOhms
Level: +8 dBm nominal +24 dBm maximum
CMR: >70dB
HD/SDI Video Output
Connector: BNCLevel: 800 MV Return Loss: 12 dB @ 1.5 GBps
Jitter: <0.2 UI
Impedance: 75 ohms 1%
Vertical Interval Switching: line 6
AES Digital Audio Outputs
Signal Type: 75 ohms unbalanced or 110 ohms balanced
Connector Type: BNC or multi-pin - 3 pin breakout adapters available
Level: 7 V p-p Jitter: <0.25 UI
Analog Audio Output
Signal Type: Balanced
Connector Type: D25F with optional breakout adapters
Impedance: <30 ohms
Level: +8 dBm nominal +24 dBm maximum
Frequency response: 10 Hz - 50 kHz +/- 0.1 dB
S/N: >110 dB 20 Hz to 20 KHz
Environmental
Temperature: 32 to 122°F / 0 to 50°C ambient
Humidity: 10 - 100% non-condensing
Typical Power Consumption
7 VA
Dimensions
1.75 x 19.0 x 5.0" / 4.3 x 48.2 x 12.7 cm
Weight
4.0 lb / 1.8 kg
