OWON Technology HDS-N Series 1-Channel Handheld Digital Storage Oscilloscope (20 MHz)

BH #OWHDS1021MN • MFR #HDS1021M-N
Print

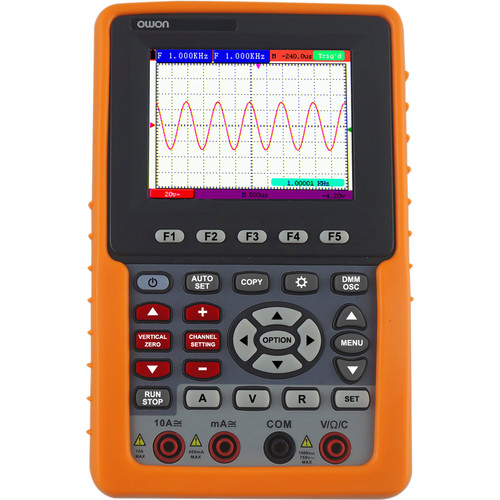

OWON Technology HDS-N Series 1-Channel Handheld Digital Storage Oscilloscope (20 MHz)
Key Features
  • 2-in-1 DSO & Multimeter
  • 20 MHz Bandwidth
  • 500 MS/sec Sample Rate
  • 6K Record Length
Visualize electrical waveforms to test and debug circuits with the HDS-N Series 1-Channel Handheld Digital Storage Oscilloscope from OWON Technology. This 2-in-1 oscilloscope and multimeter offers a bandwidth of 20 MHz, sample rates of 500 MS/sec, and record lengths of 6000 points. The signals are plotted on a 3.7" TFT display.
More Details
Special Order
Expected availability: 2-4 Weeks
No Store Display
$319.00
OR
$54/mo. suggested payments for 6 Mos.§ when you use the Payboo credit card. Learn More
This item cannot be canceled or returned.
Add to Cart
Free Standard Shipping
Protect Your Gear
Add a protection plan from $28.00
See Options
Ask an Expert
800-952-1815

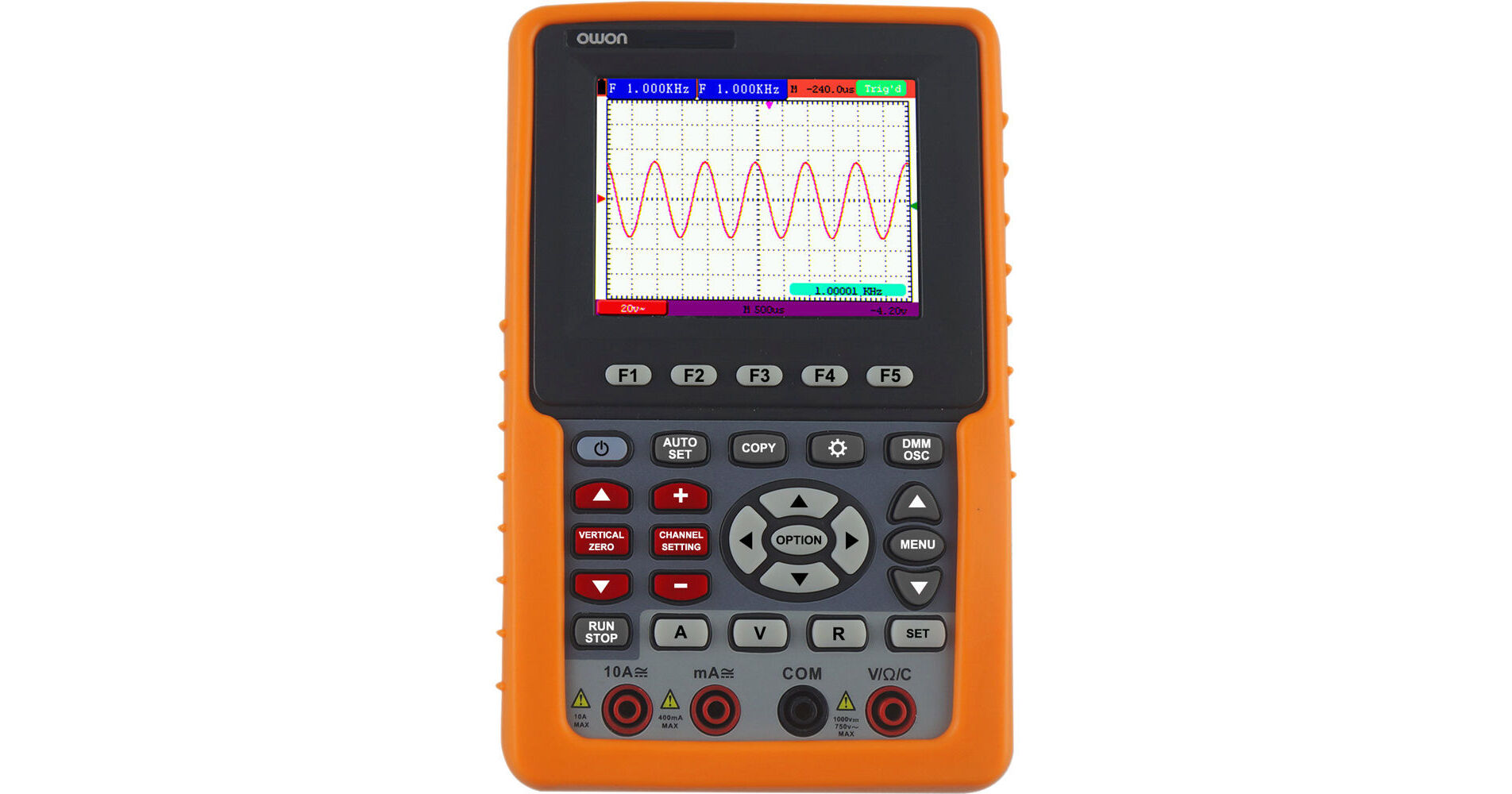

OWON Technology HDS-N Overview

Visualize electrical waveforms to test and debug circuits with the HDS-N Series 1-Channel Handheld Digital Storage Oscilloscope from OWON Technology. This 2-in-1 oscilloscope and multimeter offers a bandwidth of 20 MHz, sample rates of 500 MS/sec, and record lengths of 6000 points. The signals are plotted on a 3.7" TFT display.

Main Features
  • Auto-scale function
  • FFT function
  • 20 automatic group measurement choices
  • Supports USB data transmission
  • Rechargeable Li-ion battery, six-hour runtime
  • Waveform record and replay
  • Multimeter supports SCPI
Applications
  • Design and manufacture
  • Education and training
  • Automobile maintenance and testing

OWON Technology HDS-N Specs

Multimeter Specifications
Full Scale Level
3 3/4 digits (max 4000-count)
Input Impedance
10 MOhms
Diode Current Measurement
0 to 1.5 V
On/Off Test
< 50 (± 30) beeping
Voltage
VDC
400 mV, 4/40/400/1000 V: ±(1% ± 1 digit)
Max Input: 1000 VDC

VAC
4/40/400 V: ±(1% ± 3 digits)
750 V: ±(2% ± 3 digits)
Frequency: 40 to 400 Hz
Max Input: 750 VAC (virtual value)
Current
DC
40/400 mA: ±(1.5% ± 1 digit)
10 A: ±(3% ± 3 digits)

AC
40 mA: ±(1.5% ± 3 digits)
400 mA: ±(2% ± 1 digit)
10 A: ±(5% ± 3 digits)
Impedance
400 Ohms: ±(1% ± 3 digits)
40 kOhms to 4 MOhms: ±(1% ± 1 digit)
40 MOhms: ±(1.5% ± 3 digits)
Capacitance
51.2 nF to 100 uF: ±(3% ± 3 digits)
Performance Specifications
Bandwidth
20 MHz
Sample Rate
500 MS/sec
Scale
Horizontal: 5 ns - 100 sec/div, step by 1-2.5-5
Rise Time
17.5 ns or less
Display
3.7" / 9.4 cm color, TFT display, 640 x 480 pixels
Channel
Single
Input Impedance
1 MOhm ± 2%, in parallel with 18 ± 5 pF
Record Length
6000 points
Interpolation
sin (x)/x
Attenuation
1x, 10x, 100x, 1000x
Coupling
Input: DC, AC, and GND
DC Accuracy
16 or more ±(5% reading + 0.05 div) for △V, average
Vertical Sensitivity
5 mV ~ 5 V/div (at input)
Vertical Resolution
A/D: 8 bits
Input Voltage
Max. 400 V (DC + AC, pk - pk, 1 MOhm input impedance, probe attenuation 10 : 1), Cat II
Triggers
Type: Edge and video
Mode: Auto, Normal, Single
Level: ±6 divisions from screen center
Acquisition Modes
Sample, Peak Detect, Average
Gain Accuracy
±3%
Measurements
Vpp, Vavg, Vrms, freq, period, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A→B
Waveform
Storage: 4 waveforms
Communication Interface
Mini-USB, mini RS-232
Power Supply
100 to 240 VAC, 50/60 Hz
Li-ion Battery
7.4 V
Battery Life
6 hours
Dimensions
4.5 x 7.1 x 1.6" / 11.5 x 18.0 x 4.0 cm
Weight
22.8 oz / 645 g
Packaging Info
Package Weight
3.85 lb
Box Dimensions (LxWxH)
13.6 x 10.2 x 3.3"
