Bon BQM-170LS 17" Quad-Split Broadcast Monitor

BH #BOBQM170LS • MFR #BQM-170LS
Print

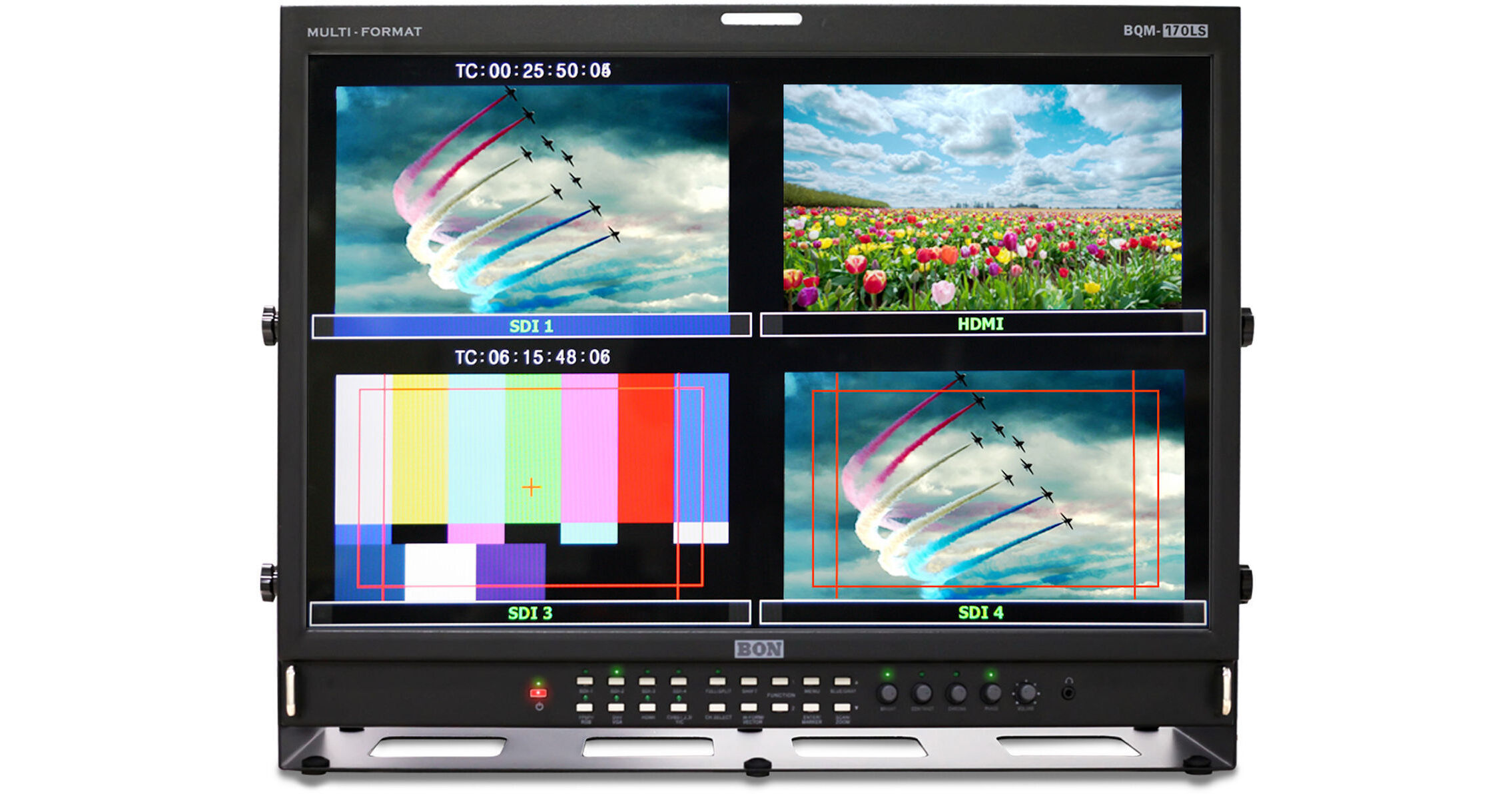

Bon BQM-170LS 17" Quad-Split Broadcast Monitor
No Longer Available
No Store Display
Ask an Expert
866-264-7509

Bon BQM Monitor Overview

The BQM-170LS 17" Quad-Split Broadcast Monitor from Bon supports user-selectable multiple-view layout options, such as four videos, three videos and waveform / vectorscope, two videos and waveform / vectorscope, full screen, and more. It offers a native resolution of 1920 x 1200 with 300 cd/m² brightness and 600:1 contrast ratio.

This monitor accepts HD/SD SDI inputs and can loop them out to SDI as well. It comes with four HD-SDI ports along with HDMI, DVI, Component, Composite (CVBS) ports for various input signal types. It also offers useful video analysis features including waveform, vectorscope, pixel-to-pixel view, etc. Up to 16 channels of audio level can be displayed at the top or bottom of the screen. This 17" monitor can be fit into a 19" broadcast rack.

HD SDI signal reception
16-channel audio level meter
Various preset (4:3, 16:9, 1.85:1, and 2.35:1) and customizable markers
Two assignable function keys
Pixel-to-pixel view
Waveform and vectorscope
Closed caption (CEA 608, 708)
Supports color calibration software (available separately)
Current time clock display

Bon BQM Monitor Specs

Size
17.1" (43.4 cm)
Resolution
1920 x 1200
Display Area (H x V)
14.5 x 9.0" (367.2 x 229.5 mm)
Pixel Pitch
0.191 x 0.191 mm
Color
8-bit, 16,7 M
Viewing Angle (H/V)
130° / 110°
Brightness
300
Contrast Ratio
600:1
Backlight
LED
Input
4 x SDI (HD/SD serial digital, 1.485 G/270 M), BNC jack
3 x Analog (Composite, YC S-Video, Component YPbPr/RGB), BNC jack
1 x DVI-I, 24-pin female with PC-RGB input
1 x PC-RGB (DVI) input (24-pin + 5-pin, DVI + analog jack)
1 x HDMI (with HDCP v.1.1), 19-pin female
Output
4 x SDI active loop-through output, BNC jack
Input Level
Analog Input Level
Composite (CVBS): 1.0 Vpp (with sync) NTSC/PAL

YC (S-Video): Y: 1.0 Vpp; C: 0.286 Vpp

Component (YPbPr): Y: 1.0 Vpp; Pb :0.7 Vpp; Pr :0.7 Vpp

Component (RGB): G: 1.0 Vpp (with Sync); B: 0.7 Vpp; R: 0.7 Vpp

PC-RGB (DVI), Sync: RGB: 0.7 Vpp;

H/V Sync: 4 V ± 1 Vpp
Signal Formats
2K Format: 2048 x 1080 24p/psf, 23.98p/psf

SMPTE 274M/292M: 1920 x 1080i/60,59.94,50; 1920 x 1080p/30,29.97,25,24,23.98,23.98sf

SMPTE 296M: 1280 x 720p/60,59.94,50

SMPTE 260M: 1920 x 1035i/60,59.94

SMPTE 259M, 125M: 720 x 480i/60,59.94

ITU R-BT.656: 720 x 576i/50

Component: 640 x 480, up to 1920 x 1080p

HDMI Digital: Approximately 1920 x 1200 (embedded 2-channel audio with HDCP)

DVI Digital: 640 x 480, up to 1920 x 1200

PC-RGB (DVI) Mode: 640 x 480, up to 1280 x 1024, Maximum: 1600 x 1200
Audio Input/Output
1 x L/R line in, stereo pin jack
1 x L/R line out, stereo pin jack
2 x Speaker output (2 W + 2 W)
Additional Ports
1 x GPI-7 remote port, RJ-45P jack
2 x RS-422/232C, serial interface, RJ-11P jack
1 x LTC input (SMPTE STD timecode signal), BNC jack (optional)
Power Requirements
100 to 230 VAC, 50/60 Hz
Power Consumption
80 W
Operating Temperature
41 to 95°F (0 to 35°C)
Operating Humidity
20 to 80% RH
Dimensions
Without Stand: 16.5 x 12.2 x 4.3" (420.5 x 310.0 x 108.9 mm)
With Stand: 17.9 x 13.0 x 5.5" (455.4 x 329.8 x 140.0 mm)
Weight
Without Stand: 18.7 lb (8.5 kg)
