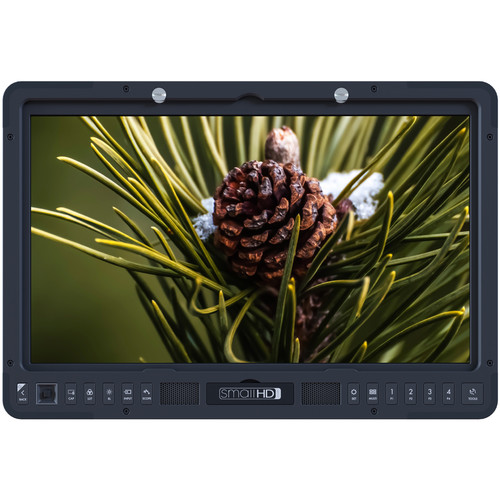

SmallHD 1703 Full HD 17" Studio Production LCD Monitor

BH #SMMON1703L • MFR #MON-1703L
Print

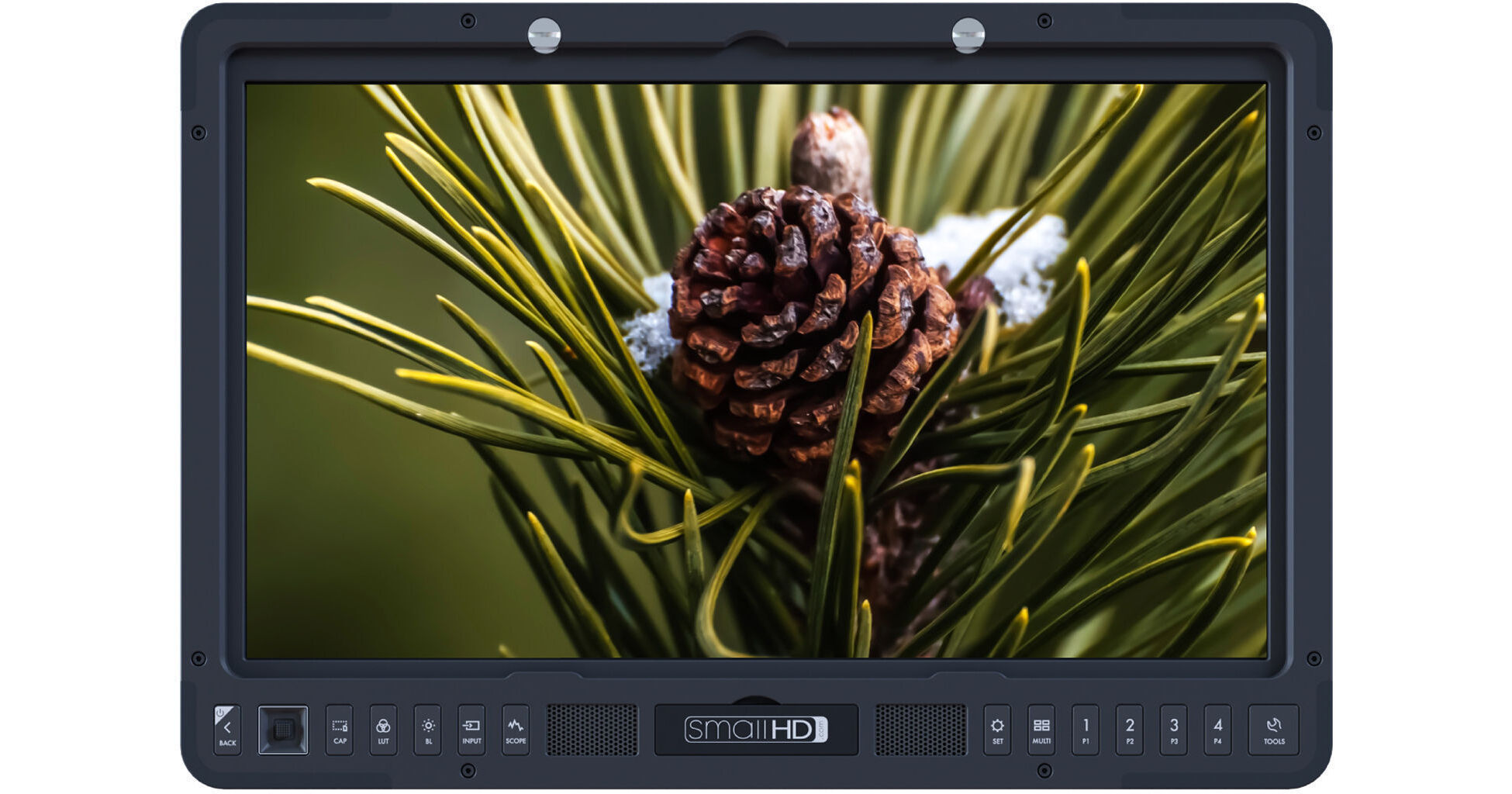

SmallHD 1703 Full HD 17" Studio Production LCD Monitor
Key Features
  • Ultra-Rugged Rapid-Deploy LUT Monitor
  • 1080p Display and Full Software Features
  • Milled from Billet Aluminum
  • Cold Shoe Accessory Rail System
In addition to its 1080p display and comprehensive set of software functions, the 1703 Full HD 17" Studio Production LCD Monitor from SmallHD is milled from billet aluminum for ultra-durability, and offers an accessory rail system on the rear for rapid deployment. This advanced 17" production monitor is built to last and provide efficient ease of use.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

SmallHD MON-1703L Overview

In addition to its 1080p display and comprehensive set of software functions, the 1703 Full HD 17" Studio Production LCD Monitor from SmallHD is milled from billet aluminum for ultra-durability, and offers an accessory rail system on the rear for rapid deployment. This advanced 17" production monitor is built to last and provide efficient ease of use.

The 1703 features dual 3G/HD-SDI and HDMI input and output, 8-bit color depth, and 700:1 contrast ratio. The full list of software tools includes custom LUTs, LUT downstream, and LUT import for a full LUT workflow, as well as anamorphic de-squeeze, waveform, vectorscope, and much more.

The rail system on the rear is comprised of several rows of cold shoe rails that could prove essential in saving you substantial amounts of setup and teardown time. It allows you to slide various gear and accessories, such as wireless transmitters and receivers, right onto the rails.

Providing for further ease of use, the 1703 Studio Production LCD Monitor also allows for hassle-free power via a 4-pin XLR input and LEMO power output. You can conveniently secure a Gold Mount or V-Mount battery plate on the rear and connect a battery using the XLR input. A variety of accessories are available from SmallHD for this monitor, including a screen protector, C-stand with table stand kit, and cheese plate power kits.

Note:
The 1703 Studio Production LCD Monitor is currently not capable of audio output but is expected to via a future firmware release. A headphone jack is already available on the front.
Software Features
Pixel Zoom
2x and 4x zoom with smooth joystick pan
Frame Guides
Preset and customizable aspect ratios
DSLR Scaling
Canon 5D Mark II and 7D
Custom Scale
Underscan only
Anamorphic De-Squeeze
1.33x, 1.5x, 1.66x, 2.0x
Image Rotate (Manual/Automatic)
Automatic
Image Flip (Manual/Automatic)
Automatic
Cross Conversion
HDMI-to-SDI and SDI-to-HDMI
Focus Assist (Colors)
User-adjustable color and intensity
Peaking
User-adjustable intensity
False Color
Rainbow and ARRI-style
Zebra
Dual user-configurable
Waveform
Luma and RGB-style, fully user-customizable with Region of Interest highlighting
Vectorscope
Essential for color grading and correction
RGB Parade
Fully user-customizable
Histogram
Luma and RGB-style
Image Capture
Available with dedicated button
Custom LUTs
Loadable by page or as system-wide color calibration
LUT Downstream
Available on SDI 1 or HDMI out
LUT Import
Via SD card
Image Overlay
With Intensity Slider and Blink setting
Firmware
Compatible with 1700 Series firmware V3.0 and later
Audio Meters
HDMI and SDI up to 8 channels
Primary Control Interface
Joystick navigation, dedicated back button, and additional dedicated buttons for LUT selection, backlight level, input switch, settings menu, multiview, page 14 instant selection, and tools menu

SmallHD MON-1703L Specs

Display
Panel Type
IPS
Screen Size (Diagonal)
17.25" / 44 cm
Resolution
1920 x 1080
Pixel Density
128 PPI
Aspect Ratio
16:9
Active Area (WxH)
15.0 x 8.4" / 38 x 21 cm
Brightness
300 cd/m²
Contrast
700:1
Color Gamut
100% Rec. 709
Color Depth
8-bit
Viewing Angle
Left/Right: 70°
Up: 50°
Down: 70°
Backlight Type
LED, adjustable
Temperature Adaptive Color
No
Input Signal Formats
SDI
3G-SDI
YCC 4:2:2 at 8-bit
1080p 60/59.94/50
1080i 120/119.88/100

HD-SDI
YCC 4:2:2 at 10-bit
1080p 30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98

SD-SDI
Not supported
HDMI
Supports YCC 4:2:2 at 8-bit, 8/10/12-bit color in RGB, and YCC 4:4:4:

1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 120/119.88/100/60/59.94/50
720p 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
480p 120/119.88/100/60/59.94/100/50
Audio
HDMI and SDI monitor through speakers in front bezel, or through headphone jack metering of up to eight channels
Output Signal Formats
SDI
3G-SDI
YCC 4:2:2
1080p 60/59.94/50/
1080i 120/119.88

HD-SDI
YCC 4:2:2, all at 8-bit
1080p 30/29.97/25/24/23.98
1080PsF 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50/30/29.97/25/24/23.98

SD-SDI
Not supported
HDMI
Supports YCC 4:2:2 at 8-bit, and RGB and YCC 4:4:4 at 8-bit:

1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 120/119.88/100/60/59.94/50
720p 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p 100/50
576i 100/50
480p 120/119.88/100/60/59.94
480i 120/119.88/60/59.94
Audio
No audio output, but is expected at a later firmware release
Interface / Ports
SDI
2 x 3G/HD-SDI inputs
2 x 3G/HD-SDI outputs
HDMI
1 x HDMI input
1 x HDMI output
Audio
1 x Headphone jack on front of monitor
USB
1 x USB 2.0 on front
2 x USB 2.0 on rear
Controls
Primary Control Interface
Joystick navigation, dedicated back button, and additional dedicated buttons for LUT selection, backlight level, input switch, settings menu, multiview, page 14 instant selection, and tools menu
Recording
Dedicated capture button on front bezel
Data Interface
Storage
SD card for LUTs, captured images, image overlays, and firmware upgrades
Power
Connectors
1 x 4-pin XLR input, 12-34 VDC
1 x LEMO output, 12 VDC at 4 A maximum
Voltage
DC Operating Voltage Range: 12 to 34 VDC
AC Operating Voltage Range: 90 to 240 VAC
Consumption
9 to 15 W
Supported Batteries
Gold Mount / V-Mount via 4-pin XLR connector
Environmental
Compliance
FCC, IC, CE, RoHS
Operating Temperature
32 to 100°F / 0 to 38°C
Storage Temperature
4 to 120°F / -16 to 49°C
General
Mount Type
Multiple 1/4"-20 and 3/8"-16 threads on top/bottom/left/right
Cold shoe-style rails on rear of monitor
Screen Protection
Acrylic screen protector (sold separately)
Construction
Milled from billet aluminum
Dimensions
11.5 x 17.5 x 2.5" / 29.2 x 44.5 x 6.4 cm
Weight
12 lb / 5.5 kg
Packaging Info
Package Weight
17.3 lb
Box Dimensions (LxWxH)
24 x 21.4 x 9.6"
