Dahua Technology 7" Integrated Mount Touchscreen IP/Analog Tester

BH #DAPFM906 • MFR #PFM906
Print

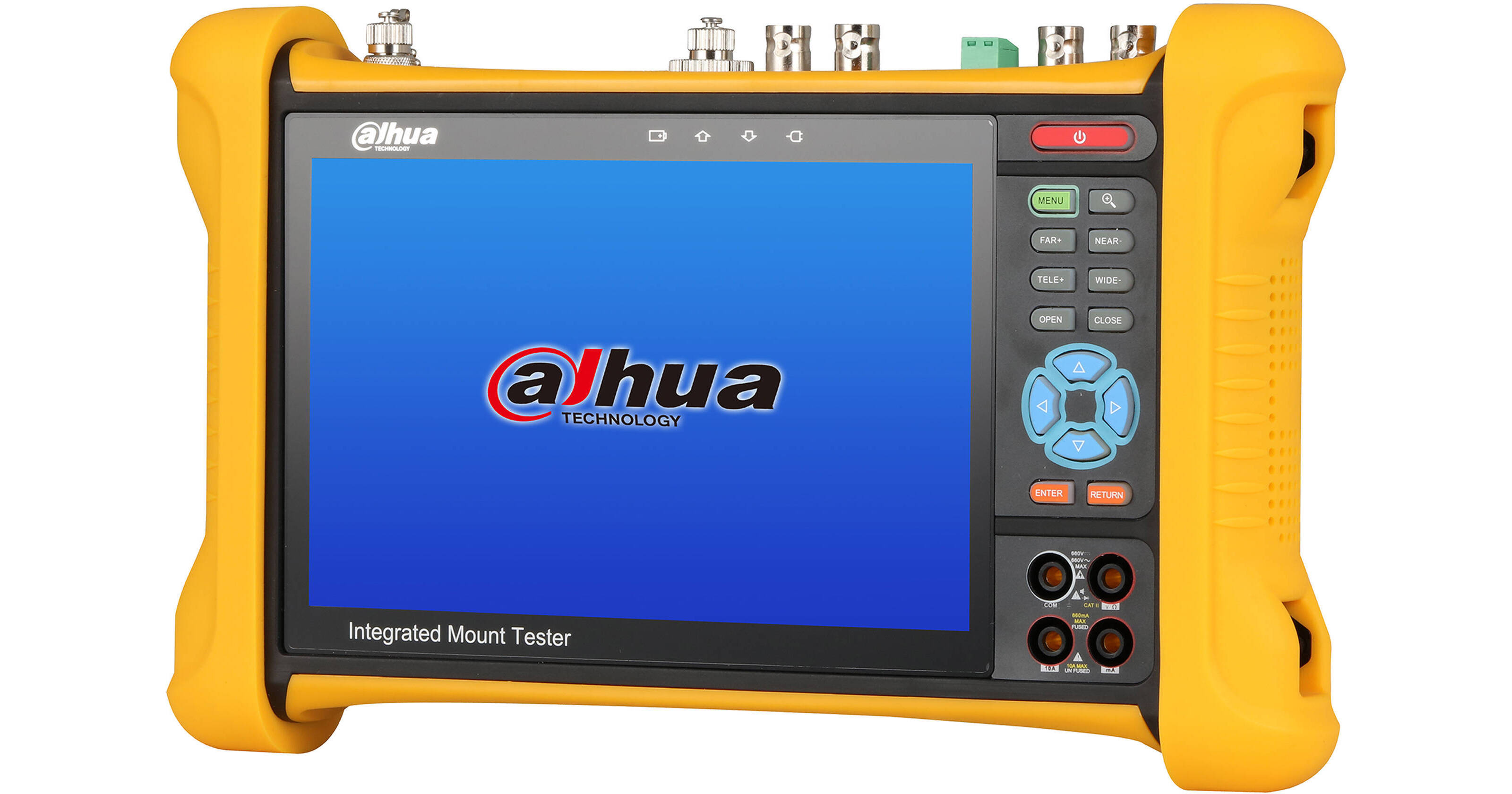

Dahua Technology 7" Integrated Mount Touchscreen IP/Analog Tester
No Longer Available
No Store Display
Ask an Expert
866-842-7675

Dahua Technology PFM906 Overview

The 7" Integrated Mount Touchscreen IP/Analog Tester from Dahua Technology features an IPS HD retina capacitive touchscreen that supports resolutions up to 1920 x 1200. It supports IP, HD-CVI/AHD/TVI/CVBS, SDI, and HDMI input/output. The built-in lithium-ion polymer battery lasts for 10 hours under normal use. The tester supports optical power meter test and digital multi-meter functions.

7" IPS HD retina capacitive touchscreen
Supplies PoE, 12 VDC 2A, and USB 5V 2A power outputs
Support TDR (network cable/coaxial cable), UTP cable tester and hunting, and optical cable VFL

Dahua Technology PFM906 Specs

Ports
Network Port
3 x 10/100M RJ45 (LAN/PSE, PD, UTP/Scan)
Number of BNC Ports
2 x video inputs (SDI, HD-CVI/TVI/AHD/CVBS)
1 x video output
Data Ports
1 x TDR
1 x OPM
1 x VLS
1 x RS-485
1 x 12 VDC input (charge)
1 x HDMI input
1 x HDMI output
1 x audio input
1 x audio output
1 x microSD
IP Specifications
IP Camera Type
ONVIF (with PTZ control)
Tools
Test Tool: Design for Dahua camera image test, modify IP, user name and password parameters, and more
IP Camera Test
Support rapid ONVIF, auto-scan the whole network segment IP, auto log in to display the camera image, auto-modify the tester's IP to the same network segment with the scanned camera's IP, display image from the 4K camera by main stream, full screen preview and 5x digital zoom, snapshot, record video, photo view, and video play back
Analog Video Composite
Format
HD-CVI/AHD/TVI/CVBS
Test Applications
HD-CVI Camera Test:
1-channel BNC input
Support 1280 x 720 at 25, 30, 50, 60 fps / 1920 x 1080 at 25, 30 fps / 2560 x 1440 at fps, 30 fps

TVI Camera Test:
1-channel BNC input
Supports 1280 x 720 at 25, 30, 50, 60 fps / 1920 x 1080 at 25, 30, 50, 60 fps / 2048 x 1536 at 18 fps

AHD Camera Test:
1-channel BNC input
Supports 1280 x 720 at 25, 30 fps / 1920 x 1080 at 25, 30 fps / 2560 x 1440 at 15, 25, 30 fps

CVBS Camera Test:
1-channel BNC input, 1-channel BNC output
Support PAL/NTSC format (auto adapt)

Camera Test :
Real time video, coaxial PTZ control, RS-485 control, audio test, full screen preview and 5x digital zoom, snapshot, record video, photo view and video playback
HD/SDI Video Input
SDI Input & Output
SDI Video Test:
1-channel BNC input
Support resolutions 720p at 60 fps, 1080p at 60 fps, 1080i at 60 fps
IPC tester's HDMI output port can be used as SDI to HDMI converter, output HD/SDI image to HD TV monitor
HDMI Input/Output Connector
HDMI input
Supports 720 x 480, 720 x 576, 1280 x 720, 1920 x 1080, 1024 x 768, 1280 x 1024, 1280 x 900, 1440 x 900
HDMI output
Support 1920 x 1080
PTZ Control
Protocol
Compatible with more than 30 protocols such as Pelco-D/P, Samsung, and Panasonic
Baud Rate
600-115,200 bps
Cable
Network Cables
TDR, cable search, UTP cable tester
Coaxial Cable Capability
TDR, analog video generator
Optical
Optical Cable: VFL (visual fault locator)
Tools & Utilities
Network
IP address scan, ping test, bandwidth test, port flashing, DHCP server, and so on
Digital
DMM (Digital Multi-Meter):
AC/DC Voltage, AC/DC current, Resistance, Capacitance, Data hold, Relative measurement, Continuity testing
Testing Speed: 3 times / seconds
Data Range: -6600 to 6600
Optical
OPM (Optical Power Meter):
Calibrated Wavelength: 850/1300/1310/1490/1550/1625 nm
Power Range: -70 to 10 dBm
Data Monitor
Captures and analyzes the command data from controlling device via RS-485, can send hexadecimal
Flashlight
Press the LED On/Off button to use the LED flashlight
PoE
Measures PoE switch voltage and displays pin configuration
Audio Recorder
Save audio message and support to review
Notes
Notepad: Used to record the important testing results
Tools
Calculator tool with calculating function
System
Screen Type
Capacitive touchscreen with retina display
Screen Size
7" (17.8 cm)
Resolution
1920 x 1200
Wi-Fi
Built-in 2.4G Wi-Fi module with maximum speed 150M
Allows it to receive a wireless network and view IP cameras
Flashlight
LED Flashlight: 1 x 35-lumen LED light
Storage Capacity
Build-in 8GB
Supports external SD card up to 32 GB
Languages Supported
English, Chinese, Korean, Russian, Italian, Polish, Spanish, French, Japanese
Auto Power Off
1 to 30 minutes
Themes
Self-define icons, desktop and application interface background, modify interface sliding effect
Upgrades
Local updates via SD card and online updates over the internet
Power
Charging Voltage
12 VDC, 2 A
Battery Type
7.4 V lithium-ion polymer battery
Battery Capacity
5000 mAh, 37 Wh
Battery Life
Up to 10 hours normal use after charging for 5-6 hours
PoE Power Output
48 VDC PoE+ power output (maximum)
Power Output
Maximum 12 VDC, 2 A output
USB 5V Power Output: Maximum 5 VDC 2 A output
General
Working Temperature
14 to 131°F (-10 to 55°C)
Humidity
30 to 90%
Casing Material
Plastics
Certifications
CE/FCC
Dimensions
10.6 x 6.3 x 1.8" (270 x 160 x 46 mm)
Weight
2.1 lb (0.95 kg)
