Prism Sound Atlas-HDX Rack-Mountable Audio Interface for Pro Tools HDX Systems

BH #PRATLASHDX • MFR #ATLAS-HDX
Print
Prism Sound Atlas-HDX Rack-Mountable Audio Interface for Pro Tools HDX Systems
Key Features
  • 2 RU Interface for HDX & HD Native
  • Automatic Emulation of Avid HD I/O
  • Up to 24-Bit / 192 kHz Resolution
  • 8 x XLR-1/4" Inputs with Phantom Power

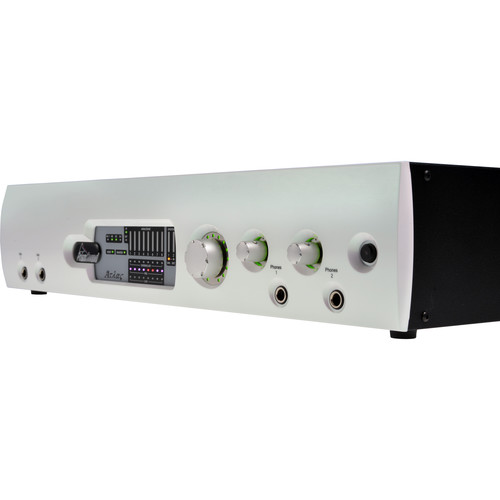

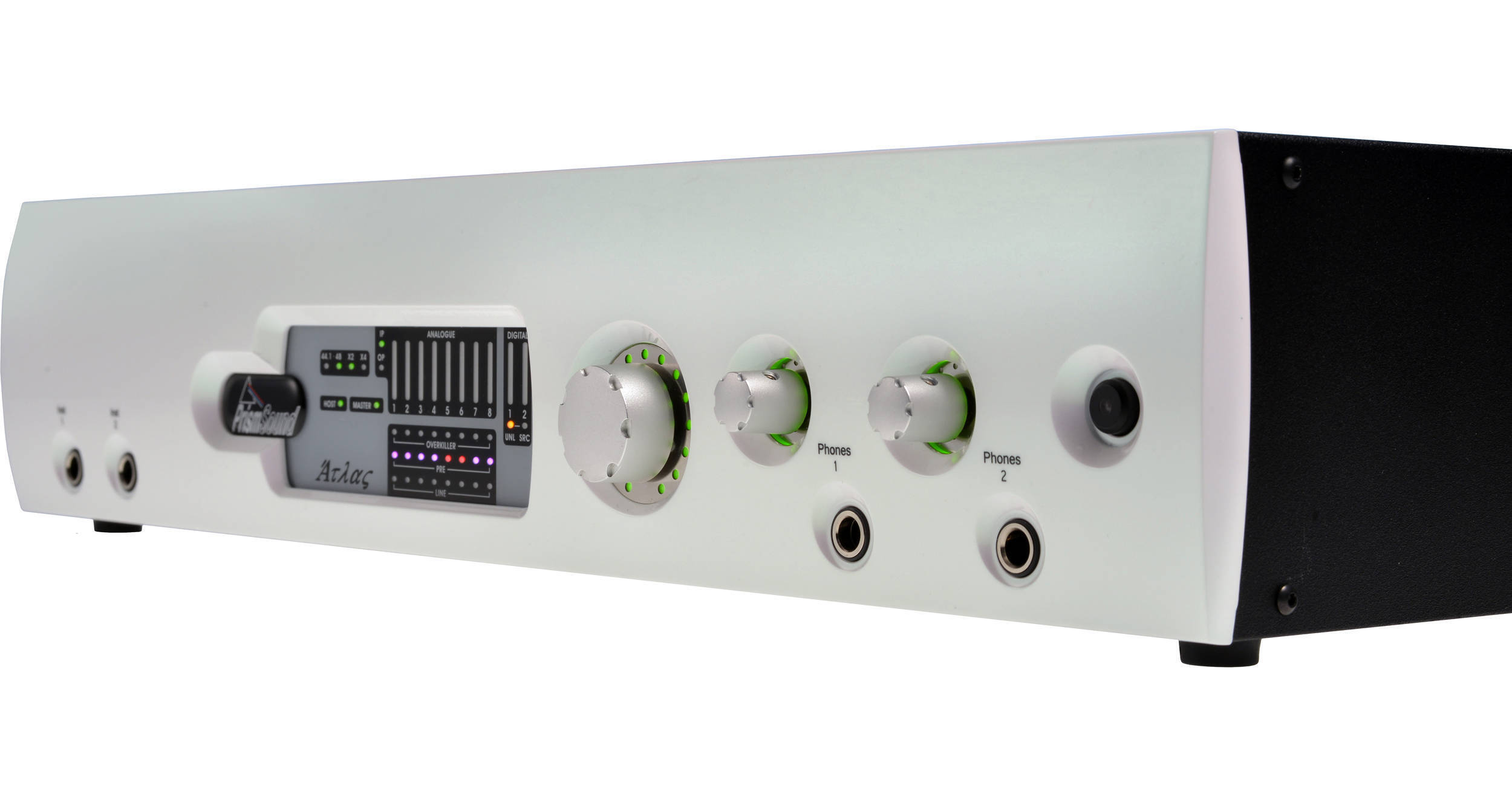

The Prism Sound Atlas-HDX is a 2 RU rack-mountable audio interface with an MDIO-PTHDX Pro Tools HD interface card. Offering premium sonic performance, flexible I/O, and convenient integration for musicians, songwriters, singers, and audio engineers using Pro Tools HDX or HD Native systems, it combines legendary Prism Sound quality with the easy setup of Avid audio hardware. Connect the Atlas-HDX to a DigiLink Mini port on your Pro Tools card, then customize the Atlas' settings directly from your Pro Tools session. Alternatively, the Atlas-HDX may be used as a Class-Compliant USB 2.0 audio interface when the MDIO-PTHDX card is not in use.
More Details
No Longer Available
No Store Display
Ask an Expert
866-842-7675
Kit Contains:

The Prism Sound Atlas-HDX is a 2 RU rack-mountable audio interface with an MDIO-PTHDX Pro Tools HD interface card. Offering premium sonic performance, flexible I/O, and convenient integration for musicians, songwriters, singers, and audio engineers using Pro Tools HDX or HD Native systems, it combines legendary Prism Sound quality with the easy setup of Avid audio hardware. Connect the Atlas-HDX to a DigiLink Mini port on your Pro Tools card, then customize the Atlas' settings directly from your Pro Tools session. Alternatively, the Atlas-HDX may be used as a Class-Compliant USB 2.0 audio interface when the MDIO-PTHDX card is not in use.

Prism Sound Atlas Rack-Mountable USB Audio Interface

The Prism Sound Atlas is a 2 RU rack-mountable USB audio interface designed to deliver reliable precision, high-resolution, and multichannel audio I/O for musicians, vocalists, songwriters, and audio engineers in home, project, commercial, and mobile studios. Its stable clock allows operation at up to 24-bit / 192 kHz resolution with high jitter rejection. With latency as low as 0.08 ms, it is well suited for recording, overdubbing, and even send-and-return routing.

Line or microphone sources can be connected via the eight XLR-1/4" combo inputs, while two front-panel 1/4" jacks accommodate instruments such as guitars or synthesizers. Phantom power is selectable as are the input pads and built-in limiters. The eight 1/4" line outputs are ideal for connection to speakers and power amps, while the front-panel 1/4" jacks offer dedicated level and mix controls for independent headphone monitoring. Additionally, digital connectivity includes RCA coaxial for S/PDIF or AES3, TOSLINK optical for S/PDIF or ADAT, and BNC for word clock. An RJ45 port is present for future AVB integration.

The Atlas is compatible with Mac OS X and Windows systems via its class-compliant USB 2.0 connectivity. An IEC power cable, USB cable, rackmount ears, and XLR to RCA adapters are included.

Signal Path
Eight analog input channels and up to ten digital input channels are available as inputs for your audio workstation software through the host computer's audio driver. Similarly, eight analog output channels, up to ten digital output channels, and stereo headphone outputs can play 20 different channels. For low-latency monitoring to headphone or main outputs, each output pair can optionally be driven from the built-in DSP mixer with an individual local mix of any selection of inputs through the controller applet. All analog inputs are electronically balanced with automatic unbalanced operation. Analog outputs are electronically balanced with bootstrapping (level is maintained if one leg is grounded).
Verifile Technology
Verifile is a radical new proprietary technology exclusive to Prism Sound, which allows computer audio streams and recorded files to be quickly checked for a wide range of clicks, errors and dropouts, without any compromise in the audio content or any additional metadata. Verifile is a fragile steganographic process, which embeds derivative data within the dither of the ADC, containing a rolling hash code which allows the audio data to be thoroughly and continuously checked. Recovery of this data from the audio stream or file enables verification that the stream or file contains exactly the audio data that was produced by the ADC at the time of recording. Any incorrect samples, missing or repeated audio segments, or any other audio errors in the resulting files can be reliably detected, providing complete confidence that the recorded file is error-free. Processing such as EQ, level changes, additional redithering, or sample-rate conversion done to a Verifile recording will result in a failure to decode the rolling hash code in the dither and hence indicate that the recording is not an original.
Reliable Quality
Prism Sound uses precise software calibration techniques in its converters to avoid the unreliability of pots and tweaks. Minimizing noise, interference, and hum was a priority in the design. All the analog circuits have galvanic isolation, while the unit's electronically balanced I/O allows it to handle common mode interference sources and trouble-free connection to unbalanced equipment.
USB 2.0 Compatibility
The Atlas is easy to connect to your computer and to your outboard gear. For both Mac and Windows platforms, there is a controller application to configure the unit and control its built-in mixer and various functions. Aside from the monitor and headphone level controls, everything else is operated solely from the Atlas controller application. The controller software opens on-screen as a separate panel alongside your existing editing software. Since the Atlas is UAC2 compliant, it will also work in recent Linux and Android builds, although no control panel is provided.
Flexible I/O
The Atlas offers eight high-grade mic preamps with software-controlled gain in 1 dB steps, individually switchable phantom power, 20 dB pads, and low noise and distortion. The XLR-1/4" combo jacks support both microphone and line input, with digitally-controlled mic gain in excess of 60 dB. Two front-panel 1/4" inputs also support direct-injection (DI) instrument connections. RIAA equalization can be selected in the controller applet on channels one and two so that turntables can be connected for archiving or sampling applications. By selecting the input type (Mic or DI), low- or high-impedance cartridges can be loaded with suitable termination impedances. All analog inputs have individually-selectable Prism Sound Overkiller peak limiters built in—just as on the ADA-8XR and Orpheus—to catch those fast transients. The Overkiller threshold automatically follows the operating line-level selection (+4 dBu or -10 dBV). Overkillers are ideal for percussive sounds, particularly drums, where headroom can be a problem.

The coaxial digital I/O can be switched in the Atlas controller applet between S/PDIF and AES3 formats. This control changes the operating voltage and the channel status format, and is complemented by two supplied adapters that provide external XLR connections for AES3 devices. The optical digital I/O ports on Atlas can also be configured as ADAT I/O. Other connections include word clock sync I/O on BNC connectors.
Low-Latency Digital Mixer
A built-in digital mixer can be configured from the host computer to provide foldback feeds to performers, each with their own stereo mix of workstation playback and any of the inputs. This provides console quality local mixing—each output has its own independent mixer, with channel strips for all inputs and workstation feeds, complete with fader, pan/balance pot, solo and mute buttons, and full metering. Strips can be stereo or mono, and the mixes are dithered with filtered coefficients, just as in a top-end digital mixer. With the Prism Sound DSP mixer, the latency is as low as 0.08 ms at a 192 kHz sampling rate.
Sample Rate Conversion & Noise Shaping
Prism Sound's renowned synchronous sample-rate conversion allows outputting to various external devices at other sampling rates. The sample rate converter can be used at the outputs as well as the inputs, and can deal with unsynchronised or wrong-rate digital inputs. The Atlas can also generate, say, a live 44.1 kHz output from a 96 kHz session. The digital output is equipped with all four Prism Sound SNS noise-shaping curves, allowing you to reduce to 16-bits for CD at mastering-house quality.
Standalone Operation
Atlas can also operate in a standalone mode using its ADAT or coaxial digital I/O connections. Once configured via the Atlas controller applet, the unit can be disconnected from the host computer and used independently. Atlas will retain its settings when powered down; and even if it is switched off, Atlas can be repowered, and standalone operation can continue with the automatically stored settings.
Comprehensive Indicators
With ten multi-segment bargraphs with overload indication (assignable to inputs or outputs), Overkiller LEDs, digital input lock-status indication, sample rate conversion and host/master sync LEDs, and illuminated volume controls, the Atlas makes viewing interface activity easy.
Expansion Slot
The expansion slot supports Prism Sound's MDIO expansion cards, which provide alternative host connections. The host is usually a computer, and the Atlas interface provides a means of connection between the host and the external analog and digital audio I/O ports. Without an MDIO expansion card fitted, the host connection would always default to the USB connection. The MDIO expansion slot provides an alternative host connection. It does not necessarily disable the USB port, but in the case of the Pro Tools interface MDIO-PTHDX, the USB port is switched off when the Pro Tools interface is to be used.
UPC: 669014270863
Prism Sound MDIO-PTHDX Pro Tools HD Interface Card for Titan & Atlas Audio Interfaces

The Prism Sound MDIO-PTHDX is a Pro Tools HD interface card designed to provide direct connectivity between a Titan or Atlas audio interface and a Pro Tools HDX or HD Native system. Ideal for small- or large-scale installations in studios or portable rigs, it features two DigiLink Mini connectors and supports daisy-chaining up to four Titan or Atlas interfaces per host DigiLink Mini port. By automatically emulating an Avid HD I/O, the MDIO-PTHDX enables smooth, convenient integration with your Pro Tools software and powerful configurability from the host session.

Two DigiLink Mini ports (primary and expansion) allow direct connectivity with your Pro Tools HDX or HD Native system
Daisy-chain up to four Titan or Atlas units for up to 32 analog input and output channels per port on your HDX or HD Native card
Automatic emulation of Avid HD I/O interfaces provides seamless software integration and convenient host control of interface settings
Prism Sound interface settings such as input sensitivity, phantom power, pad, polarity, high-pass filter, Overkiller, gain, and more are configurable via Pro Tools software and save/recall with the Pro Tools session
UPC: 669014270917

Prism Sound ATLAS Specs

Key Specs
Channels of I/O
8 Input / 8 Output
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
8
Analog Audio I/O
8x Combo XLR-1/4" TRS Mic/Line Input
2x 1/4" TS Hi-Z Input
8x 1/4" TRS Line Output
2x 1/4" TRS Headphone Output
Digital Audio I/O
TOSLINK Optical ADAT / S/PDIF Input
RCA Coaxial AES3 / S/PDIF Input
TOSLINK Optical ADAT / S/PDIF Output
RCA Coaxial AES3 / S/PDIF Output
Host Connection
1x USB-B
Power Requirements
AC/DC Power Adapter (Included)
General
Display
1x Color
Channels of I/O
8 Input / 8 Output
Built-In DSP
No
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
8
Built-In Microphone
No
Signal Processing
Pad
Mic:
-20 dB (Switchable per Channel)
Hi-Z:
-18 dB
Gain/Trim Range
Mic Inputs:
+10 dB to +65 dB (in 1 dB Steps)
Hi-Z Inputs:
+10 dB to +65 dB (in 1 dB Steps)
High-Pass Filter
Line Input:
80 Hz, 12 dB/Octave (-3 dB, on 4 Channels)
Connectivity
Analog Audio I/O
8x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
2x 1/4" TS Unbalanced Hi-Z Input
8x 1/4" TRS Balanced/Unbalanced Line Output
2x 1/4" TRS Unbalanced Headphone Output
Phantom Power
48 V, Selectable On/Off
Digital Audio I/O
1x TOSLINK Optical ADAT / S/PDIF Input
1x RCA Coaxial AES3 / S/PDIF Input
1x TOSLINK Optical ADAT / S/PDIF Output
1x RCA Coaxial AES3 / S/PDIF Output
Host Connection / USB
1x USB-B
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
1x BNC Word Clock Input
1x BNC Word Clock Output
Network I/O
1x RJ45 AVB
MIDI I/O
1x DIN 5-Pin Input
1x DIN 5-Pin Output
Expansion Slots
1x Digital I/O Slot
Wireless
No
Performance
Impedance
Outputs:
100 Ohms (Balanced)
50 Ohms (Unbalanced)
Mic Inputs:
5.5 Kilohms
Line Inputs:
14.5 Kilohms
Hi-Z Inputs:
1 Megohm
BNC Word Clock :
75 Ohms
Dynamic Range
Line Inputs:
116 dB (-60 dBFS)
Analog Outputs:
115 dB (-60 dBFS)
THD
Line Inputs:
-117 dB / 0.00014% (at -0.1 dBFS)
Mic Inputs:
-116 dB / 0.00016% (+10 dB Gain, at -0.1 dBFS)
-110 dB / 0.00032% (+40 dB Gain, at -0.1 dBFS)
Analog Outputs:
-107 dB / 0.00045% (at -1 dBFS)
THD+N
Line Inputs:
-111 dB / 0.00028% (at -0.1 dBFS)
Mic Inputs:
-108 dB / 0.0004% (+10 dB Gain, at -0.1 dBFS)
Analog Outputs:
-106 dB / 0.0005% (at -0.1 dBFS)
EIN
Mic Inputs:
-128.5 dBu (0-Ohm Source, +30 dB Gain)
-126.3 dBu (150-Ohm Source, +30 dB Gain)
-130.9 dBu (0-Ohm Source, +40 dB Gain)
-127.6 dBu (150-Ohm Source, +40 dB Gain)
-131.2 dBu (0-Ohm Source, +50 dB Gain)
-127.7 dBu (150-Ohm Source, +50 dB Gain)
-131.4 dBu (0-Ohm Source, +60 dB Gain)
-127.8 dBu (150-Ohm Source, +60 dB Gain)
Digital Audio
Sample Rates
Up to 192 kHz
Sample Rate Conversion
On S/PDIF I/O (Any Sample Rate)
Bit Depths
24-Bit (A/D Conversion)
16 / 24-Bit (D/A Conversion)
Latency
0.57 ms at 44.1 kHz
0.52 ms at 48 kHz
0.2 ms at 88.2 kHz
0.18 ms at 96 kHz
0.09 ms at 176.4 kHz
0.08 ms at 192 kHz
Sync Sources
ADAT, Internal, S/PDIF, Word Clock
Clocking
Word Clock:
Accuracy: ±50 ppm
Jitter Suppression: > 60 dB (above 100 Hz)
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
macOS 10.4 or Later / Windows 7 or Later
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
90 to 250 VAC, 50 / 60 Hz
AC/DC Power Adapter
90 to 250 VAC (Included)
Power Consumption
35 W
Physical
Rackmount Size
2 U (with Included Hardware)
Operating Conditions
32 to 95°F / 0 to 35°C up to 85% Humidity
Dimensions
17.3 x 11.4 x 3.7" / 440 x 290 x 95 mm (with Feet)
19 x 11.4 x 3.5" / 483 x 290 x 88 mm (with Rack Ears)
Weight
11.0 lb / 5.0 kg
Packaging Info
Package Weight
14.295 lb
Box Dimensions (LxWxH)
20.6 x 14.9 x 9.5"
