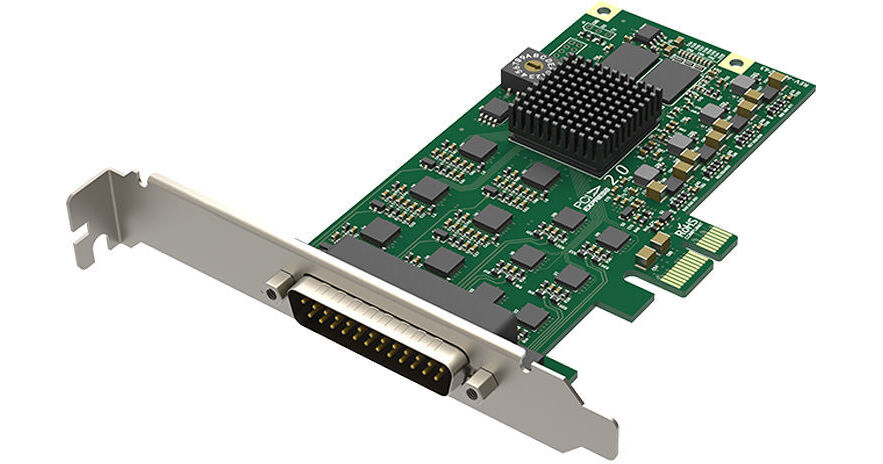

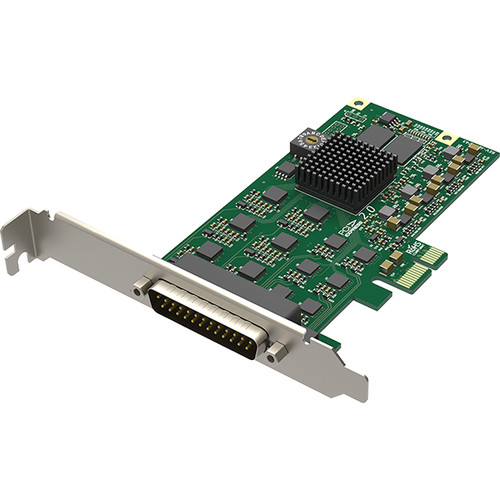

Capture up to six channels of composite A/V with the low-profile 6-Channel Pro Capture Hexa CVBS Capture Card from Magewell. This PCI Express x1 capture card is compatible with composite video formats up to 720 x 576. It is equipped with a 25-pin Sub D port for connecting the included breakout cable.
The 6-Channel Pro Capture Hexa CVBS Capture Card is compatible with Windows and Linux systems. Multiple color spaces in 8-bit formats are supported. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11250 cards can be used and numbered in one system.
Composite-Specific Features
- Support for NTSC, PAL, and SECAM standards
- Auto detection of video input standard
Video Capture Format Support
- Image-capture resolutions up to 720 x 576 pixels
- Capture frame rates up to 30 fps
- 4:2:0 8-bit capture formats: NV12, I420, YV12
- 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- Additional capture formats are supported via Capture SDK for DirectKS
Video Processing Features
- Two video processing pipelines with ~180 MP/s processing bandwidth for each one
- Video cropping and scaling
- Video de-interlacing:
Weave
Blend top & bottom field
Top field only
Bottom field only - Video aspect-ratio conversion:
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect-ratio conversion modes: Ignore (Anamorphic), Cropping or Padding
(Letterbox or Pillarbox) - Video color-format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Supports RGB, YCbCr 601, YCbCr 709 color formats
Supports limited or full quantization range
Supports limited, full & 'extended gamut' saturation range - Video frame-rate conversion
- Video OSD composition:
Supports PNG OSD image (up to 720 x 576)
Supports dynamic loading of RGBA OSD image via SDK
