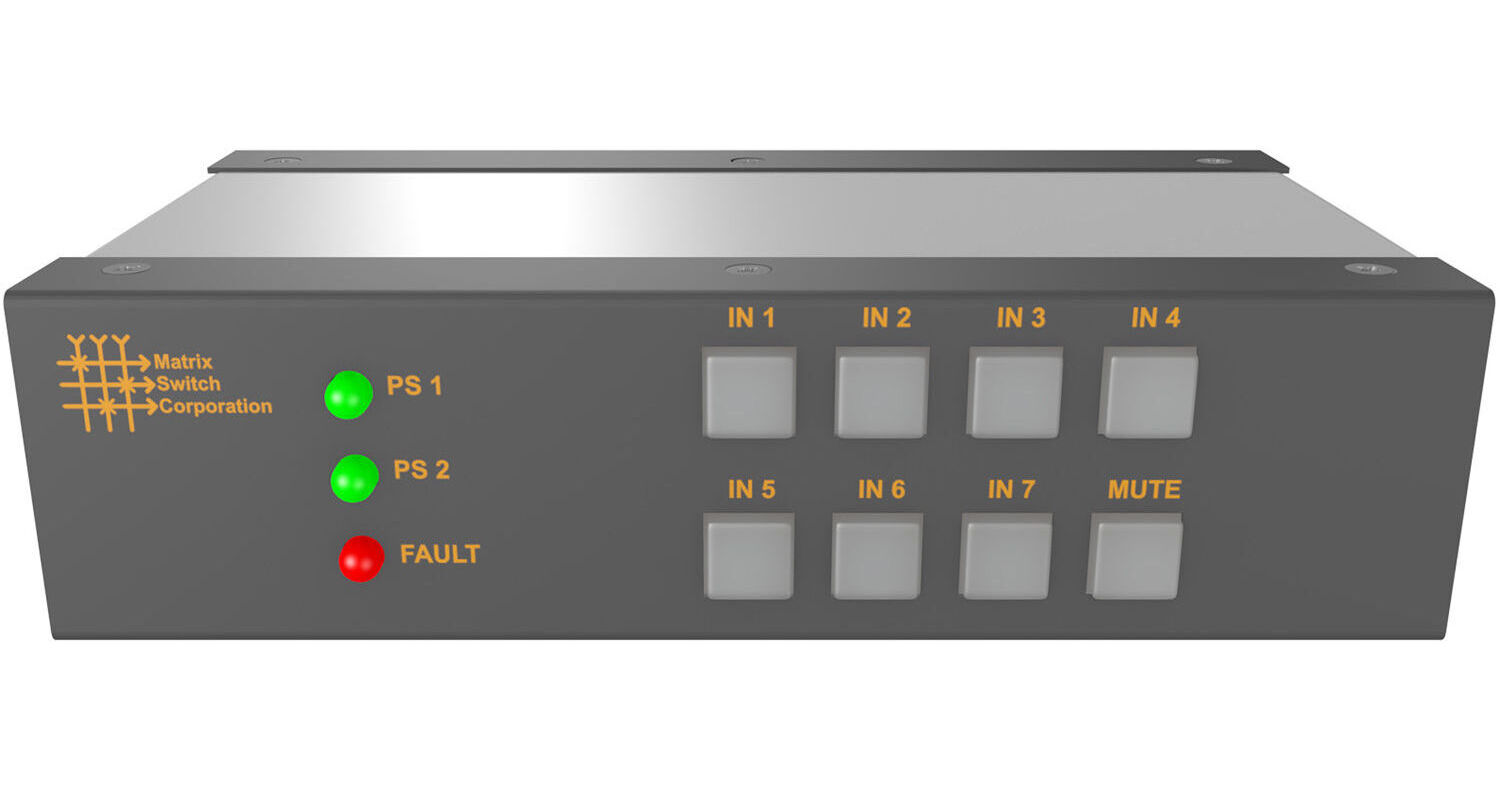

Matrix Switch 7 x 1 3G-SDI Video Router with Button Panel
Key Features
  • 7 BNC Inputs
  • One BNC Output
  • 20 Mbit/s to 3 Gbit/s Automatic Bypass
  • Output Can Be Muted
The 7 x 1 3G-SDI Video Router from Matrix Switch features seven BNC inputs and one a BNC output and supports reclocking of standard 3G/HD/SD-SDI rates. It features an automatic bypass between 20 Mbit/s to 3 Gbit/s. Switch on vertical sync is provided with the sync reference input and pass-through connector. It provides support for Tri-level sync and NTSC/PAL black burst signals.
More Details
No Longer Available
No Store Display
Protect Your Gear
Add a protection plan from $64.99
See Options
Ask an Expert
800-606-6969

Matrix Switch TXD71L Overview

The 7 x 1 3G-SDI Video Router from Matrix Switch features seven BNC inputs and one a BNC output and supports reclocking of standard 3G/HD/SD-SDI rates. It features an automatic bypass between 20 Mbit/s to 3 Gbit/s. Switch on vertical sync is provided with the sync reference input and pass-through connector. It provides support for Tri-level sync and NTSC/PAL black burst signals.

This router provides several options for control and system integration. The built-in web page interface offers control and configuration using a PC or mobile device (Interactive Demo). In addition to the MASCOT protocol, there is also support for select 3rd party protocols. Additional control interfaces on this router include: USB, RS-485, RS-232, and TCP/IP over the Ethernet interface. Remote panels (available separately) can be used with this router for remote control over TCP/IP. The built-in button panel provides an additional interface for directly changing the matrix routing state.

Re-clocks standard SDI rates including 3G (2.97 Gbit/s), HD (1.485 Gbit/s), and SD (270 Mbit/s)
Auto bypass of non-standard SDI rates from 20 Mbit/s to 3 Gbit/s
Passes SDI embedded audio and ancillary data
Different SDI rates can be used on different inputs interchangeably and without restriction
Output can be muted
Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
Store and recall up to 10 preset salvos
Ethernet port for control via built-in web page interface or TCP/IP ports
Interactive web page interface (Interactive Demo)
Serial control via RS-232 port
RS-485 port for an additional high-speed, long-distance-capable control interface
Support for select 3rd party protocols for added integration flexibility
Real-Time Operating System (RTOS) with 32-bit ARM processor
System software updates from web page interface
Compact enclosure design with a depth of only 4"
Lightweight at less than 2 lb
External DC power supply
Redundant power supply included

Matrix Switch TXD71L Specs

Processing
Switching Type
Pushbutton
Processing Resolution
DCI 2K at 60
Color Processing
10-Bit 4:2:2 YUV
10-Bit 4:2:2 RGB
10-Bit 4:4:4 YUV
10-Bit 4:4:4 RGB
Audio Processing
48 kHz / 24-Bit
Input
Video Inputs
7 x BNC
Input Video Format
SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
Output
Video Outputs
1 x BNC
Output Video Format
SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
Connectivity
Other I/O
1 x DE-9/DB-9 RS-232
1 x USB (Unspecified Type) Control
1 x RJ45 LAN
1 x BNC Sync Input
1 x BNC Sync Output
Video Standard Compliance
SMPTE 259M/292M/296M/310M/425M-A/425M-B
ITU -R BT.601/BT.656
Power
Power I/O
2 x Barrel (7.5 VDC) Input
General
Dimensions
6.6 x 4 x 1.75" / 16.8 x 10.2 x 4.45 cm
Weight
2 lb / 0.91 kg
