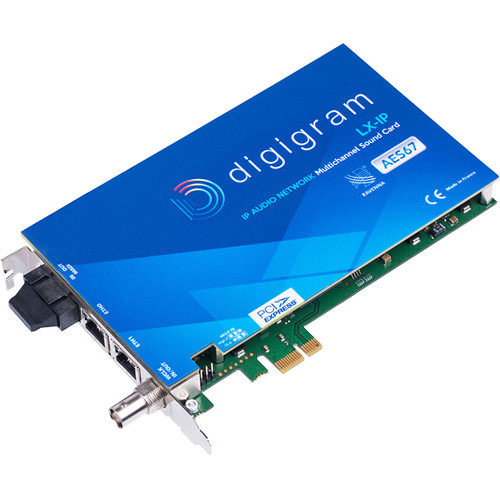

The Digigram LX-IP MADI is a PCIe card that allows DAWs and other software applications on Windows and Linux computers to interface with RAVENNA, AES67 AoIP, and MADI digital audio networks. Well suited for use in broadcast applications and studio installations, the ultralow-latency card supports up to 64 input and 64 output channels simultaneously via its pair of RJ45 ports and optical MADI connector. Word clock input and output is available via a single BNC connector and configurable via software.
Features
- Provides gateway between critical Windows/Linux software apps and RAVENNA, AES67 AoIP, and MADI digital audio networks
- Full compliance in all respects with AES67 and SMPTE 2022-7
- 64 simultaneous phase-accurate I/O channels to and from computer with 0.5ms latency
- Configure both RJ45 ports as inputs only or outputs only for up to 128 inputs or 128 outputs
- Sturdy hardware structure bears computational load for stable and reliable broadcasting performance
- Supports PCM16, PCM24, PCM32, and AM824 (PCM24 + AES3 channel status)
- Clock sources: PTPv2 (IEEE1588-2008), internal, word clock, or MADI
- Local clock eligible as GrandMaster PTP
- Local clock precision better than 10 ppm
Connectors
- 2 Gigabit Ethernet RJ45 ports for RAVENNA In/Out (dual-ports, or SMPTE 2022-7 redundancy)
- 1 optical connector for MADI In/Out
- 1 BNC for word clock In/Out
RAVENNA Support
- 64x64 In/Out (mono) channels at 44.1 or 48 kHz (64/64 I/O on each Gigabit Ethernet interface)
- 8x8 In/Out channels at 192 kHz
MADI Support
- 64x64 In/Out (mono) at 48 kHz via optical connector
- 32x32 In/Out channels at 96 kHz
