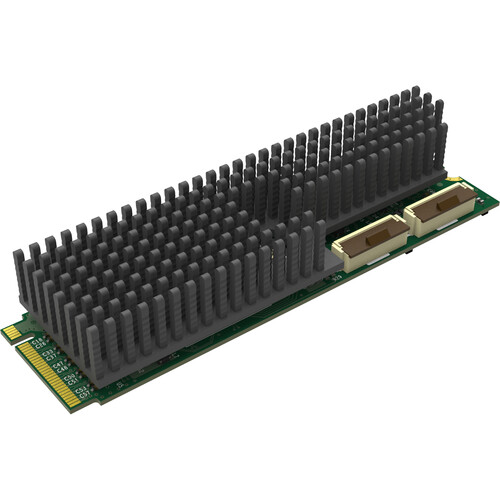

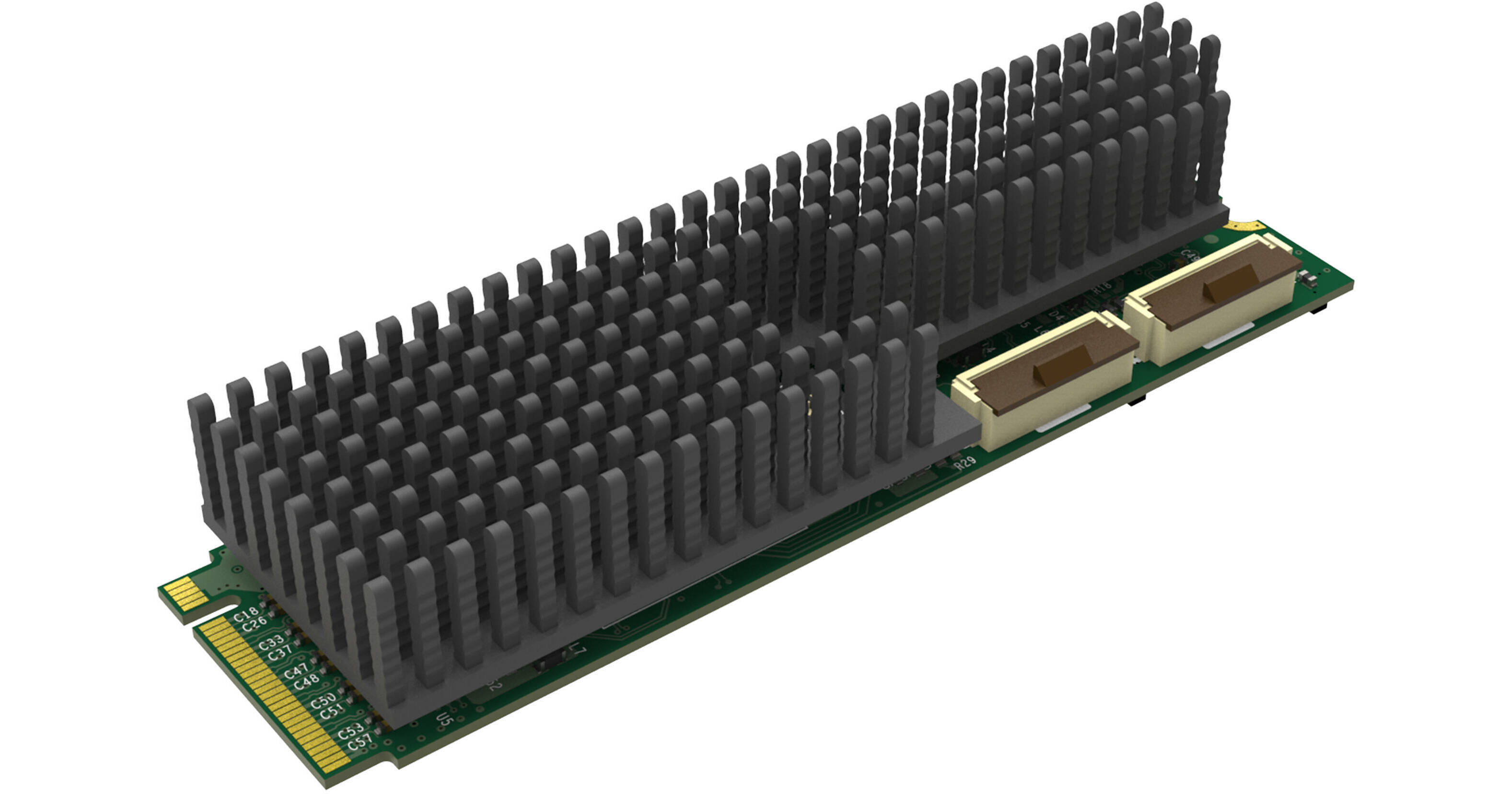

The Eco Capture Dual HDMI M.2 Two-Channel 2K Capture Card from Magewell supports two HDMI input sources simultaneously and allows you to capture up to 2048 x 2160 resolution with embedded audio from each source to your computer. Featuring an M.2 (PCIe 2.0) computer interface, this card provides the flexibility to be used in compact/thin tablet computers and other small form factor PCs where PCIe slots may be at a minimum. It's compatible with Windows and Linux operating systems and is capable of operating 24 hours a day, 7 days a week, while an LED indicator confirms the working state of the input the entire time (idle, input signal locked, memory failed, or FPGA configuration).
The Eco Capture Dual HDMI M.2 Card also offers many processing and other features, including resolution scaling and a high-fidelity pipeline. The card has two native FPC input connectors and comes with two matching FPC to HDMI type A adapters and two FPC ribbon cables for connecting your HDMI signals.
- Two FPC connectors supporting included FPC to HDMI adapters and ribbon cables
- Capture 2K x 2K resolution (2048 x 2160)
- M.2 Interface (PCIe 2.0)
- Compatible with Windows and Linux
- Resolution scaling
- High-fidelity video processing pipeline
- Image control
- Various output color spaces
- SG-DMA transmission mode
- Multiple devices on one host
- Multiple replicated capture streams
- Hardware time stamp
- Mounting hole
- LED indicator
- Firmware upgradeable
- Common driver
- 24/7 continuous operation
- 165 MHz HDMI receiver
- Adaptive HDMI equalizer
- HDMI transmission distance up to 100'
- Customized EDID
- Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
- Full colorimetry
- 8/10/12-bit color depths
- RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Up to 8-channel IEC60958/IEC61937 audio streams
- Extraction of audio formation information and channel status data
- Extraction of video timing information
- Extraction of 3D format information
- Extraction of Sony/Canon DSLR timecode
- Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
- Image resolutions up to 2048 x 2160
- Frame rates up to 144 fps (actual capture frame rate can be limited by PCIe bandwidth; for 1280 x 1024 and higher, the actual frame rate may be limited by the onboard video processing hardware pixel clock - for example, the maximum frame rate of 1920 x 1080 resolution can up to 80 fps)
- 4:2:0 8-bit capture formats: NV12, I420, YV12
- 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- More capture formats are supported via Magewell Capture SDK for DirectKS
- Video processing pipelines with 180 megapixels processing bandwidth
- 8-bit 4:4:4 video processing
- Cropping
- Scaling
- Deinterlacing
- Video aspect ratio conversion
- Color format conversion
- Frame rate conversion
- Weave
- Blend top and bottom field
- Top field only
- Bottom field only
- Auto or manual selection of input aspect ratio
- Auto or manual selection of capture aspect ratio
- Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
- Auto or manual selection of input color format and quantization range
- Auto or manual selection of capture color format, quantization range, and saturation range
- Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Support for limited or full quantization range
- Support for limited, full, and extended gamut saturation range
- Support for multiple cards plugged into one system
- On-board rotary switch to set card number with 16 positions
- System hardware device tree will display "01: Eco Capture Dual HDMI M.2" when the rotary switch is set to 0001, and so on
- The video and audio device names displayed in your software will include the card number (set by the rotary switch)
- Unlimited capture streams for any one input channel (but in the same format)
- Hardware-based 100ns high-resolution clock
- Audio frames (192 audio samples) and video frames are stamped with hardware clock
- Hardware clock can be synchronized across cards (via SDK)
- 700 MB/s per channel DMA bandwidth in PCIe 2.x system
- 400 MB/s per channel DMA bandwidth in PCIe 1.x system
- Auto-detection of Intel tiled GPU surface
- DirectGMA for AMD video adapter chipsets
- GPUDirect for NVIDIA video adapter chipsets
- Magewell Capture SDK for DirectShow for easy integration (Windows)
- Magewell Capture SDK for DirectKS for maximum flexibility and performance (Windows)
- All options can be controlled by three levels of registry key: global level, product level, and device level
- Video, audio, crossbar filter names can be customized via registry keys
