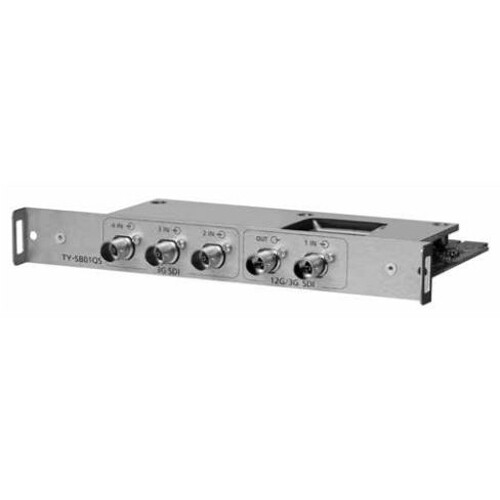

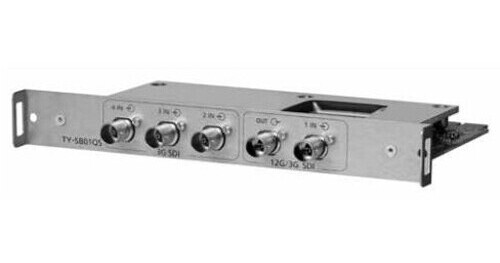

Panasonic TY-SB01QS 12G-SDI Terminal Board for Select Displays

BH #PATYSB01QS • MFR #TY-SB01QS
Print
Panasonic TY-SB01QS 12G-SDI Terminal Board for Select Displays
Key Features
  • For Select Panasonic Displays
  • Intel SDM Slot Compatible
  • 1 x 12G/3G-SDI, 3 x 3G-SDI Inputs
  • 1 x 12G/3G-SDI Output
The TY-SB01QS 12G-SDI Terminal Board for Select Displays is an SDI input signal module for select Panasonic displays. Compatible with Intel SDM slots, the board provides 12G-SDI and quad-link 3G-SDI inputs and 12G-SDI and 3G-SDI outputs.
More Details
In Stock
No Store Display
$2,349.00
+
Save the Tax‡
when you use the Payboo credit card. Learn More
Add to Cart for Price
Free Expedited Shipping
Ask an Expert
800-606-6969

Panasonic TY-SB01QS Overview

The TY-SB01QS 12G-SDI Terminal Board for Select Displays is an SDI input signal module for select Panasonic displays. Compatible with Intel SDM slots, the board provides 12G-SDI and quad-link 3G-SDI inputs and 12G-SDI and 3G-SDI outputs.

Note that this board requires main display software v.2.30 or later and sub software v. 2.20 or later.

UPC: 885170381827

Panasonic TY-SB01QS Specs

General
Compatibility
Panasonic PT- RZ24K / PT- RZ17K / PT- RQ25K / PT- RQ18K / PT- REQ80 / PT- REQ10 / PT- REQ12
Audio Input
12G-SDI: 48 kHz, 20/24-Bit, 16-Ch, Synchronized
3G-SDI: 48 kHz, 20/24-Bit, 16-Ch, Synchronized
HD-SDI: 48 kHz, 20/24-Bit, 8-Ch, Synchronized
Video Resolution
12G-SDI:
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
3G-SDI:
1080p: 60/50/30/25/24
1080i: 60/50
2048p: 60/50/30/25/24
720p: 30/25/24
720i: 60/50
Video Standard Compliance
12G-SDI: SMPTE ST 2082-1,2082-10（SDI 1 Input Only）
3G-SDI: SMPTE ST 424, 425
HD-SDI: SMPTE ST 292
Quad Link 3G-SDI：SMPTE ST 424, 425-5
Quad Link HD-SDI
Audio
12G-SDI: SMPTE ST 299（SDI 1 Input Only）
3G-SDI: SMPTE ST 299（SDI 1 Input Only）
HD-SDI: SMPTE ST 299（SDI 1 Input Only）
Inputs/Outputs
Connector 1
1x 12G-SDI BNC, Input Female
1x 12G-SDI BNC, Output Female
Connector 2
3x 3G-SDI BNC, Input Female
Max Transmission Distance
12G Input: 328' / 100 m
12G Output: 164' / 50 m
3G, HD Input: 328' / 100 m
3G, HD Output: 328' / 100 m
Physical
Color
Silver
Dimensions
7.7 x 4.9 x 1" / 195 x 125 x 25 mm
Weight
10.6 oz / 300 g
Packaging Info
Package Weight
1.615 lb
Box Dimensions (LxWxH)
12.9 x 12.4 x 2.2"
