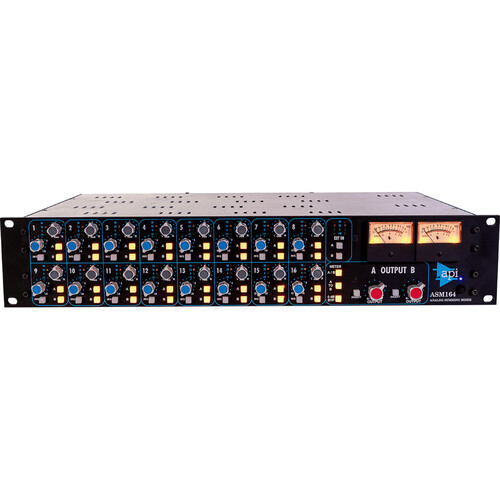

Building upon API Audio's rich history of designing high-quality mixing consoles, the ASM164 is a 16-channel rackmounted summing mixer with the same 2510 input op-amp as The BOX. With 31-step detented level control, variable pan control, Mix-A or Mix-B assignment, and a 4-segment LED level meter per channel, the ASM164 is a comprehensive 2 RU summing mixer.
Each channel sports insert sends and returns via balanced 1/4" TRS and DB25 connectors, with inserts selectable on each channel via push button. The ASM164 also includes line-level DB25 connections for the main channel inputs, XLR 3-pin jacks for stereo input, and stereo XLR pairs for Mix-A and Mix-B output. Complimenting the 2510 circuitry on the input, the ASM164 also features 2520 op-amps and a custom output transformer, delivering the signature API discrete analog sound. An illuminated global 0 dB channel level control bypass is available on the main control section, along with Mix-A to Mix-B bus summing and a button for routing Mix-A or Mix-B to the analog VU meters for monitoring output level. The ASM164 includes an external power supply with a locking 6-pin DC power connector.
- Two DB25 connectors for line-level input (8 channels each)
- DB25 connectors for insert send and return connections with external FX
- Stereo pair of balanced XLR 3-pin inputs for external signals
- Two stereo pairs of XLR 3-pin male outputs for Mix-A and Mix-B
- Balanced 1/4" TRS inputs and outputs for alternate insert send/return connections
- 31-step, detented level control on each channel
- Pan pot with center detent on each channel
- Button on each channel for assigning input to Mix-A or Mix-B
- Illuminated buttons on each channel for engaging balanced inserts
- Buttons for assigning external XLR input to either Mix-A or Mix-B
- 31-position detented stereo output level control for Mix-A and Mix-B
- Illuminated buttons for inserts on either Mix-A or Mix-B
- 0 dB bypass switch for deactivating channel level control, setting each to unity gain
- A to B button sums Mix-A to Mix-B
