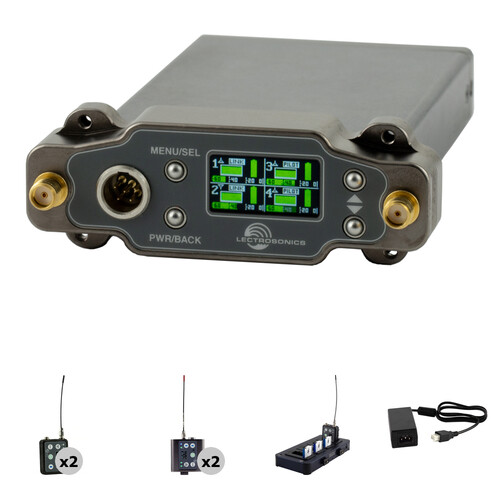

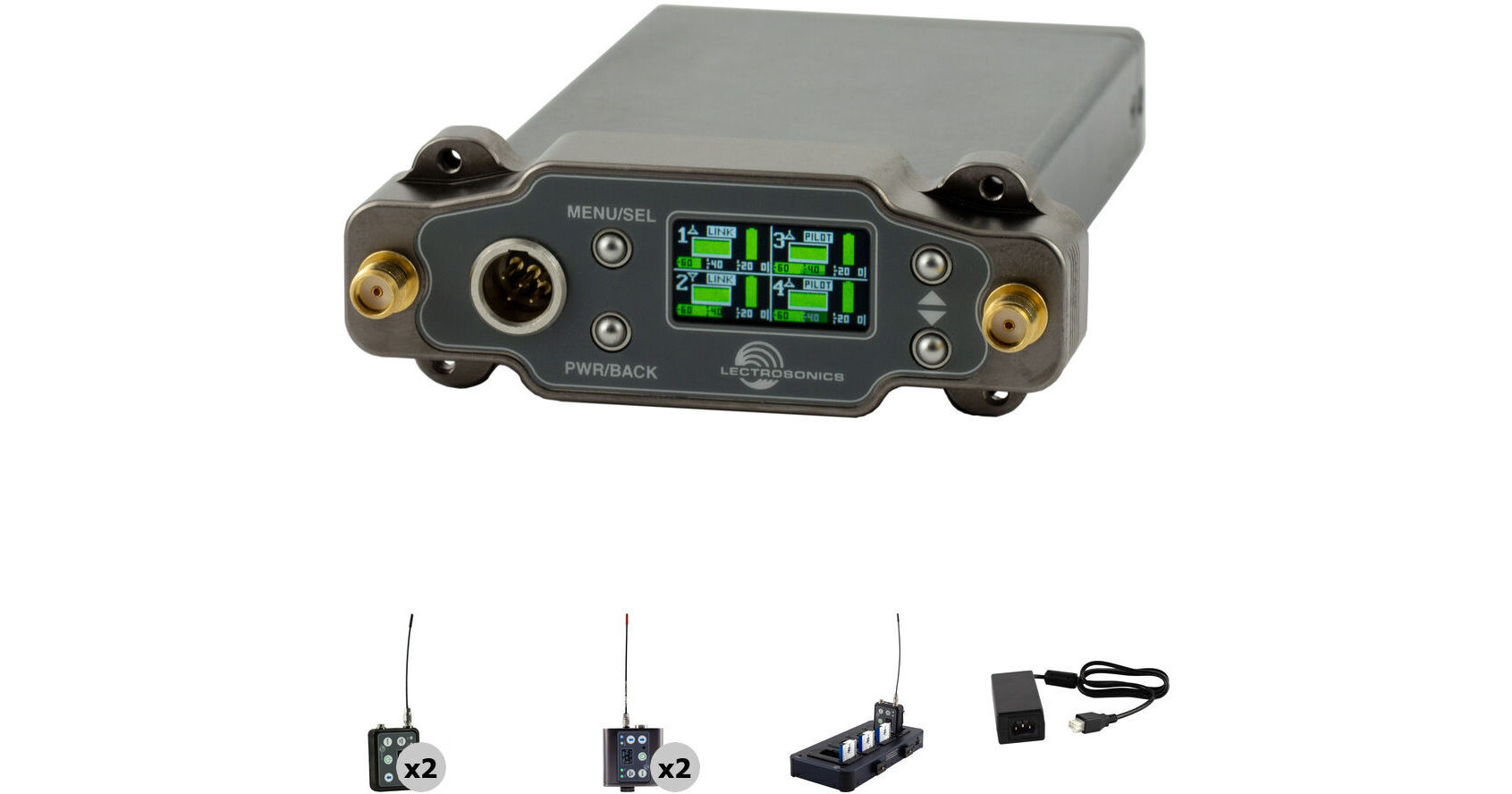

This Lectrosonics DSR4 Four-Channel Slot Receiver Location Wireless Kit from B&H packages the quad-channel receiver with bodypack transmitter options to provide a versatile field recording solution for ENG, mobile video production, sports coverage, reality TV, and other professional-level broadcasting applications. A pair of DBSMD dual-battery transmitter/recorders is perfect for everyday situations, while the pair of DSSM transmitters provide a water-resistant option. Both can accommodate a wide range of lavalier microphones (available separately). A 4-bay charging station for the DSSM is also supplied.
The Lectrosonics DSR4 is a lightweight quad-channel digital slot receiver engineered for mobile sound production, sports video, reality TV, and anywhere a wireless system must provide mission-critical signal stability and clear, transparent 24-bit / 48 kHz sound. It is compatible with the company's mono digital transmitters (DBSM, DBu, DHu, DPR, DPR-A) and stereo digital transmitters (DCHT, M2T), and backward-compatible with any Digital Hybrid Wireless transmitter.
The DSR4 provides four independent receiver channels at the highest level of RF and audio performance available, a versatile, field-proven feature set, selectable AES3 or analog mic-/line-level outputs, and next-generation capabilities in the Unislot/Superslot form factor for ENG, field, and location production. Settings can be made from the front panel with tactile buttons and a color LCD interface, making the unit ideal for use in portable bag systems, mounted in or on cameras, and on sound carts. The built-in RF spectrum analyzer and SmartTune function help you quickly find a clean frequency to alleviate interference problems in an increasingly congested RF spectrum.
- The mechanical design of the DSR4 fits into the Super-Slot ecosystem and combines field-proven features developed over many years of experience in motion picture and television production. To decrease weight, the DSR4 packs four channel receivers in one unit powered by external DC.
- The 2-way IR sync makes quick work of setting up matching transmitters
- There is a built-in TA5 male connector on the faceplate for use with cameras or other docks not offering analog audio channels through the slot connector—channels 3 and 4, external audio outputs
- The machined aluminum housing and panels are surfaced with a hard-anodized finish with laser etched markings to withstand the rigors of field production.
- For versatility, the DSR4 offers both antenna Phase Switching diversity (4-channel operation) or Vector diversity (2-channel operation).
- 4-channel operation: each channel combines signals from both antennas in or out of phase, depending on field strength at each antenna and which combination yields the best results.
- 2-channel operation: receivers can be paired for Vector diversity mode. The Vector subsystem smoothly and continuously combines RF signals from both channels, with differing phase angles in order to obtain maximum energy.
- It is possible to have one Vector pair (say, channels 1 & 2) and two independent antenna phase channels (say, 3 & 4) for a total of 3 channels of independent operation.
- The two RF gain stages in the front end of each channel provide low-noise RF amplification, excellent sensitivity, and extremely low susceptibility to intermodulation and desensitization.
- The DSR4 offers one of the highest Third-Order (IP3) performances at +15 dBm, compared with +5 to +8 dBm provided by typical audio RF receivers. High IP3 performance allows the receiver to better eliminate the negative impact caused by third-order intermodulation artifacts, have a better signal-to-noise ratio, and also more reliably in today's tough RF environments.
- SmartTune is the easiest and fastest way to scan the local RF spectrum and find clear operating frequencies. The receiver scans through its tuning bandwidth and automatically finds empty areas within the tuning range that have little or no RF energy. The receiver will then set itself to a frequency within an empty area and prompt you to continue or use the IR function to sync to a transmitter
- With a noise floor at -120 dBV and a frequency response up to 20 kHz, high-frequency noise in the source audio is more apparent than in conventional wireless systems. The SmartNR algorithm has three modes. When Off, no noise reduction is performed. When Normal is selected, enough noise reduction is applied to remove most of the hiss from the mic preamp and some of the hiss from lavalier microphones. When Full is selected, enough noise reduction is applied to remove most of the hiss from nearly any signal source of reasonable quality, assuming levels are set correctly at the transmitter.
- The DCR4 offers compatibility with the D-Squared and Duet digital transmitters, including the DBu, DHu, DPr, DCHT, DBSM, and M2T.
- There is backward compatibility with any Digital Hybrid wireless transmitters including the SM and SMWB series, WM, HM Series, MM400 Series, HHSeries, LT, LMb, UM400 Series, and SSM.
- DSR4EXT: Bottom plate kit for external audio outputs, with two TA5M connectors and one DC jack
- DSR4SUPER: Bottom plate DB25 connector kit and mounting bezel for SuperSlot docks
- DSR4BATTSLEDTOP: Top-mounted L-type battery sled, with two TA5 audio output jacks and one DC jack
- DSR4BATTSLEDBOTTOM: Bottom-mounted L-type battery sled, with two TA5 audio output jacks and one DC jack
- DSR4DB25: End plate connector kit for Superslot sockets, no mounting bezel included
- DSR4EXTUSB: Bottom plate kit for external audio outputs, with two TA5M connectors, Hirose 4 DC jack, and USB-C connector for programming and control
- 36016: Adapter bezel for mounting the DSR4 in an Octopack or Quadpack, includes 4 screws
- Tune across 144 MHz
- Four independent receiver channels
- Unislot/Superslot form factor
- Antenna phase switching and Vector diversity modes
- Two RF front ends per audio channel
- Fast RF scanning and setup via IR
- 24-bit / 48 kHz digital audio
- Selectable AES3 or analog mic-/line-level outputs
- Built-in TA5M connector on faceplate for channels 3 and 4 external audio outputs
- Built-in RF spectrum analyzer
- SmartTune for quick auto frequency selection and 2-way IR sync for fast setup
- High Third-Order Intercept (IP3) performance of +15 dBm
- Built-in 1 kHz audio test tone
- Powerful AES 256-CTR mode encryption, with four different encryption key policies including Universal, Shared (great for sports coverage), Standard, and Volatile (one-time use key).
- LCD display provides visibility in all lighting conditions
- USB jack and data connection through the SuperSlot interface for compatibility with Lectrosonics Wireless Designer frequency coordination and system management software
- Machined aluminum housing with hard-anodized finish
- Proprietary accessories are required for mounting, powering, and audio outputs: DSR4EXT, DSR4SUPER, DSR4SNY, DSR4BATTSLEDTOP, and DSR4BATTSLEDBOTTOM
Ideal for theater, TV, film, sports, and broadcast applications where concealment is desired and water-resistance is required, the 470 to 607 MHz Lectrosonics DSSM Micro Digital Wireless Transmitter is the company's smallest transmitter with an IP57 rating and dock-charging capability. The DSSM offers an extensive feature set packed into an exceptionally rugged and lightweight, solid-aluminum housing, and is compatible with all Lectrosonics digital receivers, including the DSR, DSR4, DSQD, DCR822, M2Ra, and DCHR. The servo bias input circuitry can accommodate an electret lavalier mic, a dynamic mic, or a line-level input via the locking, 3-pin LEMO connector.
The DSSM includes specially developed, high-efficiency circuitry for extended operating time on the rechargeable LB-50 battery. RF power selections are offered at 10, 25, and 50mW (D2 mode) and at 4mW (Special High Density/HDM mode). The membrane switch panel and OLED display enable quick access to all adjustments and settings.
- The IP57 rating indicates that the unit is protected against dust ingress while also withstanding water immersion up to 3.2' for 30+ minutes—all while allowing for quick battery swap-outs
- The housing is constructed of machined aluminum alloy treated in the conductive, super hard electroless nickel ebENi finish
- The audio-input jack is a 3-pin LEMO connector with a threaded collar adding additional ruggedness
- The optional CHSDSSM battery charging station provides a convenient and organized way of recharging any mix of four DSSM transmitters and/or four LB-50 lithium-ion batteries
- Full charging of battery takes 3 hours
- The DSSM transmitter can operate up to 6 hours on a full charge
- For larger systems with numerous batteries in regular use, the CHSDSSM charger may be daisy-chained to 3 additional CHSDSSM chargers using a single DCR5/9AU AC/DC power supply (available separately) for a total of 16 LB50s and/or DSSMs charging at once
- The input section features the unique Lectrosonics servo bias input circuitry accepts mic- or line-level signals with a wide range of gain adjustment in 1 dB steps
- Accurate indications on the display allow precise gain adjustments to be made for the maximum signal to noise ratio and minimum distortion
- A DSP-controlled analog audio limiter is employed ahead of the first mic preamp to protect the entire audio chain from overload. The limiter has a range of more than 30 dB for excellent overload protection, and a dual-release envelope that makes the limiter acoustically transparent while maintaining low distortion of brief transients and longer duration peaks
- Selectable low-frequency roll-off at 35, 50, 70, 100, 120, and 150 Hz
- The membrane switch panel and OLED display enable access to all adjustments and settings. The menu structure is easy to navigate
- Battery status is indicated by a bi-color LED that is green with a fresh battery, then turns to red as the battery runs down, and finally starts blinking red when there are only a few minutes of runtime remaining
- The DSSM offers AES 256-bit CTR encryption with four key policies including Universal, Shared, Standard, and Volatile. This covers a wide variety of use cases, including government, corporate, and sports coverage
- LectroRM (available separately) is a third-party mobile application for iOS and Android smartphone operating systems. Its purpose is to make changes to the settings on the DSSM transmitter by delivering encoded audio tones to the microphone attached to the transmitter
- When the tone enters the transmitter, it is decoded to make a change toa variety of different settings such as input gain, frequency, and more
- Compatible with DSQD, DCHR, M2Ra, DSR, DSR4, and DCR822 receivers
- Audio-input connector: LEMO 3-pin
- IP57 rating: avoids water ingress for 30 minutes or more when submerged under 3.3' of water
- Removable battery: the DSSM uses an LB-50 rechargeable lithium-ion battery
- Easy-to-use onboard buttons and rich display, with the same menu structure as the company's DBSM family of transmitters
- USB jack located inside the battery compartment for firmware updates in the field, using Wireless Designer software
- All-metal construction
- Removable antenna with SMA mount
- RF Power settings at 10, 25, and 50mW in D2 mode and 4mW for HDM mode
- AES 256-bit CTR encryption with four key policies including universal, shared, standard, and volatile (this covers a wide variety of use cases, including government, corporate, and sports coverage)
- Includes flexible, repositionable wire belt clip
Ideal in larger systems with numerous batteries in regular use, the Lectrosonics CHSDSSM is a four-bay charging station that provides a convenient and organized way of recharging any mix of four DSSM transmitters and/or four LB-50 lithium-ion batteries. Each CHSDSSM module may be daisy-chained to 3 additional CHSDSSM modules using a single DCR5/9AU AC/DC power supply (not included) for a total of 16 LB50s and/or DSSMs charging at once.
The CHSDSSM charging station features an individual LED on each charging bay. Red indicates the battery is charging and green indicates the battery is completely charged. Each charging module is reverse-polarity protected and individually fused (10A one-time fuse). Battery charging time is 3 hours.
- Each CHSDSSM charges up to 4 LB-50 lithium-ion batteries or 4 DSSM transmitters
- Connect up to 4 CHSDSSMs using a single power supply (16 batteries/DSSMs charging at once)
- Ideal for large installations
- Individual charging circuits and LED status indicators
Offering 100% digital architecture with secure AES-256 encryption, a wider frequency range, a high-density mode for incredibly tight channel spacing, extended battery life, and timecode jam sync support in the same ultracompact size and shape as its SMWBD predecessor, the Lectrosonics DBSMD dual-battery digital wireless bodypack transmitter/recorder delivers premium audio quality, dependability, and versatility for professional sound recordists working in demanding production environments such as TV, film, sports, and live sound.
From its rugged aluminum housing and non-corrosive finish to its water-resistant control panel and OLED display, the DBSMD is ready to take on the challenges of any shooting scenario. The servo bias input circuitry can accommodate an electret lavalier mic, a dynamic mic, or a line-level input, and the TA5M input jack is also able to accept a timecode feed. Whether used as a transmitter or a standalone recorder, the DBSMD delivers pristine 24-bit / 48 kHz audio. It is compatible with D Squared, DCR822, DCHR/DCHT, and Duet systems.
Digital transmitters offer new opportunities including encryption, flatter phase and amplitude response, quieter noise floor, and increased metadata during transmission. The latest design can also increase battery life, allow for extremely tight channel spacing, and increased range per average RF power.
- Selectable output power to maximize operating range or battery life
- Ultralightweight, corrosion-resistant housing
- OLED interface with lockout option
- Servo bias input circuitry
- IR (infrared) port for fast setup
- Alternate use as recorder on internal microSDHC memory card (16GB card included)
- Timecode jam sync capability with TCXO for <1 ppm accuracy
- High-density mode for ultratight channel spacing
- Compatible with existing accessories from SMDWB including SMBATELIM, pouches, and clips
- Wireless Designer can include HDM in coordinations (requires PC version 2.0.31 and Macversion 2.0.26 or higher)
- 2 x AA batteries
- AMM-19 antenna
- AMM-22 antenna
- SMWBBCUPSL belt clip
- PSMWB pouch with swivel clip
- SMKITTA5 connector kit with boot
- 16GB microSD card
Ideal in larger systems with numerous batteries in regular use, the Lectrosonics CHSDSSM is a four-bay charging station that provides a convenient and organized way of recharging any mix of four DSSM transmitters and/or four LB-50 lithium-ion batteries. Each CHSDSSM module may be daisy-chained to 3 additional CHSDSSM modules using a single DCR5/9AU AC/DC power supply (not included) for a total of 16 LB50s and/or DSSMs charging at once.
The CHSDSSM charging station features an individual LED on each charging bay. Red indicates the battery is charging and green indicates the battery is completely charged. Each charging module is reverse-polarity protected and individually fused (10A one-time fuse). Battery charging time is 3 hours.
- Each CHSDSSM charges up to 4 LB-50 lithium-ion batteries or 4 DSSM transmitters
- Connect up to 4 CHSDSSMs using a single power supply (16 batteries/DSSMs charging at once)
- Ideal for large installations
- Individual charging circuits and LED status indicators
The Lectrosonics DCR5/9AU is a power supply for the CHSIFBR1B 4-bay battery and receiver charger. A single DCR5/9AU can power up to four CHSIFBR1B charging bays at once, allowing you to recharge up to sixteen IFBR1B receivers or LB-50 batteries at the same time from a single power source.
