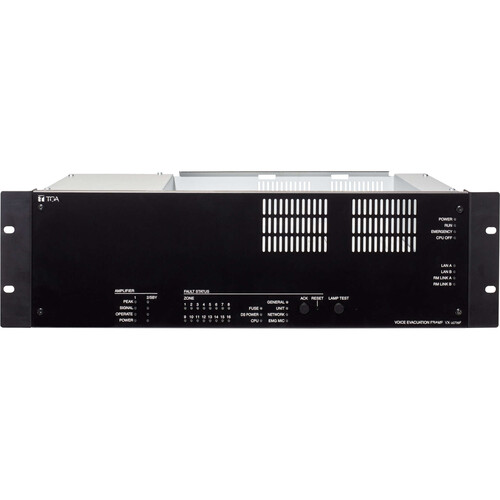

Designed to control the voice evacuation announcements of TOA's VX-3000 Series rack-mount type voice evacuation system, the TOA Electronics VX-3016F features audio input terminals and can output the amplified audio signals to the speaker lines when the optional power amplifier modules are mounted. Compatible with networks, the system can be configured in distributed arrangement, allowing you to make an Emergency Warning Broadcast with two broadcasts being activated simultaneously.
The onboard digital signal processing function that enables appropriate acoustic adjustment for individual input sound sources and output areas. Up to 16 speaker output channels and a total of 2 power amplifier modules (2 for zone amplifier use and 1 for standby amplifier use) can be mounted. When one module for zone amplifier use is mounted, the VX-3016F can be used as 1-bus/16-zone output speaker selector. When 2 modules for zone amplifier use are mounted, it can be used as 2-channel 1-bus/8-zone output speaker selector. Zones can be expanded by connecting the unit having amplifier module(s) and the one having no amplifier module..
Benefits
- Up to 2 amps (16 switched zones + standby amp or 2 x 8 switched zones)
- All mandatory indications by EN54-16
- Status indication for each speaker line
- Fault acknowledge and lamp test button
- Input DSP: flexible filter types and compressor
- Output DSP: flexible filter types, compressor and delay up to 2.7 sec.
LAN A, B
- Number of connectors: 2 (LAN A, LAN B)
- Network I/F: 100BASE-TX
- Network protocol: TCP, UDP, ARP, ICMP, RTP, IGMP, FTP, HTTP, NTP
- Spanning tree protocol: RSTP
- Audio transmission system: TOA packet audio
- Audio encoding method: PCM
- Audio sampling frequency: 48 kHz
- Audio quantifying bit number: 16 bits
- Connection device: VX-3004F, VX-3008F, VX-3016F, NX-300, and Switching HUB
- Connector: RJ45 connector
- Connection cable: category 5 twisted pair cable (CAT 5) or greater
- Number of stages of cascade connection: up to 7
- Maximum cable distance: 328'
RS Link A, B
- Number of connectors: 2 (RS LINK A, RS LINK B)
- Audio input level; 0 dB
- Power feed: max. 1 A per connector
- Connector: RJ45 connector
- Connection cable: shielded category 5 twisted pair cable (CAT5-STP) or greater
- Maximum cable distance: 3937'
Link
DS Link
- Connection device: DS LINK of power supply units
- Connector: RJ45 connector
- Connection cable: shielded category 5 twisted pair cable (CAT5-STP)
- Maximum cable distance: 16.4'
Analog Link
- Number of connectors: 1 input, 1 output
- Connection device: VX-3004F, VX-3008F, VX-3016F
- Connector: RJ45 connector
- Connection cable: shielded category 5 twisted pair cable (CAT5-STP) or greater
- Maximum cable distance: 2624'
Audio Input 1-4
- 4 inputs
- Sensitivity
- Line: -20 dB (x2) / MIC: -60 dB (x2)
- LINE/MIC/ANC sensor (changeable with setting software)
- Gain control: volume adjustable with volume control (internal front panel) -∞ to 0 dB
- Input impedance: 47 kilohms electronically balanced
- Frequency response: 40 Hz to 20 kHz ±1 dB (at DA CONTROL LINK, 0 dB output)
- Distortion: 1% or less (at DA CONTROL LINK, 0 dB output, 1 kHz)
- Signal to noise ratio: 60 dB or more (at DA CONTROL LINK, A-weighted)
- Phantom power supply: 24 VDC, can be set with setting software
- Connector: removable terminal block (6 pins): 2
Audio Input
- 16 inputs, no-voltage make contact input, open voltage: 24 VDC
- Short-circuit current: 2mA
- Fault Detection System: Short circuit, Open circuit
- Method: Voltage detect
- Connector: RJ45 connector
Control Input and Output
Control Input 1, 2
- 16 inputs , no-voltage make contact input, open voltage: 24 VDC, short-circuit current: 2mA
- Fault detection system: Short circuit, Open circuit, Method: Voltage detect
- Connector: RJ45 connector
- Connection cable: shielded Category 5 twisted pair cable (CAT5_STP) or greater
Control Output 1, 2
- General outputs : 8 with CONTROL OUTPUT 1
- Exclusive outputs : 3 with CONTROL OUTPUT 2; GENERAL FAULT, CPU FAULT, CPU OFF
- No-voltage make contact, electrical contact output, control current: 10mA ; withstand voltage: 28 VDC
- Connector: RJ45 connector
- Connection cable: Shielded Category 5 twisted pair cable (CAT5-STP)- or greater
Digital Signal Processing
Feedback Suppressor (FBS)
- 7 filters (auto)
- Settable for each audio input and RS LINK (A/B)
- Equalizer/Filter
- 3 bands for each audio input and RS LINK (A/B),
- 6 bands for each amplifier output
- Parametric equalizer: 20 Hz - 20 kHz, ±15 dB, Q 0.267 - 69.249
Filtering:
- High-pass filter 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct
- Low-pass filter 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct
- High shelving filter 6 - 20 kHz, ±15 dB
- Low shelving filter 20 - 500 Hz, ±15 dB
- Notch filter (amplifier output only) 20 Hz - 20 kHz, Q: 8.651 - 69.249
- All-pass filter (amplifier output only) 20 Hz - 20 kHz, Q: 0.267 - 69.249
- Horn equalizer (amplifier output only) 20 kHz, 0 to +18 dB (0.5 dB steps)
Compressor
- Threshold: -20 to 0 dB (1 dB steps)
- Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1, 5:1, 7:1, 8:1, 10:1, 12:1, 20:1, ∞:1
- Attack time: 0.2 ms - 5 s, Release time: 10 ms - 5 s
- Gain: -∞ to +10 dB, Knee type: hard knee, middle knee, soft knee
Delay
- For each amplifier output, 0 - 2730 ms (0.021 ms steps)
ANC (Ambient Noise Control)
- Amplifier output level control, Automatic sensor input reference level measuring, Sensor input reference level fine adjustment Maximum output signal level control: -15 to 0 dB
- Minimum output signal level control: -18 to -3 dB
- Sample time setting: 10 s, 20 s, 30 s, 1 min, 5 min
- Gain ratio setting: (Ambient noise: Output signal level) 6:3, 5:3, 4:3, 3:3, 3:4, 3:5, 3:6
- Ambient noise measuring frequency setting: 20 Hz - 20 kHz, 3 points
Additional Details
Program Timer
- Weekly program method; Daily program: 50 events, 10 types; Holiday program: 50 types
Time Adjustment
- Control input, NTP
Speaker Line
- 4 channels (with AB LINE speaker out) 1 earth terminal
- Max. Voltage/Current: 100 VRMS, 5 ARMS Connector: Removable terminal block (17 pins) x 1; Fault detection system: Short circuit, Open circuit, Ground fault, Method: Impedance or End of line
Standby Amplifier Input/Output
- Input: 1, Output: 1
- Max. Voltage/Current: 100 VRMS, 5 ARMS
- Connector: Removable terminal block (2 pins) x 2
Module Slot
- Number of modules: 3 (when the line output module is installed: 2)
- DA CONTROL LINK: 3
- DA OUTPUT LINK: 3 (Used only when a power amplifier module is installed)
Indicators
- POWER (green): 1, RUN (green): 1, EMERGENCY (red): 1, CPU OFF (red): 1, LAN A (green): 1, LAN B (green): 1, RS LINK A (green):1, RS LINK B (green):1
- FAULT STATUS (yellow)
- GENERAL: 1, UNIT: 1, NETWORK: 1, EMG MIC: 1, FUSE: 1, POWER: 1, CPU: 1, ZONE: 8
- AMPLIFIER
- PEAK (red): 4, SIGNAL (green): 4, OPERATE (green): 4, POWER (green): 4
Operation
- Fault control switch: 2 (ACK/RESET)
- Test Switch: 1 (LAMP TEST)
- Setting Switch: ID NUMBER, RESET, IMPEDANCE, Setting (internal front panel)
