From Manufacturer

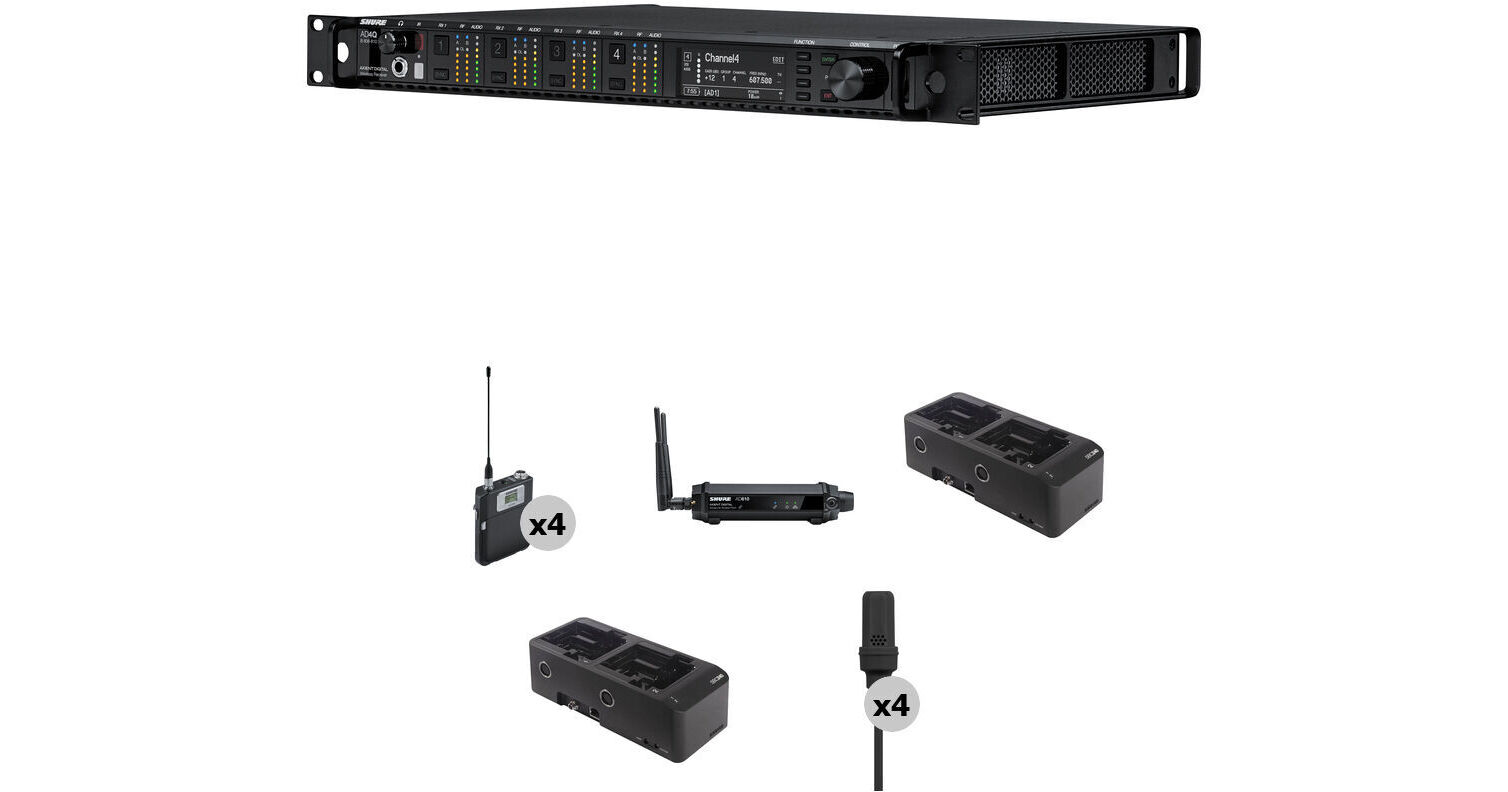

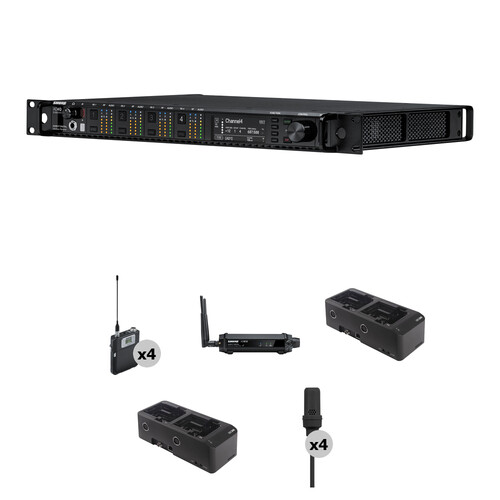

The Shure AD4Q-US Axient Digital Quad-Channel Wireless System with Four ADX1 Bodypack Transmitters, Four UniPlex Cardioid Lavaliers, Showlink, and Chargers is a complete, high-performance solution designed for mission-critical productions, corporate environments, and broadcast applications. Centered around the AD4Q-US four-channel receiver, this system delivers reliable RF performance, pristine digital audio, and secure transmission for demanding, high-channel-count environments.
Operating across a 166 MHz ultrawide UHF bandwidth (470 to 636 MHz), the receiver supports expansive frequency coordination with up to 120+ simultaneous channels in standard mode, while High Density mode enables efficient operation in spectrum-constrained environments. True digital diversity reception and advanced interference detection help maintain uninterrupted audio, while AES-256 encryption ensures secure transmission for sensitive applications.
The four included ShowLink-enabled ADX1 bodypack transmitters operate in the G57 band (470 to 616 MHz) and provide flexible, user-friendly operation with automatic gain adjustment, selectable RF output power, and up to 10 hours of runtime with the supplied SB910 rechargeable batteries. Both of the included SBC240 dual-bay chargers are powered by the single included power supply and deliver network-controlled battery charging.
Combined with the four UL4 UniPlex cardioid subminiature lavalier microphones, the system delivers focused, directional voice capture optimized for speech and presentation. The 5mm capsule provides unobtrusive placement, while the cardioid polar pattern offers high gain before feedback in environments with loud sound reinforcement. A durable, paintable 1.6mm Shure Plex cable with enhanced shielding ensures long-lasting performance and resistance to interference.
An included AD610 ShowLink Wireless Access Point provides real-time remote control over the transmitters without interrupting the performer, enabling comprehensive management of transmitter parameters from the receiver or Wireless Workbench using 2.4 GHz wireless communication.
With Dante/AES67 networking, XLR and AES3 outputs, extensive remote control and monitoring capabilities via Ethernet, Wireless Workbench, and mobile app integration, this Axient Digital system is engineered to streamline your workflow while delivering dependable top-tier audio quality in the most demanding professional environments.
The Shure AD4Q-US is a 4-channel wireless receiver housed in a rugged, single-rack unit complete with cable and mounting accessories. Part of the Axient Digital system, it delivers mission-critical signal stability and clear, transparent sound for professional productions that demand flawless execution.
Every feature has been stress-tested to enable seamless, uninterrupted audio in high-profile applications such as televised live performances, award shows and corporate events, the Broadway stage, secure government installations, and state-of-the-art meeting and training facilities.
The AD4Q-US operates in a single 166-MHz ultrawide bandwidth that encompasses the entire usable UHF range from 470 to 636 MHz. Quadversity mode allows placement of two pairs of antennas in different zones or doubling antennas in one zone. The Dante Cue and Dante Browse features enable high-fidelity headphone monitoring from any connected Dante-enabled device.
Other highlights include a low 2ms latency, XLR/AES3 + AES67/Dante outputs, 256-bit encryption, and HD mode for up to 47 active transmitters per 6 MHz TV channel. Axient Digital supports over 120 simultaneous channels and is compatible with AD1, ADX1, ADX1M, AD2, ADX2, and ADX2FD transmitters.
The Axient ecosystem uses multiple components that work together for advanced interference detection and avoidance. The AD4Q receiver can detect RF interference when it occurs and get a new, clean frequency from the AXT600 Spectrum Manager (available separately). Using the AD610 ShowLink Access Point (available separately), the AD4Q receiver and ADX transmitter execute a synchronized frequency change in a matter of milliseconds.
Remote Control for ADX transmitters
When it is difficult or impossible to access the transmitter, you can make instantaneous remote adjustments to your ADX transmitter settings (RF output, gain, mute, and more) via ShowLink.
Frequency Diversity Mode
In Frequency Diversity mode, two AD/ADX transmitters or a single ADX2FD transmitter can transmit two identical signals on two discreet frequencies. If the active signal degrades, the other takes over automatically, providing additional protection against dropouts. This mode uses two channels on the receiver.
Ultra-Compact ADX1M Micro Bodypack Transmitter
The ADX1M features a lightweight and ultra-compact design with an internal antenna. Comfortable to wear, it is exceptionally easy to place and conceal on talent.
Wide Dynamic Range: A dynamic range of >120 dB yields impressive signal-to-noise performance and accurate transient response.
Ultra-Low Latency: An exceptionally low 2ms latency from microphone transducer to analog output delivers a seamless, cohesive sound.
Digital Outputs: Dante and AES67 digital audio both transmit via a configurable 4-port Ethernet switch for combined control/audio or separate streams with redundancy. An AES3 output provides an additional option for pristine digital audio.
Encryption: An Advanced Encryption Standard (AES) 256-bit encrypted signal ensures that every transmission is secure and unbreachable, ideal for government facilities and other sensitive installations.
True Digital Diversity Reception: Mounting a superior defense against multipath, fading events, and other anomalies that cause RF noise, Axient Digital combines two discrete RF signals per receiver channel using a quality-based maximal-ratio-combining algorithm.
Quadversity Mode: Quadversity configures the receiver to accept four antenna inputs to maximize RF coverage and minimize the risk of dropouts and signal loss caused by interference. It also allows users to place two pairs of antennas to cover different zones. The AD4Q provides two channels of audio when configured in this mode.
High Density Mode: High Density transmission mode enables up to 47 active transmitters in one 6 MHz TV channel—all while maintaining exceptional audio quality. It is ideal for applications where many channels are needed in a confined area, transmission distances are short, and the number of available frequencies is limited.
Networked Charging for Transmitters: Intelligent, high-performance rechargeable transmitter batteries and chargers let you know how much running time is left during the show, in hours and minutes. You can also monitor the charging status of your spares.
Wireless Workbench and ShurePlus Channels App: Ethernet networking enables real-time, precision monitoring, and control of your system as well as automatic frequency coordination across multiple receivers, using Wireless Workbench and Axient Spectrum Manager software. The AD4Q is also compatible with external controllers such as AMX and Creston.
Control and monitor capabilities can be extended to an iOS mobile device via the ShurePlus Channels app, allowing you to make adjustments anywhere in the venue.
AD transmitters put Axient Digital professional-quality wireless digital audio within reach. Options include the AD1 bodypack transmitter and the AD2 handheld transmitter.
ADX Transmitters with ShowLink
ADX transmitters expand the AD’s feature set to take full advantage of the Axient Digital system’s capabilities. ShowLink technology allows automatic interference avoidance via frequency hopping. Engineers can also adjust parameters in real time from the booth. Options include the ADX1M Micro and ADX1 bodypack transmitters as well as the ADX2 and ADX2FD Frequency Diversity handheld transmitters.
The AXT630 antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less set up time.
- Up to 60 dB of independently adjustable gain for each channel
- Automatic limiter function protects against signal clipping, allowing for higher gain settings and preventing unexpected signal peaks
I/O
- Four transformer-balanced XLR outputs (outputs 3 & 4 switchable to AES3 digital)
- Four transformer-balanced 1/4'' outputs
- Two Dante-enabled Ethernet ports and two network-control Ethernet ports with PoE
- Split-Redundant Mode: Two ports of Ethernet, two ports of Dante
- Switched Mode: Four ports of Ethernet, four ports of Dante
- Word Clock input and thru ports
- Locking AC power connection
- AC power cascade to additional components
RF
- All antenna ports provide a DC bias power for active antennas
- Antenna cascade ports for one additional receiver—ports can be switched to Quadversity inputs
- Channel-Quality meter displays signal-to-noise ratio of RF signal on easily readable LCD
- Preprogrammed group and channel maps with options to create custom groups
- Search for open frequencies via receiver using group and channel scan
- Register up to eight transmitters to one receiver channel
The Shure ADX1 is a digital wireless bodypack transmitter compatible with Axient Digital series receivers. It is ShowLink-enabled for automatic interference avoidance and real-time remote control of parameters.
The ADX1 operates in a single 146 MHz ultrawide UHF bandwidth. It provides up to 10 hours of operation on an SB910 rechargeable battery, with a selectable 2/10/40mW RF output power and a transmission range up to 330'.
This version of the transmitter features a TA4M input, allowing you to connect a lavalier or headset mic of your choice for hands-free presentations and performances, or a dedicated adapter cable for use with an instrument (mic and cable available separately).
With a durable, moisture-resistant, lightweight aluminum case, the ADX1 delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it ideal for high-profile, sound-reinforcement applications.
- ShowLink technology allows the ADX transmitter to execute an automatic, synchronized frequency change in a matter of milliseconds, ensuring clean, uninterrupted transmission, even in the most challenging RF environments.
- You can also make instantaneous remote adjustments to your ADX transmitter settings (RF output, gain, mute, and more) when it is difficult or impossible to access the transmitter.
- The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
- Automatic Gain adjusts the mic input level for you.
- The power button conveniently doubles as mute switch, while preserving RF lock.
- Frequency and power lockout functions prevent accidental or unauthorized changes during events.
- A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
- Offset function lets you balance mic levels when assigning multiple transmitters to a single receiver slot.
- Adjustment range: -12 to +21 dB.
- 2/10/40mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
- Two transmission modes: Standard for optimal coverage and High Density for maximum system channel count and robust coverage.
- Operates for up to 10 hours at 10mW on an SB910 rechargeable lithium-ion battery.
- Rechargeable battery offers intelligent power management with precision metering in hours and minutes, and zero memory effect.
- Can operate on three AAA batteries with the SB913 battery sled (available separately).
- External charging contacts allow for docked battery charging.
- SBC220 two-bay and SBC840 eight-bay networked chargers (both available separately) allow for remote power monitoring via Shure's Wireless Workbench software.
The AD610 ShowLink Wireless Access Point from Shure enables real-time remote control of all ShowLink-enabled Axient transmitters, including both ADX and AXT series models. The access point allows comprehensive management of transmitter parameters from the receiver or Wireless Workbench using 2.4 GHz (IEEE 802.15.4) wireless communication. All parameter changes occur without interruption to the performer.
Multiple access points can extend the operational range or increase the number of transmitters supported on the ShowLink network. The access point features true diversity antenna inputs along with mounting points for 1/4"-20 and M6 x 1.0 threads. A power supply is not included.
The SBC240-US Two-Bay, Networked Docking Charger and PS60 Power Supply from Shure provides a compact charging and storage solution for any combination of two SB910, SB920 batteries or ADX1, ADX2, or ADX2FD transmitters using Shure rechargeable batteries. The charger is network-enabled to allow for remote monitoring of charger and battery parameters using the Shure Wireless Workbench software. In addition, you can connect up to four SBC240 chargers together to share power and network connectivity.
The SBC240 Two-Bay, Networked Docking Charger (No Power Supply) from Shure provides a compact charging and storage solution for any combination of two SB910, SB920 batteries or ADX1, ADX2, or ADX2FD transmitters using Shure rechargeable batteries. The charger is network-enabled to allow for remote monitoring of charger and battery parameters using the Shure Wireless Workbench software. In addition, you can connect up to four SBC240 chargers together to share power and network connectivity.
This black Shure UL4 UniPlex is a cardioid subminiature lavalier microphone equipped with a TA4F connector for compatible Shure wireless bodypack transmitters. Tailored specifically for speech, this professional microphone delivers superb directional capture of your voice for presentations, conferences, education, broadcast, and more.
The UL4 UniPlex features a 5mm subminiature capsule for unobtrusive placement on camera. With its directional pickup pattern, the mic offers high gain before feedback, making it well suited for speech at events with loud sound reinforcement. The thin, 1.6mm Shure Plex cable features a dual-redundant ground that serves as secondary shield, giving it added protection against electromagnetic interference (EMI) and unprecedented durability. The fully paintable cable is immune to memory effect and kinks.
- Directional capture of voice for presentations, conferences, education, broadcast, and more
- MEMS capsule with cardioid polar pattern
- Use with Shure TA4F bodypack transmitter
- 40 Hz to 20 kHz frequency response
- 130 dB maximum SPL
- Unobtrusive 5mm miniature capsule
- Thin, 1.6mm Shure Plex cable with secondary shield for protection from EMI and durability
- Cable is immune to memory effect and kinks
- Fully paintable cable with typical theater paints, pens, and polishes
- Includes a snap-fit foam windscreen that holds tightly in place
- Includes tie clip
- Includes carrying case
- Black, with TA4F connector
