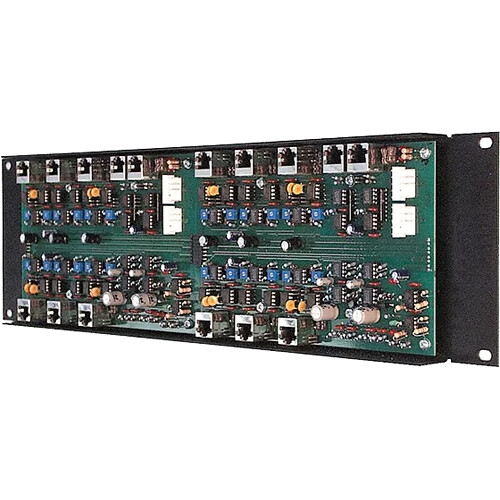

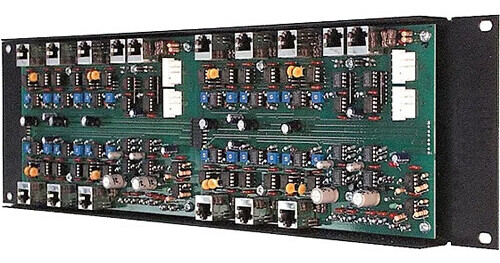

Providing a convenient method of distributing analog audio via networked connections for AV installations, broadcast studios, and home entertainment systems, the StudioHub DA12-DC is a 4x12 mono/stereo analog distribution amplifier. With gain control on each left/right output channel, the DA12-DC offers easy distribution to a diversity of destination types.
The four RJ45 inputs and 12 RJ45 outputs can be operated in stereo or mono modes. The inputs are also paralleled for program loop-through functions. You can easily combine the DA12-DC with another distribution amp or any other StudioHub+ product thanks to ±15 VDC power connector passthroughs, making it simple to build nearly any utility rack configuration you might need. This device also features several functions which are activated via jumper cable, including a +20 dB sensitivity boost, DC power output for some of the RJ45 output connectors, and connection of the RJ45 ports to electrical or chassis grounds.
- Connect RJ45 shielded connection to Hub electrical ground
- Connect Hub electrical ground to chassis ground
- Convert stereo input to mono
- Activate DC output on RJ45 outputs 1, 3, 4, and 6 for poweiring StudioHub DC-Link devices
