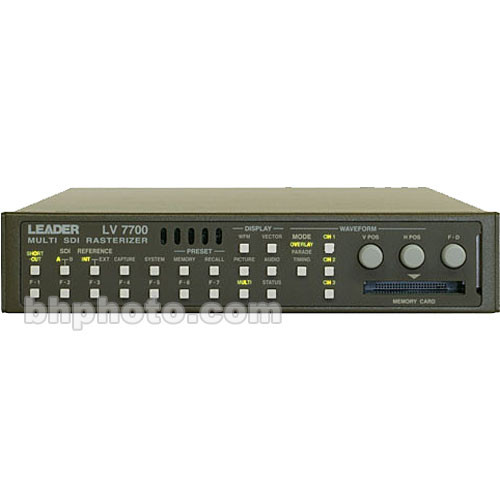

The Leader LV-7700 is a Rasterized Waveform/Vectorscope Monitor; it offers monitoring for SDI and HD-SDI video signals. It also reads audio, status and time code. This unit has the ability to convert a component SDI signal to a pseudo-composite waveform for NTSC/PAL display. Rasterizing superimposes the Waveform/Vectorscope over video on the studio monitor.
Auto Detection Capabilities
This unit has auto detection of the specific HD-SDI or SD-SDI input signal, External Reference type and presence of embedded audio.
Digital Analysis Screens
These screens include data dump, audio essence, equivalent cable length and warning readings.
XGA Display
A high resolution output offers easy to read multi-screen monitoring.
Presets
30 user presets can be stored and retrieved according to the particular application.
Frame Capture
A frame capture is offered to freeze a signal, then compare and contrast to another input or specific time in the same signal.
Digital Audio
Digital audio can be displayed as 3:1, 3:2 or 3:2:2 surround images, multi-Lissajous and 8 Channel bar graphs. The user has the ability to customize these displays for specific operations.
Options
A network card or remote control functionality is offered as options.
Compact Flash Card
A compact flash card storage system is offered for storage of system set-ups, presets, error logs or for mirroring other units.
Remote Control
Remote control is offered with varying connectivity; Ethernet or 25-Pin connectivity is offered for user convenience.
Rasterized Display
Test results and test screens are output via a DVI-I connector and can drive VGA/XGA monitors for signal viewing.
