Kramer VP-72 Multi-Format 1:2 Distribution Amplifier

BH #KRVP72 • MFR #VP-72
Print

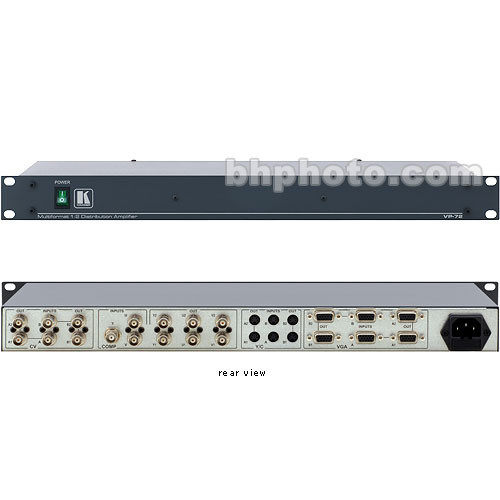

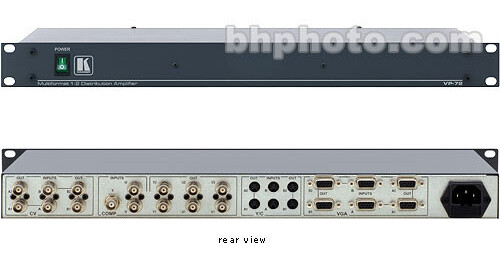

Kramer VP-72 Multi-Format 1:2 Distribution Amplifier
No Longer Available
No Store Display
Ask an Expert
800-606-6969

Kramer VP-72 Overview

The VP-72 Multi-Format 1:2 Distribution Amplifier from Kramer is a multi-format distribution amplifier with (7) inputs. It is designed for use with Composite video, S-Video, Component video (HDTV), and computer graphics video signals ranging from VGA to UXGA and higher. This product was designed to complement Kramer's ProScale Digital Scaler/Switcher Line. It includes (7) 1:2 distribution amplifiers in one package: (2) Composite, (2) S-Video (Y/C), (1) Component, and (2) computer graphics video.

This unit is ideally suited for use in presentation applications that require a preview option, video & graphics studios that need multi-format signal distributions, or stage, PA and educational applications. It offers a high-bandwidth capacity: Composite: 500MHz (- 3dB), S-Video (Y): 520MHz (- 3dB), YUV (Y): 470MHz (- 3dB), & VGA (R): 485MHz (- 3dB). It also features grouped level (trim) controls, EQ (peaking) controls, and ID bit control. It has a 19" width and 1U height, making it ideal for rack placement.

Multi-Format Distribution
This amplifier includes (7) 1:2 distribution amplifiers in one package: (2) Composite, (2) S-Video (Y/C), (1) Component, and (2) computer graphics video.
High-Bandwidth Capacity
This unit offers high-bandwidth capacity: Composite: 500MHz (- 3dB), S-Video (Y): 520MHz (- 3dB), YUV (Y): 470MHz (- 3dB), & VGA (R): 485MHz (- 3dB).
Controls
This amplifier features grouped level (trim) controls, EQ (peaking) controls, and ID bit control.
Rack Friendly
This model has a 19" width and 1U height, making it ideal for rack placement.

Kramer VP-72 Specs

Input
2 x CV on BNC connectors
2 x YC on 4p connectors
1 x YUV on BNC connectors
2 x VGA/UXGA on HD15F connectors
Output
4 x CV on BNC connectors
4 x YC on 4p connectors
2 x YUV on BNC connectors
4 x VGA/UXGA on HD15F connectors
Maximum Output Level
2.4Vpp/75Ω (CV); 2.5Vpp/75Ω ("Y" channel ; YC); 2.3Vpp/75Ω ("Y" channel, YUV);.2.5Vpp/75Ω ("R", VGA) @100% white field
Bandwidth
500 MHz (CV); 520 MHz ("Y" channel, YC); 470 MHz ("Y" channel, YUV); 485 MHz ("R", VGA)
Differential Gain
0.04% (worst case)
Differential Phase
0.02 deg. (worst case)
K-Factor
0.05% (worst case)
Signal-to-Noise Ratio
75dB (worst case)
Crosstalk
-61dB (worst case)
Controls
Gain and EQ. controls, bottom accessible trimmers, all video sections;. ID bit control switches on graphics inputs
Coupling
DC
Power Source
Universal 100-240VAC, 3.5 VA
Dimensions
19 x 7 x 1-3/4"
1U rack height
Weight
5.7 lbs (2.6kg)
Packaging Info
Package Weight
7.75 lb
Box Dimensions (LxWxH)
22 x 11 x 4.5"
