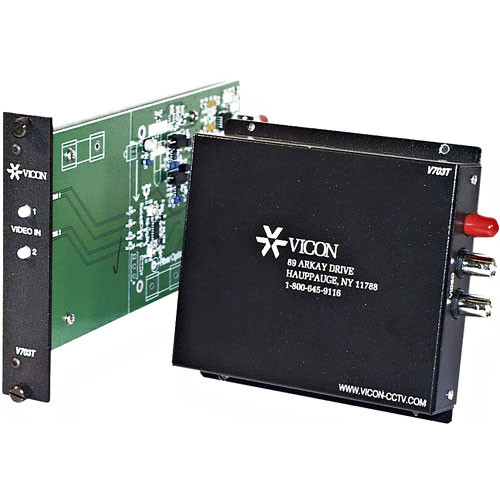

Vicon V703T Surface-Mount Two-Channel FM Fiber-Optic Multiplexer Transmitter

BH #VIV703T • MFR #V703T
Print
Vicon V703T Surface-Mount Two-Channel FM Fiber-Optic Multiplexer Transmitter
No Longer Available
No Store Display
Ask an Expert
800-606-6969

Vicon V703T Overview

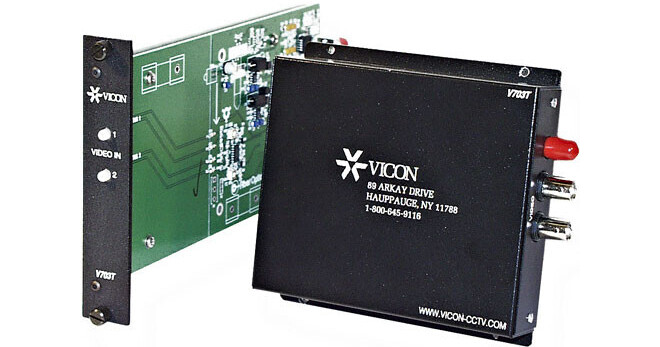

The V703T Surface-Mount Two-Channel FM Video Fiber-Optic Multiplexer Transmitter from Vicon is one component in the V700 Series Fiber-Optic Video Transmission System. The V703 family of products is unique in its ability to simultaneously transmit in real-time (2) channels of multiple full-frame video over a single fiber-optic cable. This unit is a surface-mount transmitter.

This unit accepts monochrome and color signals in EIA, CCIR, NTSC, PAL, and SECAM. A bandwidth capacity of 8MHz ensures high-quality image fidelity. Moreover, FM modulation ensures that image quality remains consistent over the equipment's full operating distance of 2.5 miles (4km). This unit is designed for use with 62.6-um cable and features ST-type connectors as a standard. A bicolor diagnostic LED indicates system and video signal status.

This unit can be powered with the VOPPS-120DC power supply. The manufacturer recommends that this unit be used with a professional optical cable or coaxial installation that meets the application requirements of your particular use.

Fiber-Optic Surface-Mount Video Transmission System
This transmitter is one component in the V703 Series Fiber-Optic Video Transmission System.
Multiplexing
The V703 family of products is unique in its ability to simultaneously transmit in real-time (2) channels of multiple full-frame video over a single fiber-optic cable.
Transmission Distance
This system will transmit video up to 2.5 miles (4km) with fiber-optic cable.
Power
This unit can be powered with the VOPPS-120DC power supply.
Professional Cable Installation
The manufacturer recommends that this unit be used with a professional optical cable or coaxial installation that meets the application requirements of your particular use.

Vicon V703T Specs

Material
Aluminum
Finish
Black semi-gloss paint
Video
Number of Channels: 2
Formats Supported:
Monochrome: EIA and CCIR
Color: NTSC, PAL, and SECAM
Full System Bandwidth: 8 MHz per channel
Horizontal Video Resolution: 640 TV lines
Input/Output Impedance: 75 ohms
Optimum Input Signal: 1 V p-p nominal composite video
Output Signal: 1 V p-p composite video, unity gain
Differential Phase:
Differential Gain: 4%
Signal-to-Noise Ratio: 60 dB (0 dB loss)
Interconnection Distance:
Video device to transmitter: <100 ft (30 m)
Receiver to video device: <100 ft (30 m)
RG 59/u coaxial cable, Belden No. 9259 or equivalent
Optical
Maximum Optical Attenuation: 13 dB
Optical Wavelength: 850 nm
Gain Control: Fully automatic optical (AGC)
Operating Distance: 2.5 miles (4km)
Fiber Type: 62.5 um
Modulation Type: Frequency modulation
Connectors
Power Connector: Detachable screw terminals
Video Input/Output Connector: : BNC
Optical Connector: : ST-type
Indicators
Optical Power: Bicolor LED
Video Status: Bicolor LED
Power
Power Requirements: 13.5-16VDC
Current Requirement: 0.2A
Power Consumption: 3W
Heat Equivalent: 0.2 btu/min (0.05 kg-cal/min)
Safety Standards: UL1950
Radio Frequency Emissions Rating: FCC Class A
European Community (CE) Standards): EN60950
Dimensions
1-3/16 x 4-13/16 x 5-1/8" (30 x 123 x 130mm)
Weight
0.51 lb (0.23kg)
