Ensemble Designs BrightEye 90-A HD Up-, Down-, Cross- & ARC-Converter with Analog Audio

BH #ENBE90A • MFR #BE90-A
Print
Ensemble Designs BrightEye 90-A HD Up-, Down-, Cross- & ARC-Converter with Analog Audio
Special Order
Expected availability: 2-4 Weeks
No Store Display
$3,825.65
OR
$319/mo. suggested payments for 12 Mos.§ when you use the Payboo credit card. Learn More
This item cannot be canceled or returned.
Add to Cart
Free Standard Shipping
Protect Your Gear
Add a protection plan from $168.99
See Options

Business Financing Options

Ask an Expert
800-606-6969

Ensemble Designs BE90 Overview

The BrightEye 90-A HD Up-, Down-, Cross- & ARC-Converter with Analog Audio from Ensemble Designs is a converter that can be used to up-convert, down-convert, or cross-convert analog and digital video signals. The unit can also perform aspect-ratio conversion. A built in frame synchronizer allows you to input asynchronous signals and an external reference input allows for genlock to a house reference. The unit will faithfully pass all vertical interval data and closed-captioning information.

This unit can also handled up to (16) channels of embedded audio and (8) channels of analog audio. Embedded audio is safely bypassed around video processing. Two of the four embedded audio groups are available for mixing. The analog input-output ports can be configured for (8) channels of incoming or outgoing audio. The mixer can also be used with analog audio.

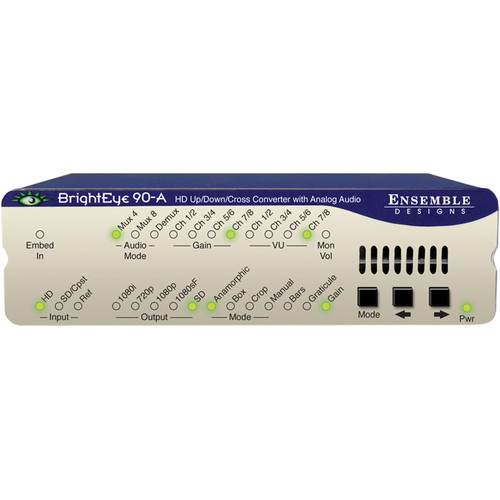

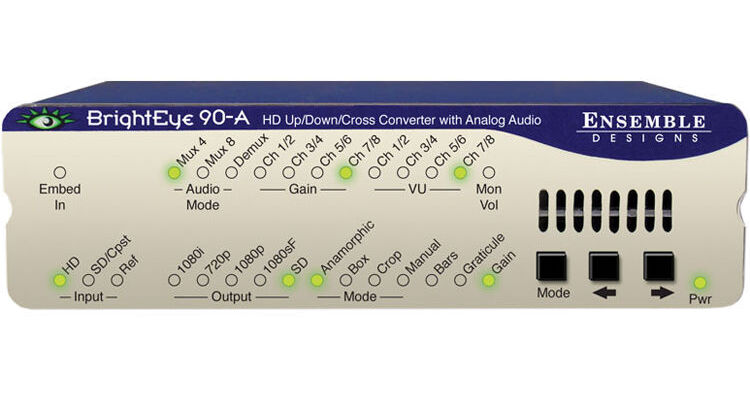

The front-panel interface offers control of input selection, gain control, and test patterns, among other parameters. The unit can also be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms. LEDs on the front panel provide a visual indicator of channel status.

Note:
Please note that a power supply is not included with the unit and must be purchased separately.
Analog & Digital Video Conversion
Use this device to up-, down-, or cross-convert analog and digital video, as well as convert aspect ratios.
Audio Support
This unit handles embedded audio and analog audio streams.
Controls
The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
OS Compatibility
The converter will work on both Windows and Mac operating systems.

Ensemble Designs BE90 Specs

Construction
Metal, plastic
Finish
Blue, silver
Inputs
ANALOG VIDEO INPUT
Quantity: x1
Type: analog composite PAL or NTSC
Resolution: digitized at 12 bits
Impedance: 75Ω
Return loss: >40dB
Input DC: +/-1VDC
Input hum: <100mV

SERIAL DIGITAL INPUT
Quantity: x1
Signal type:
270Mbs SD serial digital (SMPTE 259M)
1.485Gbs HD serial digital (SMPTE 274M or 296M)
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
984 ft (300m) for 270 Mbs
328 ft (100m) for 1.485 Gbs

REFERENCE INPUT
Quantity: x1
Type:
1Vp-p Composite Video
PAL or NTSC
Tri-level sync
Impedance: 75Ω
Return loss: >40dB

ANALOG AUDIO INPUTS
Quantity: x8 (selectable as inputs or outputs)
Type: balanced
Impedance: >15KΩ
Maximum input level: 24dBu
CMRR: >60dB, 20Hz to 10KHz
Quantization: 24 bits, 128x oversampled
Sample rate: 48KHz
Reference level: -10dBu or +4dBu
Frequency response: ±0.1dB, 20Hz to 20KHz
Crosstalk: <106dB
Dynamic range: >106dB

Outputs
ANALOG VIDEO OUTPUT
Quantity: x1
Type: Composite PAL or NTSC
Return loss: >40 dB
Output DC: <100mV

SERIAL DIGITAL OUTPUT
Quantity: x2
Type:
HD serial digital 1.485 Gbs (SMPTE 274M or 296M)
SD serial digital 270Mbs (SMPTE 259M-C)
Processing: 12 and 16 bit
Impedance: 75Ω
Return loss: >15dB
Maximum cable length:
328 ft (100m) for HD
984 ft (300m) for SD
(Belden 1694A or equiv.)
HD standards supported:
1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60Hz
720p (SMPTE 296M -1,2,3) 50, 59.94 or 60Hz
1080p (SMPTE 274M -9,10,11) 23.98,24, 25Hz
1080sF (RP211 -14,15,16) 23.98, 24, 25Hz

ANALOG AUDIO OUTPUTS
Quantity: x8 (selectable as inputs or outputs)
Type: balanced, without transformer
Impedance: 30Ω
Maximum output level: 24dBu
Resolution: 24 bits, 128x oversampled
Reference level: -10dBu or +4dBu
Frequency response: ± 0.1dB, 20Hz to 20KHz
Crosstalk: <106dB
Dynamic range: >106dB

EMBEDDED OUTPUT (in serial output)
Group assignment: two of four groups
Channels: x16 passed
Bit depth: 24 bit

MONITOR OUTPUT
Quantity: x1
Connector: HDMI

AUDIO MONITORING OUTPUT
Quantity: x1  (select from eight channels)

Power
12V, 7W

*100 to 230VAC modular power supply not included
Dimensions
3.5 x 5.625 x 5.5" (40 x 143 x 140mm) including connectors
Weight
Not specified by manufacturer
Packaging Info
Package Weight
2.79 lb
Box Dimensions (LxWxH)
10.6 x 9.8 x 3.2"
