Ensemble Designs BrightEye 56 HD/SD/Analog Test Signal and Sync Pulse Generator

BH #ENBE56 • MFR #BE56
Print

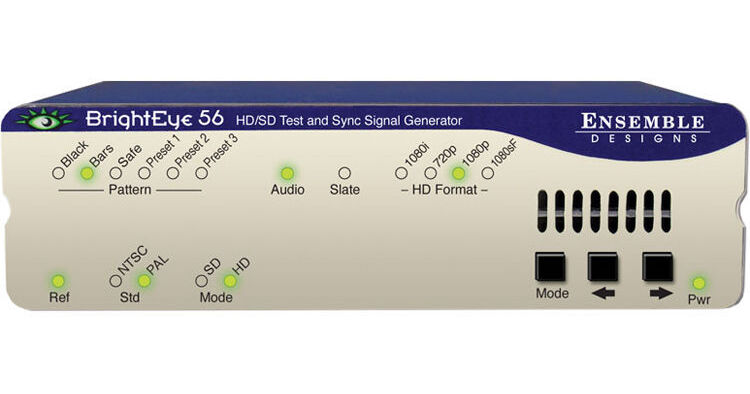

Ensemble Designs BrightEye 56 HD/SD/Analog Test Signal and Sync Pulse Generator
Key Features
  • Master or Slave Reference Generator
  • Over 30 HD and SD Test Signals/Patterns
  • Timecode Generator
  • Sync Pulse Generator
The Ensemble Designs BrightEye 56 is an HD/SD/analog test signal and sync pulse generator designed to provide accurate and versatile synchronization for audio and video engineers in remote trucks, post-production facilities, and mobile video production setups. It offers the ability to be a master or slave generator and is genlockable.
More Details
Special Order
Expected availability: 3-5 Weeks
No Store Display
$3,168.31
+
Save the Tax‡
or Pay $265/mo. suggested payments for 12 Mos.§ when you use the Payboo credit card. Learn More
This item cannot be canceled or returned.
Free Standard Shipping
Protect Your Gear
Add a protection plan from $439.99
See Options
Used for $1,264.95

Business Financing Options

Ask an Expert
800-606-6969

Ensemble Designs BrightEye 56 Overview

The Ensemble Designs BrightEye 56 is an HD/SD/analog test signal and sync pulse generator designed to provide accurate and versatile synchronization for audio and video engineers in remote trucks, post-production facilities, and mobile video production setups. It offers the ability to be a master or slave generator and is genlockable.

A single BNC reference input accepts composite video (PAL or NTSC), tri-level sync, or 10 MHz signal. Seven BNC jacks provide dedicated composite, tri-level sync, SDI, and AES outputs, plus there are three programmable BNC outputs. Also, a two-channel analog output is available on a terminal block connection.

The BrightEye 56 boasts over 30 HD and SD test signals and patterns, a timecode generator, and a sync pulse generator. Many of its settings are accessible via front-panel controls, and full access to all configurable options can be unlocked via BrightEye software on a USB-connected computer.

Genlockable master or slave reference generator
Over 30 HD and SD test signals and patterns including Color Black, Bars, Crosshatch, Multi-burst, and SDI Checkfield (Pathogenic)
Internal timecode generator feeds DVITC to the SDI outputs and VITC to the composite outputs
6 Hz sync pulse generator
One BNC reference input
Two BNC composite outputs
Two BNC SDI outputs
Two BNC tri-level sync outputs
Three BNC programmable outputs (selectable between AES, LTC, Word Clock, or 6 Hz Pulse)
One BNC AES output
Two-channel terminal block analog output
Front-panel controls for many settings
Complete control available via BrightEye software on a computer (USB connection required)

Ensemble Designs BrightEye 56 Specs

Reference Input
1 x BNC (1 V P-P composite video PAL or NTSC, tri-level sync, or 10 MHz)
Outputs
2 x BNC (composite)
2 x BNC (tri-level sync)
2 x BNC (SDI)
1 x BNC (AES)
3 x BNC (programmable)
1 x Terminal block (2-channel)
USB
1 x USB Type-B
Signal Type
Composite: NTSC/PAL
Serial Digital: 270 Mb/s SD (SMPTE 259M), 1.485 Gb/s HD (SMPTE 274M, 292M, or 296M)
AES: AES3id, 1 kHz tone or silence
Analog: 1 kHz tone or silence
Programmable: AES, LTC, Word Clock, or 6 Hz pulse (selectable)
Impedance
BNC: 75 Ohms
Analog: 30 Ohms, balanced
Return Loss
Composite: >40 dB (DC to 5.5 MHz)
Tri-Level Sync: >30 dB (to 30 MHz)
Serial Digital: >15 dB for 270 Mb/s, >15 dB for 1.485 Gb/s
Composite Output
Frequency Response: -0.1 dB (10 kHz to 5 MHz)
Output DC: ±50 mV
K Factor: <1%
Differential Phase: <1°
SCH Phase: ±5°
Maximum Cable Length
984.3' / 300 m for 270 Mb/s
328.1' / 100 m for 1.485 Gb/s
229.7' / 70 m for 2.97 Gb/s
(Belden 1694A cable)
Sync Output
DC ±50 mV
Accuracy
Internal: TCXO
PAL Fsc: 4.43361875 MHz ± 1 Hz
NTSC Fsc: 3.579545 MHz ± 1 Hz
601 Fs: 27 MHz ± 5 Hz
Long Term Drift: <1 ppm/year
Analog Jitter: <1 ns
Digital Jitter: <0.2 UI (0.13 UI typical)
Supported Standards
1080i (SMPTE 274M -4, 5, 6) 50, 59.94, or 60 Hz
720p (SMPTE 296M -1, 2, 3) 50, 59.94, or 60 Hz
1080p (SMPTE 274M -9, 10, 11) 23.98, 24, 25 Hz
1080sF (RP211 -14, 15, 16) 23.98, 24, 25 Hz
625i 50, 525i 59.94, Composite PAL, NTSC
AES Audio
Resolution: 24-bit
Analog Audio Output
Reference Level: -10 to +4 dBu, adjustable
General Specifications
Temperature Range
32 to 104°F / 0 to 40°C (ambient)
Relative Humidity
0 to 95% (non-condensing)
Altitude
0 to 10,000' / 0 to 3048 m
Power Requirement
12 VDC, 1200 mA (100 to 230 VAC modular power supply)
Dimensions
5.6 x 1.7 x 6.0" / 143 x 42 x 152 mm (including connectors and flange)
Weight
1.4 lb / 0.7 kg
Packaging Info
Package Weight
2.525 lb
Box Dimensions (LxWxH)
9.9 x 9.4 x 3.2"
