Pelco MX4004CD Genex Multiplexer

BH #PEMX4004CD • MFR #MX4004CD
Print

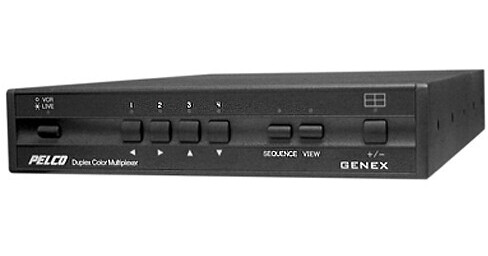

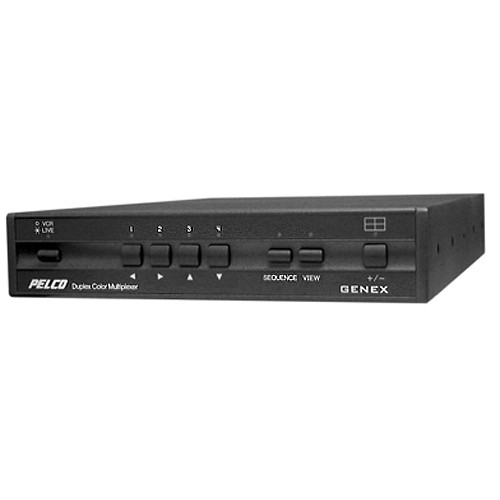

Pelco MX4004CD Genex Multiplexer
Key Features
  • Full Duplex Operation
  • Simultaneous Viewing up to 4 Cameras
  • Advanced Digital Video Processing
  • "Covert" Monitoring Feature
The Pelco MX4004CD Genex Multiplexer is a high-performance full duplex color multiplexer that allows you to view feeds from up to 4 different cameras at the same time. With advanced digital video processing, the unit provides high-quality full-screen displays and ensures image quality and clarity. The unit comes with a unique "Covert" feature that allows you to record the feeds from particular cameras without having it displayed. Compatible with SVHS VCRs and monitors (main output), the multiplexer has 4 looping inputs and 2 independent monitor outputs.

The on-screen programming menus and multi-language support make for easy and faster set-up. The multiplexer comes with an on-screen alphanumeric display that shows essential information such as 12-character camera titles, time, date, and alarm, and alarm-based video capturing/playback.

More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

Pelco MX4004CD Overview

The Pelco MX4004CD Genex Multiplexer is a high-performance full duplex color multiplexer that allows you to view feeds from up to 4 different cameras at the same time. With advanced digital video processing, the unit provides high-quality full-screen displays and ensures image quality and clarity. The unit comes with a unique "Covert" feature that allows you to record the feeds from particular cameras without having it displayed. Compatible with SVHS VCRs and monitors (main output), the multiplexer has 4 looping inputs and 2 independent monitor outputs.

The on-screen programming menus and multi-language support make for easy and faster set-up. The multiplexer comes with an on-screen alphanumeric display that shows essential information such as 12-character camera titles, time, date, and alarm, and alarm-based video capturing/playback.

Performance
Full Duplex Operation
Allows you to view a live feed while simultaneously recording feeds from multiple cameras on a VCR. You can organize and streamline your set-up by monitoring multiple feeds from a central location.
Simultaneous Viewing of up to 4 Camera Feeds
Allows you to view/record/playback the feeds from up to 4 different cameras at the same time (multi-camera display) or in a sequential manner; this not only eases monitoring by ensuring comprehensive coverage but also gives you the flexibility to prioritize feeds as and when needed.
Advanced Digital Video Processing
Provides both clarity and smoother multi-camera displays.
"Covert" Recording/Monitoring Feature
Allows you to record the feeds from cameras without having them displayed during live view or during playback.
Compatible with SVHS VCRs and Monitors (Main Output)
Inputs and outputs
4 Looping Video Inputs
You can display the feed from any of the 4 cameras or any other external device, including the output from any external monitor or switcher, on any display monitor connected to it.
2 Independent Monitor Outputs
1 main monitor output (with full-screen call-up, multi-camera display, VCR playback, sequencing) and 1 spot monitor output (with full-screen call-up, sequencing, alarm-based trigger).
Operations
On-screen Programming Menus
Password-protected menus make the set-up considerably easy and faster.
Multi-language Support
Supports multiple languages: English, French, German, and Spanish.
On-screen Alphanumeric Display
Shows essential information such as 12-character camera titles, time, date, and alarm.
Alarm-based Video Capture/Playback
Can be set to initiate recording or display over a certain feed upon a given pre-set alarm. This allows you to pre-set a coverage schedule in advance as per your needs.
Pan, Tilt, and Lens Control via Coaxitron
When used with the KBD4000 full-function keyboard controller, the multiplexer supports pan, tilt, and lens control via standard 15-bit Coaxitron receivers (all pan, tilt, and lens functions; auxiliary on/off) and standard 32-bit Coaxitron receivers (all pan, tilt, and lens functions; auxiliary on/off; setting and calling presets and patterns). This allows you to control the camera lens and make basic adjustments easily from the control bay itself.
Remote Control via RS-485
Supports remote control and operations over the RS-485 port, thereby giving you the option of being able to remotely control the entire set-up from outside the control bay.
Playback Support for Other Manufacturers' Tapes
Allows you to play tapes made with other manufacturers' multiplexers. However, in the case of Dedicated Micros models DM/SPG4/S/N/090 and DM/SPC4/D/N/6M, proper programming must be done to ensure that the tapes are compatible with the MX4004CD. Moreover, tapes made using the DM model SPR2AS/C/M/M are incompatible with the Pelco MX4004CD.
Certifications/Patents
<b></b>
FCC-Class B, UL/cUL-listed, C-tick
Other Features
<b></b>
Operating voltage - 12VDC (± 10 %)
<b></b>
Power - less than 10 watts
<b></b>
Optional rack mount

Pelco MX4004CD Specs

Video
  • Input Level: 1 Vp-p, composite

  • Video Standard: NTSC 525 lines, 60 fields/second

  • Digital Image: 720 (H) x 480 (V) pixels full screen 1,440 bytes horizontal memory 12 MB display image memory 8-bit luminance, 256 shades of gray 8-bit chrominance, over 16 million colors

  • Format: CCIR 601 4:2:2

  • Sampling Rate: 13.5 MHz

  • Geometric Error: Less than 1 percent, all modes

  • Analog Processing
    Bandwidth: 20 MHz
    Differential Phase: Less than 2 degrees
    Differential Gain: Less than 2 percent

  • Character Generator: Bit mapped

  • Display: White with black border

  • Program Menus: Raster background with white characters Program Menus Raster background with white characters
    • Electrical
  • Operating Voltage: 12 VDC (± 10 %)

  • Power: Less than 10 watts

  • Video Inputs: Four, BNC, looping with rear DIP switch selectable termination, 75 ohms or Hi-Z

  • Monitor Outputs - Two
    Main: BNC, 75 ohms / 4-pin mini-DIN, Y/C output (SVHS)
    Spot: BNC, 75 ohms

  • VCR Inputs - One
    VCR In: BNC, composite, 75 ohms / 4-pin mini-DIN, Y/C input (SVHS)

  • VCR Outputs - One
    VCR Out: BNC, composite, 75 ohms / 4-pin mini-DIN, Y/C output (SVHS)

  • Alarm Inputs: 4 individually programmable for N.O. or N.C.

  • Alarm Outputs: One
    • Operating Temperature
    32 - 122°F (0 - 50°C)
    Construction
    Aluminum with black finish
    Dimensions
    8.4 x 1.7 x 12.2" (21.3 x 4.3 x 31cm)
    Weight
    4 lbs (1.8kg)
