MuxLab 500018 S-Video/Audio GLI Balun
Key Features
  • Transmits S-Video/Stereo Audio Channel
  • Supports Transmission via Cat5E/6 UTP
  • Transmits S-Video Signal up to 1000'
  • Transmits Audio Signal up to 3250'

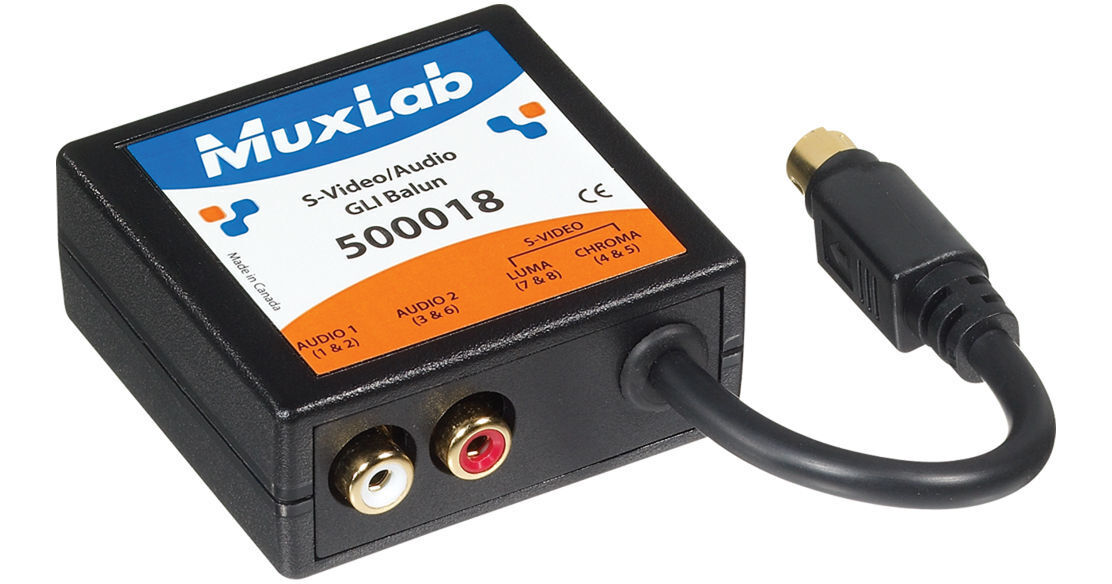

The 500018 MuxLab S-Video/Audio GLI Balun allows transmission of an S-Video channel and a stereo audio channel via Cat5E/6 UTP (Unshielded Twisted Pair) cable. It transmits S-Video signals up to 1000’ (305m) and stereo audio signal up to 3250’ (990m).
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

MuxLab 500018 Overview

The 500018 MuxLab S-Video/Audio GLI Balun allows transmission of an S-Video channel and a stereo audio channel via Cat5E/6 UTP (Unshielded Twisted Pair) cable. It transmits S-Video signals up to 1000’ (305m) and stereo audio signal up to 3250’ (990m).

The balun can work in conjunction with other standard MuxLab S-Video baluns such as 500016, 500017, 500038, and 500200. With an enclosure made of fire retardant plastic, the compact balun measures 2.40 x 2.25 x 1.00" and features GLI (Ground Loop Isolation) of up to 50VDC on the S-Video channel. It also includes a 6” dual RCA jumper cable for ease of installation.

Providing hassle-free wiring, the balun connects to S-Video equipment such as DVD players, VCR, satellite receivers, MPEG players, laptops, notebooks, monitors, LCD projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, S-Video splitters, and S-Video converters.

Supporting S-Video equipment, the S-Video/Audio GLI Balun can be used in classroom, residential, and boardroom AV systems.

Allows transmission of an S-Video channel and a stereo audio channel via Cat5E/6 UTP cable
Transmits S-Video signals at a maximum distance of up to 1000' (305m) and stereo audio signal up to 3250' (990m)
Can work in conjunction with other standard MuxLab S-Video baluns such as 500016, 500017, 500038, and 500200
Enclosure made of fire retardant plastic
Compact design - 2.40 x 2.25 x 1.00"
GLI (Ground Loop Isolation) of up to 50VDC on the S-Video channel
Includes a 6" dual RCA jumper cable for ease of installation

MuxLab 500018 Specs

Environment
S-Video equipment
Transmission
Transparent to the user
Bandwidth
Video
DC to 6 MHz

Audio
600 ohms: 73 Hz to 156 KHz; @ 1000' (305m)
1.2 Kohms: 128 Hz to 91 KHz; @ 1000' (305m)
Impedance
Video: 75 ohms
Audio: 600 ohms min.
Maximum Input
1.1Vp-p
Insertion Loss
Video
Less than 2 dB per pair over the frequency range from DC to 6 MHz

Audio
600 ohms: < 3 dB per pair
1.2 Kohms: <1.9 dB per pair
Return Loss
Greater than 15 dB over the frequency range
Common Mode Rejection
Greater than 40 dB over the frequency range
Maximum Distance
Video Cat5e/6 UTP: 1000' (305m)
Audio Cat5e/6 UTP: 3250' (990m)
Pins
Video
S-Video Luma: pins 7 [R] & 8 [T]
S-Video Chroma: pins 4 [R] & 5 [T]
(Reverse Polarity Sensitive)

Audio
Audio 1: pins 1 [R] & 2 [T]
Audio 2: pins 3 [R] & 6 [T]
Cable
24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz; Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (305m) at 1 MHz
Ground Loop Isolation
Up to 50VDC on the S-Video channel
Connectors
1 4-pin Mini DIN
2 RCA audio jacks
1 RJ45
Includes 6" dual-RCA stereo audio cable
Up to 12' (3.7m) of audio cable (not included) may be used with the 500017
Operating Temperature
32 ~ 131°F (0 ~ 55°C)
Enclosure
Fire retardant plastic
Dimensions
2.4 x 2.3 x 1" (6.1 x 5.7 x 2.5cm) - plus 5" (127mm) S-Video lead
Weight
3.1 oz (89g)
Packaging Info
Package Weight
0.3 lb
Box Dimensions (LxWxH)
5.4 x 4.3 x 1.3"
