MuxLab 500134 Passive CCTV Hub Plus

BH #MUPHP • MFR #500134
Print

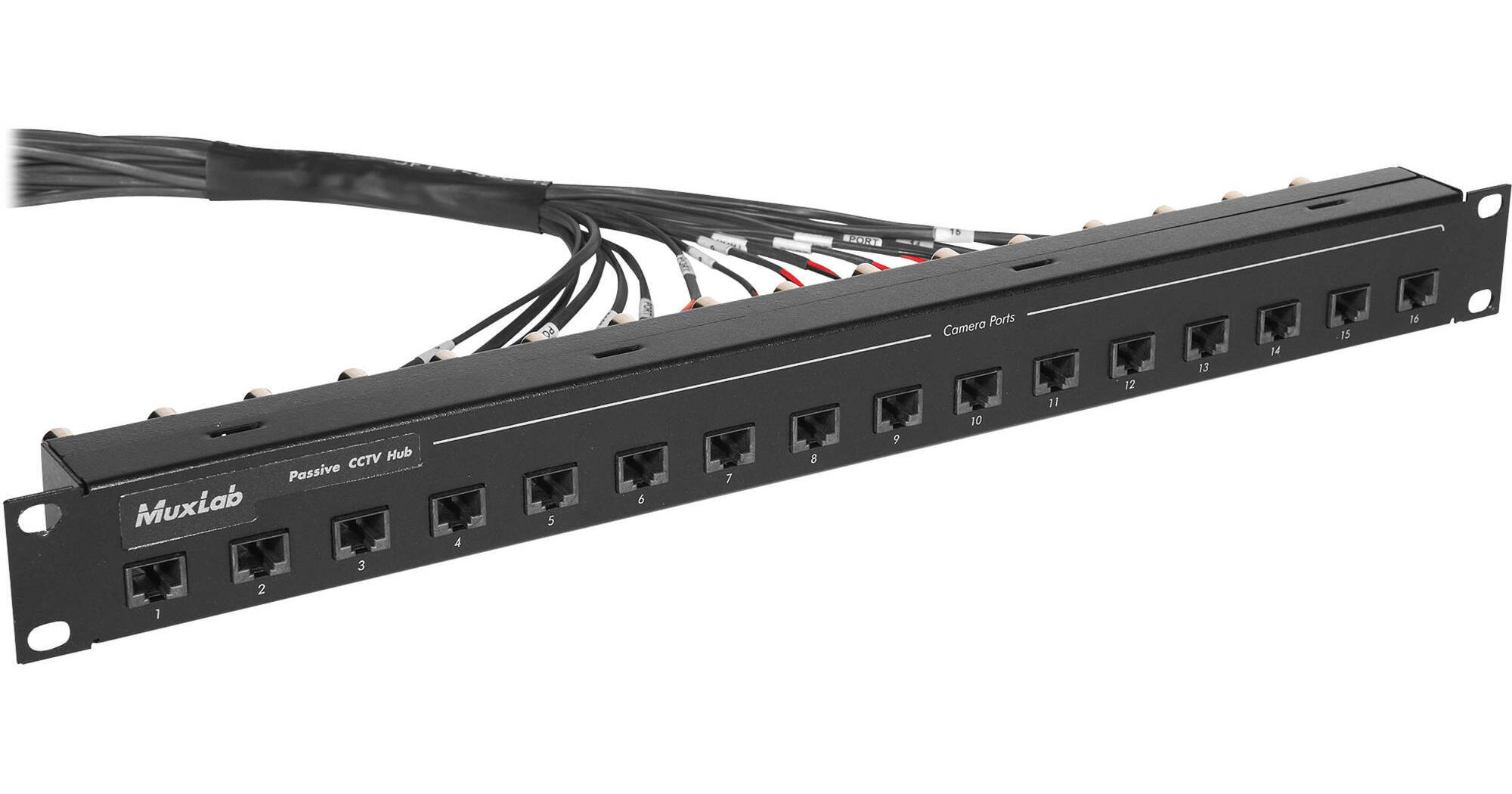

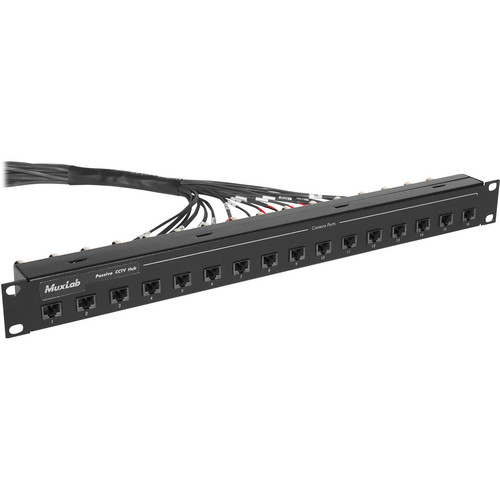

MuxLab 500134 Passive CCTV Hub Plus
Key Features
  • 16 Ports with UTP Video Output
  • Color Signals up to 1200' via Cat3
  • Color Signals up to 2200' via Cat5
  • B&W Signals up to 1500' via Cat3
The MuxLab 500134 Passive CCTV Hub Plus allows transmission of video, remote power and PTZ control using a Cat5E/6 cable, eliminating the need for multiple cables.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

MuxLab 500134 Overview

The MuxLab 500134 Passive CCTV Hub Plus allows transmission of video, remote power and PTZ control using a Cat5E/6 cable, eliminating the need for multiple cables.

Integrated 16-channel 18/2 power cable assembly allows you to connect the hub to a 16-channel CCTV power supply, thus enabling ease of installation. The 1U rack-mountable, 16-port hub supports transmission of color signals up to 1200' (365m) via Cat3, which can be extended up to 2200' (670m) via Cat5E/6. For black and white signals, the maximum transmission distance is up to 1500' (457m) via Cat3 and can be extended up to 2500' (762m) via Cat5E/6.

Made of black anodized aluminum, the compact hub measures 19 x 1.75 x 1.5 " (48.26 x 4.4 x 5.1 cm), and features port configuration switch to set each port as Pass-Thru (500022) or Power-Thru mode (500024/500029). The Pass-Thru hub transmits remote power up to 350' (107m) via 2 twisted pair cables while the Power-Thru transmits up to 518' (170m) via 3 twisted pair cables at 24VAC. The 2-wire PTZ control transmits up to 4000' (1.2km) via one UTP cable.

Providing hassle-free cabling solution, the passive hub connects to the CCTV surveillance equipment that includes cameras, DVRs, video switchers, monitors, multiplexers, and other CCTV equipments.


Allows transmission of video, remote power and PTZ control using a Cat5E/6 cable, eliminating the need for multiple cables
Integrated 16-channel 18/2 power cable assembly allows you to connect the hub to a 16-channel CCTV power supply, thus enabling ease of installation
Transmits color signals up to 1200' (365m) via Cat3; distance can be extended up to 2200' (670m) via Cat5E/6
Transmits black and white signals up to 1500' (457m) via Cat3; distance can be extended up to 2500' (762m) via Cat5E/6
Port configuration switch to set each port as Pass-Thru (500022) or Power-Thru mode (500024/500029)
Transmits Pass-Thru remote power up to 350' (107m) via 2 UTP cables and Power-Thru remote power up to 518' (170m) via 3 UTP cables at 24VAC
2-wire PTZ control transmits up to 4000' via 1 UTP cable
Pin configuration table on unit
Made of black anodized aluminum
1U rack-mountable
Compact design - 19 x 1.75 x 1.5 " (48.26 x 4.4 x 5.1 cm)
Connects to the CCTV surveillance equipment that includes cameras, DVRs, video switchers, monitors, multiplexers, and other CCTV equipments

MuxLab 500134 Specs

Environment
Composite video; NTSC, PAL, SECAM
Devices
CCTV cameras, DVRs, monitors, switchers, multiplexers and other CCTV equipt
Transmission
Transparent to the user
Video
Bandwidth
DC to 8 MHz
Maximum Input
1.1Vp-p
Insertion Loss
Less than 2 dB per pair over the frequency range from DC to 8 MHz
Return Loss
Greater than 15 dB over the frequency range from DC to 8 MHz
Common Mode Rejection
Greater than 40 dB @ 8 MHz
Maximum Distance Colour
Cat 3 -1,200' (365m); Cat5e/6 - 2,200' (670m)
Maximum Distance Black & White
Cat 3 -1,500' (457m); Cat5e/6 - 2,500' (762m)
Remote Power
Switch Mode
Pass-Thru Mode (500022)
Number of twisted pairs: 2
Max. Distance @ 24VAC:
5 VA: 350 ft (107m) 10 vA: 175 ft (53m)
20 VA: 90 ft (30m) 30 vA: 60 ft (20m)

Power-Thru Mode (500024/500029)
Number of twisted pairs: 3
Max. Distance @ 24VAC:
5 VA: 518 ft (170m) 10 VA: 259 ft (85 m)
20 VA: 130 ft (43 m) 30 VA: 86 ft (28 m)
Maximum Input Voltage
50 Volts (AC RMS/DC)
Recommended Class II PSU with fuse protection per port
Maximum Current Rating
4.5A (AC RMS/DC)
2-Wire PTZ Control
Wiring
Remote 2-wire PTZ control supported via one (1) twisted pair
Maximum Distance
Up to 4,000 ft (1.2 km) depending on the PTZ camera vendor
Maximum Power Rating
50 Volts (AC RMS/DC); 3A (AC RMS/DC)
Mechanical & Environmental
Cable - UTP
24 AWG or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz
Cable - Coax
Impedance: 75 Ω at 1 MHz. (RG59/U)
Max. 25 ft. of coax allowed end to end
Connectors
Video: 16 BNC-F Power: 16 2-pole terminals. Control: 16 2-pole terminals. Includes 16-channel 24" (61cm) 18AWG/2-wire power cable assembly terminated on 4-pole screw terminal blocks (Packaged separately)
Terminal blocks mate with hub
Combined signals: 16 RJ45 jacks
Port Configuration Switch
Sets each port as Pass-Thru (500022) or as Power-Thru (500024/500029)
Temperature
Operating: 0° to 55°C
Storage:-20° to 85°C
Humidity: up to 95%
Enclosure
Black, anodized aluminum
Dimensions
19 x 1.75 x 1.5" (48.26 x 4.4 x 5.1 cm)
Weight
2.6 lb (1.2kg)
Packaging Info
Package Weight
2.85 lb
Box Dimensions (LxWxH)
21 x 5 x 4.5"
