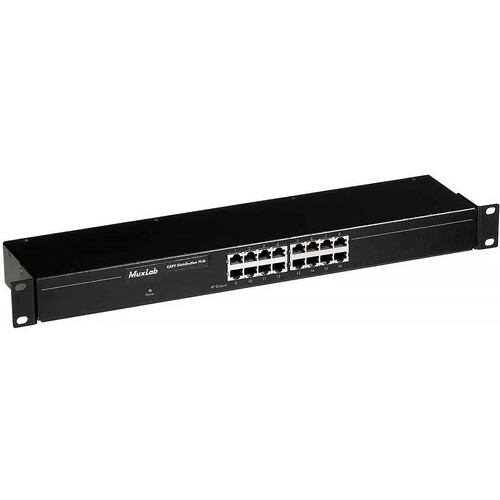

MuxLab 500304 CATV Distribution Hub (16 Ports, 220-240V)

BH #MUCATVH16220 • MFR #500304
Print
MuxLab 500304 CATV Distribution Hub (16 Ports, 220-240V)
Key Features
  • Supports Bandwidth up to 900 MHz
  • Supports CATV/Internet/Digital Cable
  • Bi-directional Transmission via Cat5
  • Built-in RF Amplifier
The MuxLab 500304 CATV Distribution Hub (16 Ports, 220-240V) allows distribution of terrestrial broadband RF video (bandwidth up to 900 MHz) to several RF receivers via Cat5 UTP (Unshielded Twisted Pair) cables.
More Details
Special Order
Expected availability: 7-14 Business Days
No Store Display
$1,882.00
+
Save the Tax‡
or Pay $157/mo. suggested payments for 12 Mos.§ when you use the Payboo credit card. Learn More
Add to Cart
Free Standard Shipping
Protect Your Gear
Add a protection plan from $89.99
See Options
Ask an Expert
800-606-6969

MuxLab 500304 Overview

The MuxLab 500304 CATV Distribution Hub (16 Ports, 220-240V) allows distribution of terrestrial broadband RF video (bandwidth up to 900 MHz) to several RF receivers via Cat5 UTP (Unshielded Twisted Pair) cables.

Working in conjunction with MuxLab's passive CATV baluns (500006 and 500302) and other standard RF video equipment, the hub provides a complete cabling solution. It features built-in gain amplification and port buffering and its RF amplifier enhances low power signals to ensure low insertion loss. Besides Cat5 being a cheaper alternative to coaxial cabling, the use of the hub also makes changes and additions easier.

Supporting broadband CATV, VHF, FM, broadband internet, and digital cable, the 16 ports hub is ideal for use in apartments, condominiums, hotels, offices, schools, hospitals, and trading floors.

16 ports allow distribution of terrestrial broadband RF video to several RF receivers via Cat5 UTP
Works in conjunction with MuxLab's passive CATV baluns and other RF video equipment for a complete cabling solution / hassle-free wiring
Compatible with other MuxLab baluns (500006 and 500302)
Features built-in RF amplifier, gain amplification and port buffering
Low insertion loss
Allows use of Cat5 cables as an alternate to coaxial cables, making changes and additions easier
Anodized aluminum enclosure
1U rack-mountable, compact design - 19 x 3.9 x 1.75" (48.3 x 9.9 x 4.4 cm)
Operates in 0 - 40° C
Supports broadband (bandwidth up to 900 MHz) CATV, VHF, FM, broadband internet, and digital cable
Bi-directional transmission for internet (5-42 MHz)
Used in apartment, residential, condominiums, hotels, offices, schools, hospitals and trading floors
Meets FCC, CE, and RoHS regulatory standards

MuxLab 500304 Specs

Environment
Broadband CATV, VHF, FM, broadband Internet, digital cable
Devices
Set-top tuners, RF splitters, RF amplifiers, modulators, combiners, re-processors, cable modems
Transmission
Transparent to the user
3dB Bandwidth
5MHz to 900 MHz
Video Channels Supported
CATV 2-142, VHF channels 2-13, FM broadcast band
5-42Hz return path for Internet
Signal Gain - Forward path (S21)
55-450 MHz: Tilt of -2.0 dB to 13.0 dB
450-900 MHz: 9.6 dB < S21 < 13.1 dB
Signal Gain - Reverse path (S12)
5-42 MHz: -6.7 dB < S12 < .4 dB
Return Loss
7 dB from 5 to 42MHz
10 dB from 55 to 900 MHz
Common Mode Rejection Ratio
30 dB from 5 to 493 MHz
20 dB from 493 to 547 MHz
30 dB from 547 to 900 MHz
Mounting
1U Rack-mount
Dimensions
19 x 3.9 x 1.75" (48.3 x 9.9 x 4.4cm)
Weight
2.6 lb (1.2 kg)
Maximum Distance
Cat 5 UTP - Dependant on channel frequency, input power and receiver sensitivity
LED Indicators
Power: One (1) green LED
Cable-UTP
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000 ft at 1 MHz
Cable - F
Impedance: 75 ohms at 1 MHz (RG6)
Connectors
RF Input: "F" connector
RF Outputs: Sixteen (16) RJ45S
RJ45 Pin Configuration
RJ45 Pins 7& 8
Compatible MuxLab Baluns
500006 (550MHz), 500302 (900 MHz)
Power Requirements
12VDC @ 400 mA
Power Supply
Desktop 110-240V switching power supply
Input: 100-240V, ~0.5A Max, 50-60Hz
Output: +12V, 1.25A. Output Power: 15W Max
Detachable AC power cord
Temperature
Operating : 0 to 40º F (32 to 104º C)
Storage : -10 to 70º F (-50º to 158º C)
Humidity : up to 95% non-condensing
Enclosure
Black anodized aluminum
Regulatory
FCC, CE, RoHS
