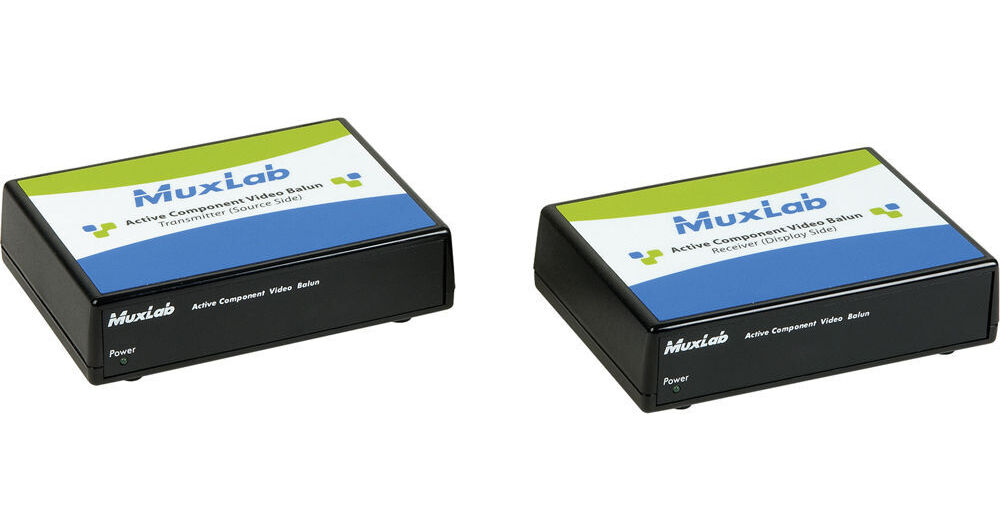

MuxLab 500090 Active Component Video Balun Kit

BH #MUACVBK • MFR #500090
Print

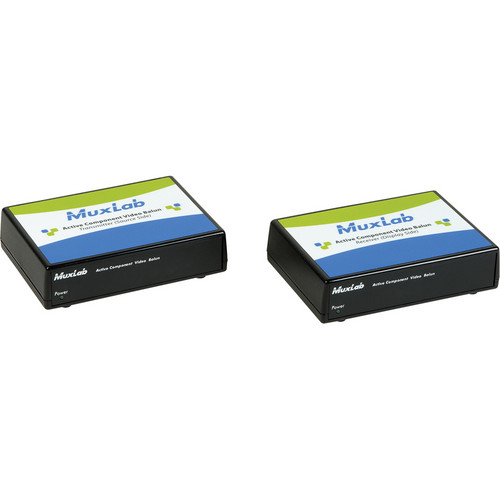

MuxLab 500090 Active Component Video Balun Kit
Key Features
  • Transmits Video/Audio Signal
  • Supports Transmission up to 1000' (305m)
  • Transmission via Cat5E/6 UTP Cable
  • Supports Resolution up to 1080p
The MuxLab 500090 Active Component Video Balun Kit allows transmission of component video, analog stereo audio and/or digital audio, plus one IR-emitter signal up to 1000' (305m) in point-to-point configuration using Cat5E/6 cable at 480i/p. In addition, it supports simultaneous stereo audio and digital audio transmission.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

MuxLab 500090 Overview

The MuxLab 500090 Active Component Video Balun Kit allows transmission of component video, analog stereo audio and/or digital audio, plus one IR-emitter signal up to 1000' (305m) in point-to-point configuration using Cat5E/6 cable at 480i/p. In addition, it supports simultaneous stereo audio and digital audio transmission.

For use in the CCTV applications, the balun features manual gain compensation adjustment that enhances the brightness and sharpness of the video signal, based on the actual cable conditions. The active component video balun kit allows for IR-emitter pass-through connectivity.

Providing a hassle-free cabling solution, the balun connects to equipment that includes DVD players, satellite receivers, PCs, laptops, CRT monitors, LCD monitors, plasma screens, and DLP projectors.

The 500090 Active Component Video Balun Kit is ideal for use in digital signage, residential, boardroom, classroom, and home theater video systems.

Allows transmission of component video, analog stereo audio and/or digital audio, plus one IR-emitter signal up to 1000' (305m) in point-to-point configuration using Cat5E/6 cable at 480i/p
Transmits signals up to 500' (152m) via Cat5E/6 at 1080p
Supports simultaneous stereo audio and digital audio transmission
Manual gain compensation adjustment - enhances the brightness and sharpness of the video signal, based on the actual cable conditions
Supports IR-emitter pass-through connectivity
Ground loop isolation
Made of ABS fire retardant plastic
Connects to equipment that includes DVD players, satellite receivers, PCs, laptops, CRT monitors, LCD monitors, plasma screens, and DLP projectors
Ideal for use in digital signage, residential, boardroom, classroom, and home theater video systems

MuxLab 500090 Specs

Environment
Component Video with Analog Stereo and/or Digital Audio, IR-emitter Pass-through
Devices
DVD Players, Satellite Receivers, PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors
Transmission
Transparent to the user
Video Bandwidth
Up to 220 MHz (1080p)
3dB Bandwidth
3dB Analog Audio BW: 20 Hz to 20 kHz over the distance range
Input Impedance
Video & Digital Audio RCA: 75 ohms; Stereo Audio: 2.2 Kohms
Output Impedance
Cat 5e: 100 ohms
Connectors: Transmitter
Component Input: 3 x female RCAs
Stereo Audio Input: 2 x female RCAs
Digital Audio Input: female RCA
IR-emitter Pass-through: 2 position terminal block
Transmitter Output (Cat 5e): RJ45 shielded
Connectors: Receiver
Receiver Input (Cat 5e): RJ45 shielded
Component Output: 3 x female RCAs
Stereo Audio Output: 2 x female RCAs
Digital Audio Output: female RCA
IR-emitter Pass-through: 2 position terminal block
Maximum Distance
Component Video (Y/Pb/Pr) via Cat 5e UTP Cable (or better)
480i/p: 1000' (305m)
720p/1080i: 500' (152m)
1080p: 500' (152m)

Audio (Stereo/Digital) via Cat 5e UTP Cable (or better)
Analog Stereo Audio: 1000' (305m)
Digital Audio: 1000' (305m)
Brightness Adjustment
Brightness control via rotary switch on receiver (factory default setting: zero gain)
Sharpness Adjustment
Sharpness control via potentiometer on receiver (factory default: fully counter clockwise)
LED Indicators
Tx Balun: Power: One (1) green LED
Rx Balun: Power: One (1) green LED
Cable
Cat 5e unshielded twisted pair (or better)
Power Supply
Power Supplies: 2
110-240V/12VDC/0.5A, 12VDC power jacks
Removable AC blades
Temperature
Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 158°F (-10 to 70°C)
Humidity: Up to 95% non-condensing
Enclosure
Black ABS fire retardant plastic
Dimensions
6 x 4.25 x 1.50" (15.3 x 10.8 x 3.8 cm)
Weight
2.8 lb (1.3 kg)
Regulatory
FCC/CE, RoHS
Packaging Info
Package Weight
2.6 lb
Box Dimensions (LxWxH)
14 x 8.7 x 4.5"
