Analog Way Smart Edge Hi-Resolution Mixer Seamless Switcher

BH #ANSTE100 • MFR #STE100
Print

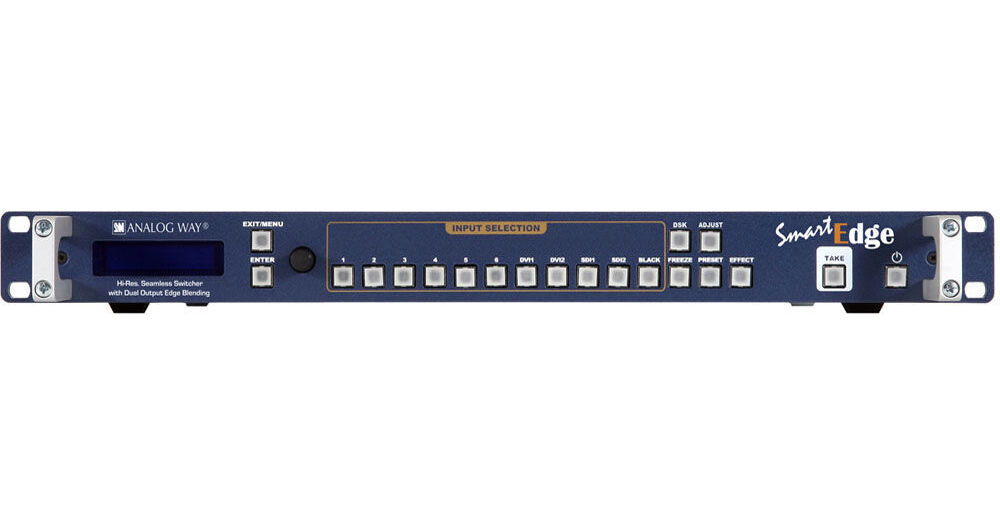

Analog Way Smart Edge Hi-Resolution Mixer Seamless Switcher
Key Features
  • Dual Output Edge Blending
  • 10 Inputs with 2 DVI-I / 2 SD / HD-SDI
  • HDCP Compliant
  • Smooth Move Effect
The Analog Way Smart Edge Hi-Resolution Mixer Seamless Switcher, with dual output edge blending, is useful for large screen and low cost installations. Ten inputs are provided including 2 DVI-I and 2 SD / HD-SDI inputs. In addition to being HDCP compliant, the switcher features full digital processing, dynamic fit, Chroma / Luma Key / DSK title, and smooth move effect. Dynamic fit allows you to automatically adjust the layer to fit the image borders. Keying and titling can be done with an external remote control. Transitions of fade (dissolve), cut, clean cut, wipe, and slide allow for a seamless operation.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

Analog Way Smart Edge Overview

The Analog Way Smart Edge Hi-Resolution Mixer Seamless Switcher, with dual output edge blending, is useful for large screen and low cost installations. Ten inputs are provided including 2 DVI-I and 2 SD / HD-SDI inputs. In addition to being HDCP compliant, the switcher features full digital processing, dynamic fit, Chroma / Luma Key / DSK title, and smooth move effect. Dynamic fit allows you to automatically adjust the layer to fit the image borders. Keying and titling can be done with an external remote control. Transitions of fade (dissolve), cut, clean cut, wipe, and slide allow for a seamless operation.

Dual output edge blending
For large screen and low cost installations
10 inputs provided (including 2 DVI-I and 2 SD / HD-SDI inputs)
HDCP compliant
Features full digital processing, dynamic fit, Chroma / Luma Key / DSK title, and smooth move effect
Dynamic fit - allows you to automatically adjust the layer to fit the image borders
Keying and titling can be done with an external remote control
Transitions of fade (dissolve), cut, clean cut, wipe, and slide - allow for a seamless operation

Analog Way Smart Edge Specs

Universal Inputs
6 Universal Inputs - Analog Inputs (All inputs #1 to #6)

SD-TV:

  • Composite, S.Video, YUV, RGsB or RGBS
  • NTSC: 15.735 kHz / 60 Hz
  • PAL / SECAM : 15.625 kHz / 50 Hz

ED / HD-TV:

60 Hz – 1080psF / 24, 25 or 30 Hz

  • RGsB, RGBS or YUV
  • 480p / 60 Hz – 576p / 50 Hz - 720p, 1080i, 1035i / 50 or 60 Hz – 1080p / 24, 25, 30, 50 or 60 Hz - 1080psF / 24, 25 or 30 Hz

Computer:

  • RGBHV, RGBS or RGsB
  • Resolution up to 1600x1200 / 60 Hz, 1920x1200 / 60 Hz or 2048x1080 / 60 Hz
  • Horizontal frequency from 31.5 to 130 kHz
  • Vertical frequency up to 130 Hz
  • FpxMax = 165 MHz
Digital Inputs
4 Digital Inputs (DVI-I 1, DVI-I 2, SDI1 and SDI2)

  • DVI-I: SD-TV, ED-TV, HD-TV and Computer formats
  • SDI: SD-TV & HD-TV – YUV / 10bits / 4:2:2, or 3G-SDI
  • Automatic synchronization detection
Outputs
Computer Digital and Analog:

  • RGBHV, RGBS or RGsB and DVI
  • Resolution up to 1600x1200 / 60 Hz, 1920x1200 / 60 Hz or 2048x1080 / 60 Hz
  • Vertical frequency 50, 60, 72 or 75 Hz depending on Output format
  • FpxMax = 165 MHz

HD-TV:

  • RGsB, RGBS or YUV, DVI
  • 720p, 1080i, 1035i / 50 or 60 Hz - 1080p / 24, 25, 30, 50 or 60 Hz - 1080psF / 24, 25 or 30 Hz
Operation Standards
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, and SMPTE 424M
Audio Stereo In/Out
Input:

  • Six Audio stereo inputs + 1 Auxiliary + 2 from embedded SDI
  • AUX and input #7 Balanced
  • Vi = +15 dB
  • Zi = 20 kOhms (Unbalanced) / 40 kOhms (Balanced)
  • Adjustable Level per input

Outputs:

  • One output
  • Balanced / Unbalanced
  • Vo = +15 dBu / 300 Ohms (Unbalanced)
  • Vo = +21 dBu / 600 Ohms (Balanced)
User Controls
Front Panel:

  • Standby On / Off
  • Freeze / Black, Input, effects, preset direct access
  • Large Graphic VFD screen with control knobs and buttons for easy and fast access to menus and adjustments
Connectors
Rear Panel


Input #1 to #4 Connectors:

  • HD15-F: (Analog SD / ED / HD-TV and Computer)

Input #5 to #6 and DVI-I 1 to DVI-I 2 Connectors:

  • DVI-I Female: (Analog SD / ED / HD-TV and Computer)

Input SD / HD-SDI

  • SDI 1 & SDI 2: BNC-F

Audio:

  • 3.5mm Stereo jack: inputs #1 to #4
  • 5-pin MCO connectors: 2 for Inputs and 1 for Output

DB9: Dual RS232 for remote control

RJ45: Ethernet connection

AC main connector with On / Off switch

Output Connectors
Outputs #1 to #2


Each output is fitted with:

  • DVI-I Female: (Digital and Analog) RGB or YUV
  • HD15 Female: RGB or YUV
Power Supply
Internal, universal, automatic, 100-250 V; 50 / 60 Hz; 140 W (UL, CSA, GS, CE)
Dimensions
1U, 19"
13.8 x 19 x 1.74" (330 x 480 x 44 mm)
Weight
11 lbs (4.55 kg)
Packaging Info
Package Weight
18 lb
