JBL CSMA 2120 Commercial Series Mixer/Amplifier

Used Cat #3386997 • MFR #CSMA2120
Print

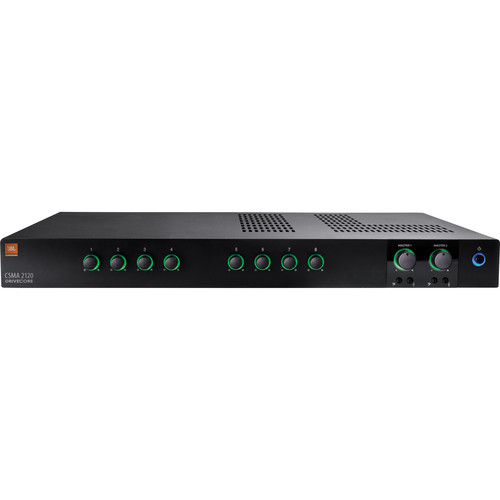

JBL CSMA 2120 Commercial Series Mixer/Amplifier
This image is for illustrative purposes only
Key Features
  • For Commercial and Industrial Use
  • 120W into 8 or 4 Ohm Loads
  • 15W Per Channel
  • 8 Input Channels, 2 Output Channel

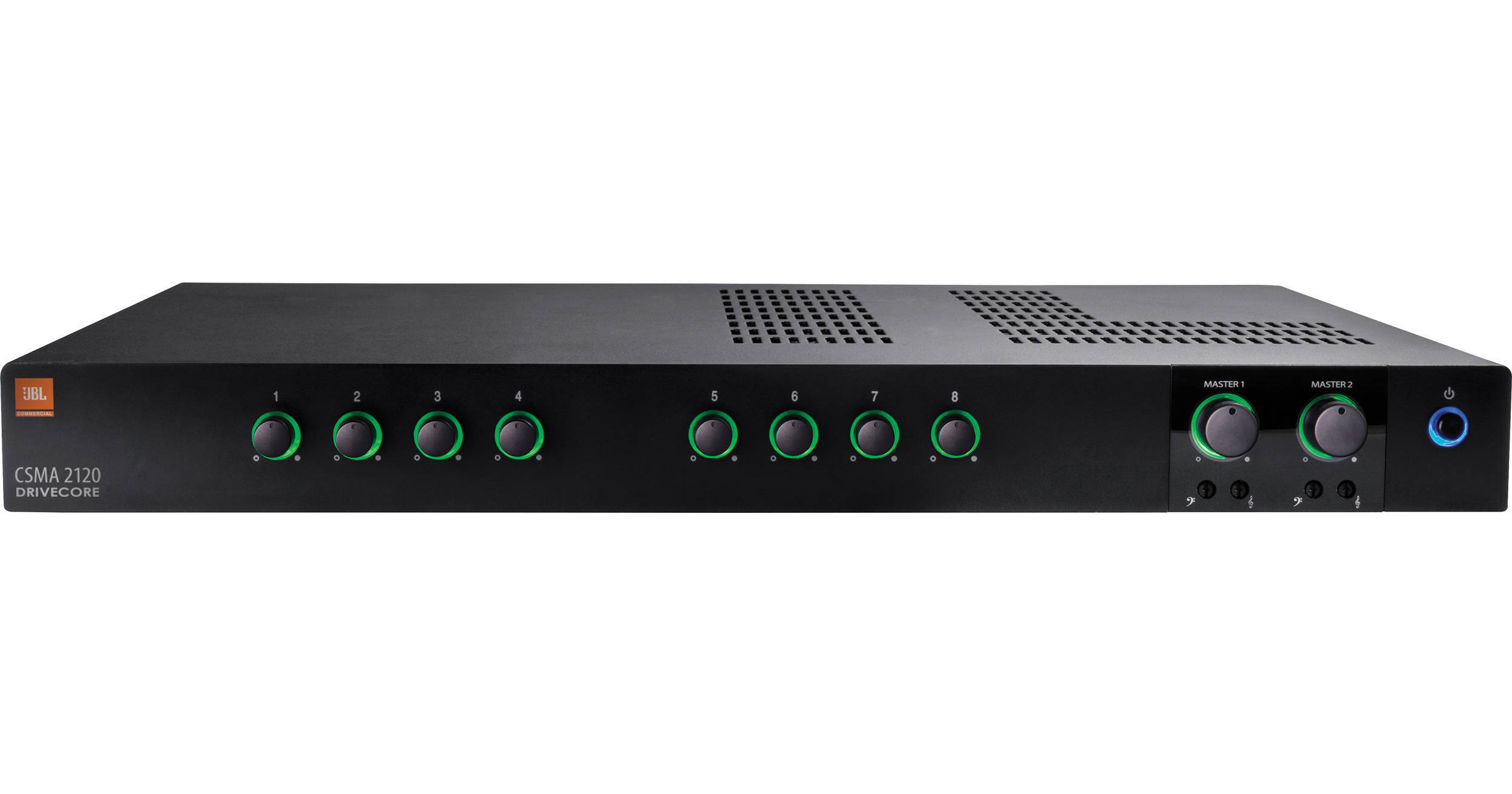

Designed for commercial and industrial use, the CSMA 2120 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 120W of peak power with 15W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.
More Details
Used
Warranty: B&H 90 Days
In Stock
No Store Display
$664.95
New $969.00
Used Savings $304.05
+
Save the Tax‡
or Pay $56/mo. suggested payments for 12 Mos.§ when you use the Payboo credit card. Learn More
Free 2-Day Shipping
Protect Your Gear
Add a protection plan from $89.95
See Options
New for

JBL CSMA 2120 Overview

Designed for commercial and industrial use, the CSMA 2120 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 120W of peak power with 15W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.

The amplifier, capable of driving both eight and four Ohm loads, can be used with 70V and 100V distributed audio systems without the need for a separate transformer. On its back panel you'll find euroblock connections for mic/line inputs, as well as unbalanced RCA inputs, speaker connections, dip switches for input routing, and more. The unit is also equipped with two RJ45 connectors for use with JBL CSR-V in-wall volume controls (available separately).

This Commercial Series mixer/amplifier boasts such features as voice activating ducking (useful for paging over background music), priority muting for channels one and five, and a sleep mode which automatically powers down the unit when no audible signal has been received for longer than 30 minutes. Also, with two auxiliary outputs, you may connect to an additional amplifier, though the master volume and tone controls will have no bearing on the resulting signal.

Channel Modes
8 inputs with 2 outputs of 120W of power.
Controls
Independent Bass and Treble controls for each output channel.
Input level and output volume controls.
Hi-Z Switch
The Hi-Z switch will switch in the built-in output transformer allowing the unit to drive 70V or 100V speaker systems directly when connected to the appropriate output terminals.
Phantom Power
Phantom power (27 V) can be applied to all mic inputs by turning on Phantom Power within the dip switches.
VOX Function
Voice activated ducking is available on input channel 1 and channel 5. The audio input level required to activate ducking is set using the trim pot on the rear panel. Adjusting in the counter-clockwise direction will reduce that level, while the full clockwise setting will disable the VOX function.
Priority Muting
Channels one and five may be used as priority channels, muting all other channels when pins 4 and 5 are shorted using a switch closure. If the amplifier has entered sleep mode due to inactivity, invoking priority will also bring the unit out of sleep and ready for transmitting an announcement.
Remote Volume Control
Remote volume control can be implemented using a CSR-V controller connected via an Ethernet cable to the RJ45 connector on the back panel.
Sleep Mode
This unit is designed to go into sleep mode after approximately 30 minutes operating with no signal at any of the inputs. Return of signal (-40 dBu or 7.75mVRMS) to any input will wake the unit. Also, a switch closure across the priority input pins will return the unit to normal operating mode.
AUX output
An auxiliary output that you may connect to additional amplifiers is available. The audio signal is the mix of the input channels. Note that the master volume control and tone controls will have no effect on the aux output signal.
Manufacturing
Crown's DriveCore technology
HARMAN's GreenEdge environmental standards
Certifications and Approvals
Lead-free RoHS standards, utilizing recycled metals, and using an energy-saving powder coat process
Energy Star certified
UPC: 871015007366

JBL CSMA 2120 Specs

Form Factor/Type
Rackmount
Maximum Output Power
120 W per channel into 4 Ohms or 8 Ohms, 1 kHz, ≤ 0.5% THD
Insertion Loss
1 dB maximum for 70 and 100 V outputs
Number of Mixer Inputs
8
Continuous Power
15 W per channel
Line Output Level
5.0 V RMS into 10 kOhms
Number of Amplifier Channels
2
Input Sensitivity
To obtain full rated power at 8 Ohms (or 5 VRMS to line output)
Mic Input: 3 mV RMS
Line Input: 775 mV RMS
RCA Input: 300 mV RMS
Number of Channels
Input: 8
Output: 2
Load Impedance/Voltage Support
4 / 8 Ohms
70 V (40 Ohms Minimum)
100 V (80 Ohms Minimum)
Frequency Response
Measured at 2.83 V RMS into rated load impedance at any output
4/8 Ohms Output: 20 Hz - 20 kHz, ±2 dB
70 V/100 V Outputs: 80 Hz - 15 kHz ±2 dB
Line Out: 20 Hz - 20 kHz, ±1 dB
Power Rating per Channel
1x 120 W at 4/8 Ohms
Total Harmonic Distortion (THD)
Measured at 2.83 V RMS into rated load impedance at any output
Power Amplifier Output: <0.5%, 20 Hz to 20 kHz
Line Output: 0.05% typical
Signal to Noise Ratio
> 90 dB
Nominal Input Impedance
Mic: 400 Ohms
Line: 20 kOhms (balanced)
RCA: 50 kOhms
Performance
Minimum Load Impedance
Low Impedance Output: 4 Ohms
70 V Output: 40 Ohms
100 V Output: 80 Ohms
Crosstalk
-70 dB @ 1 kHz
Frequency Response
20 Hz to 20 kHz ±2 dB (Low-Z)
80 Hz to 15 kHz ±2 dB (70/100 V)
20 Hz to 20 kHz ±1 dB (Line Output)
Controls
Front Panel:
8 x Input level rotary knobs
2 x Output volume-attenuating knobs
1 x Power switch
2 x Bass potentiometers
2 x Treble potentiometers


Rear Panel:
2 x Input-routing dip switches (including phantom and Hi-Z switches)
8 x Mic/Line selector switch
2 x Vox adjustment switches

SNR/Noise
> 90 dB SNR
Indicators
Front Panel:
8 x Input signal presence ring, green
2 x Output volume ring, green
1 x Power switch ring, green/blue
THD/Distortion
≤ 0.5% THD (20 Hz to 20 kHz, Main Output)
≤ 0.05% THD (Line Output)
Connectors
Rear Panel:
1 x IEC power input
2 x Aux out connection points
6 x 3-pin euroblock connectors
2 x 5-pin euroblock connectors
6 x Dual RCA input connectors
2 x RJ45, remote volume
Crosstalk
-70 dB (1 kHz)
Operating Temperature / Humidity
32 to 95°F / 0 to 35°C, 95% RH (non-condensing)
Signal Processing
Storage Temperature
-4 to 185°F / -20 to 85°C
DSP
No
Phantom Power
27 VDC
AC Input
100-240 VAC, 50/60 Hz
Dimensions
17.2 x 11.9 x 1.7" / 436.9 x 302.3 x 43.2 mm
EQ & Filters
2-Band EQ
Weight
Approximately 12.1 lb / 5.5 kg
Connectivity
Analog Audio I/O
2x Block 5-Pin Balanced Line/Mic Input
6x Block 3-Pin Balanced Line/Mic Input
6x Stereo 2RCA Unbalanced Summed-Mono Input
2x Block 3-Pin Balanced Aux Output
Digital Audio I/O
No
Network I/O
No
Other I/O
2x RJ45 Remote/Volume
USB I/O
No
Phantom Power
+27 V
Wireless
No
Power
Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power Connector
1x IEC
Physical
Display
Single-LED Indicators Only
Rackmount Size
1 U (with Included Hardware)
Operating Conditions
32 to 95°F / 0 to 35°C up to 95% Humidity
Dimensions
17.2 x 11.9 x 1.7" / 436.9 x 302.3 x 43.2 mm
Weight
12.1 lb / 5.5 kg
