Leader Composite Video Input Unit for LV 5800 Monitors

BH #LELV58SER03 • MFR #LV58SER03
Print

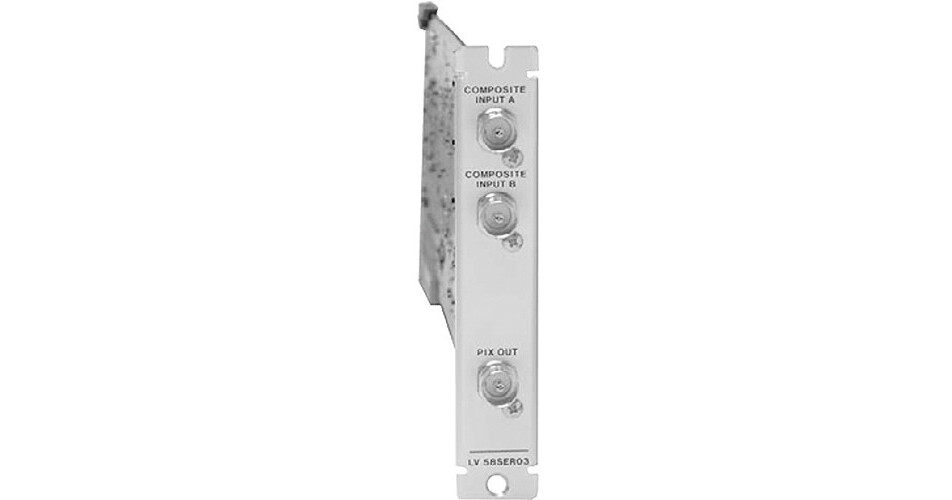

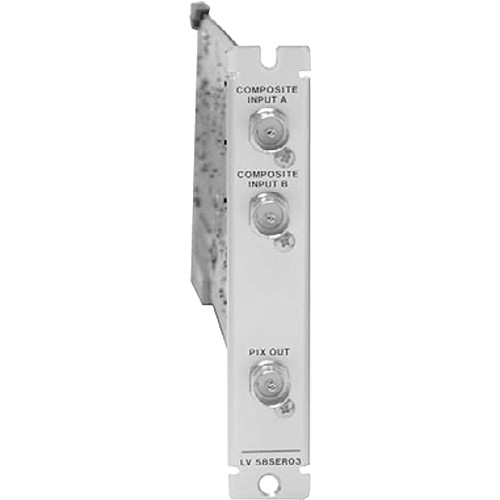

Leader Composite Video Input Unit for LV 5800 Monitors
Key Features
  • Analyzing Analog Video Signals
  • Supports NTSC / PAL Formats
  • 2 Input Ports (BNC connectors)
  • Output via PIX Connector
The Leader Composite Video Input Unit for LV 5800 Monitors is used to display and measure analog NTSC or PAL video signals. Analog signals, both NTSC and PAL formats, are analyzed using this unit via 2 input ports (BNC connectors) and an output via a PIX connector at the rear panel. It allows the monitor to perform functions such as a waveform monitor, vectorscope, or a simple picture monitor display on analog video signals.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

Leader LV58SER03 Overview

The Leader Composite Video Input Unit for LV 5800 Monitors is used to display and measure analog NTSC or PAL video signals. Analog signals, both NTSC and PAL formats, are analyzed using this unit via 2 input ports (BNC connectors) and an output via a PIX connector at the rear panel. It allows the monitor to perform functions such as a waveform monitor, vectorscope, or a simple picture monitor display on analog video signals.

Using the EXT REF phase display, the Composite Video Input enables you to compare the input signal with V / H sync signals from an external reference, and display the phase difference numerically and graphically. If used with a low pass filter, it allows you to display the luminance component of the signals. You can also perform analysis on SDI signals, when used along with the LV58SER01A module. In addition, the unit includes SCH measurement capabilities which are essential while editing composite signals.

Used to display and measure analog NTSC / PAL video signals
Two input ports with BNC connectors
Output via a PIX connector
Allows the monitor to perform functions such as a waveform monitor, vectorscope, and a simple picture monitor display
EXT REF phase display - easy synchronization phase management
Enables you to display the luminance component of the signals (when used with a low pass filter)
Allows you to perform analysis on SDI signals (using an LV58SER01A module)
SCH measurement
Highly accurate amplitude and time measurements via cursor control

Leader LV58SER03 Specs

Measured Signal
Composite video signal (NTSC/PAL)
Supported Standards
SMPTE 170M and ITU-R BT.470
Input
Composite video: select A or B
Input connector: BNC connector
Input impedance: 75 Ω
Input return loss: ≥ 30 dB (up to 6 MHz)
Maximum input voltage: ±5 V (DC + Peak AC)
Output
Composite video
Output signal: active
Output connector: BNC connector 1 system 1 connector
Output impedance: 75 Ω
Output amplitude: 1 Vp-p ± 5 %
Frequency characteristics: ± 5 % 25 Hz to 5 MHz / +5 % to -10 % 5 MHz to 5.6 MHz
Waveform Display Section
Vertical Axis
Sensitivity
V scale (PAL): -0.3 V to 0.7 V
IRE scale (NTSC): -40 to 100 IRE
Gain: select x1 or x5
Variable gain: ≤ 0.2 to ≥ 2
Amplitude accuracy: ±1 %
Frequency Characteristics
Composite Signal: ±2 % 25 Hz to 5 MHz /+3 % to -7 % 5 to 5.6 MHz
Step Response (for 1 V full scale, flat, 2T pulse, and 2T bar)
Overshoot: ±2 %
Preshoot: ±1 %
Ringing: ±2 %
Pulse/Bar Ratio: ±1 %
Vertical Tilt: ±1 %
Filter: Luminance filter
DC restorer clamp to the back porch (fixed)
Horizontal Axis
Operation mode: overlay displays only a single waveform
Display format
Line display: 1H or 2H
Line magnification: select x1, x10 or x20
Field display: 1V or 2V
Field magnification: select x1, x20 or x40
Time base accuracy: ±1 %
Vectorscope Display Section
Sensitivity
Select 75 % or 100 % Using a color bar
Gain
Select x1, x5, or IQ-MAG
Variable: 0.2 to 2
Phase
±2˚ accuracy
Amplitude Accuracy
±3 %
System Phase Adjustment
360˚
Setup (NTSC)
Select 0 or 7.5 %
NTSC Display (PAL)
Select NTSC or PAL display
IQ Axis
Select show or hide
SCH
Displays the SCH value numerically
Status Display Section
Display
Displays the phase difference between the composite signal and external sync signal numerically and graphically. Holds and displays eight phase difference values being measured
Display Range
V direction: ±1/2 frame
H direction: ±1/2 Line
Synchronization Signal: NTSC/PAL black burst signals
General
Environmental Conditions
Conforms to the LV 5800
Power Consumption
Supplied from the LV 5800 9 W maximum
Weight
0.55 lb (0.25 kg)
