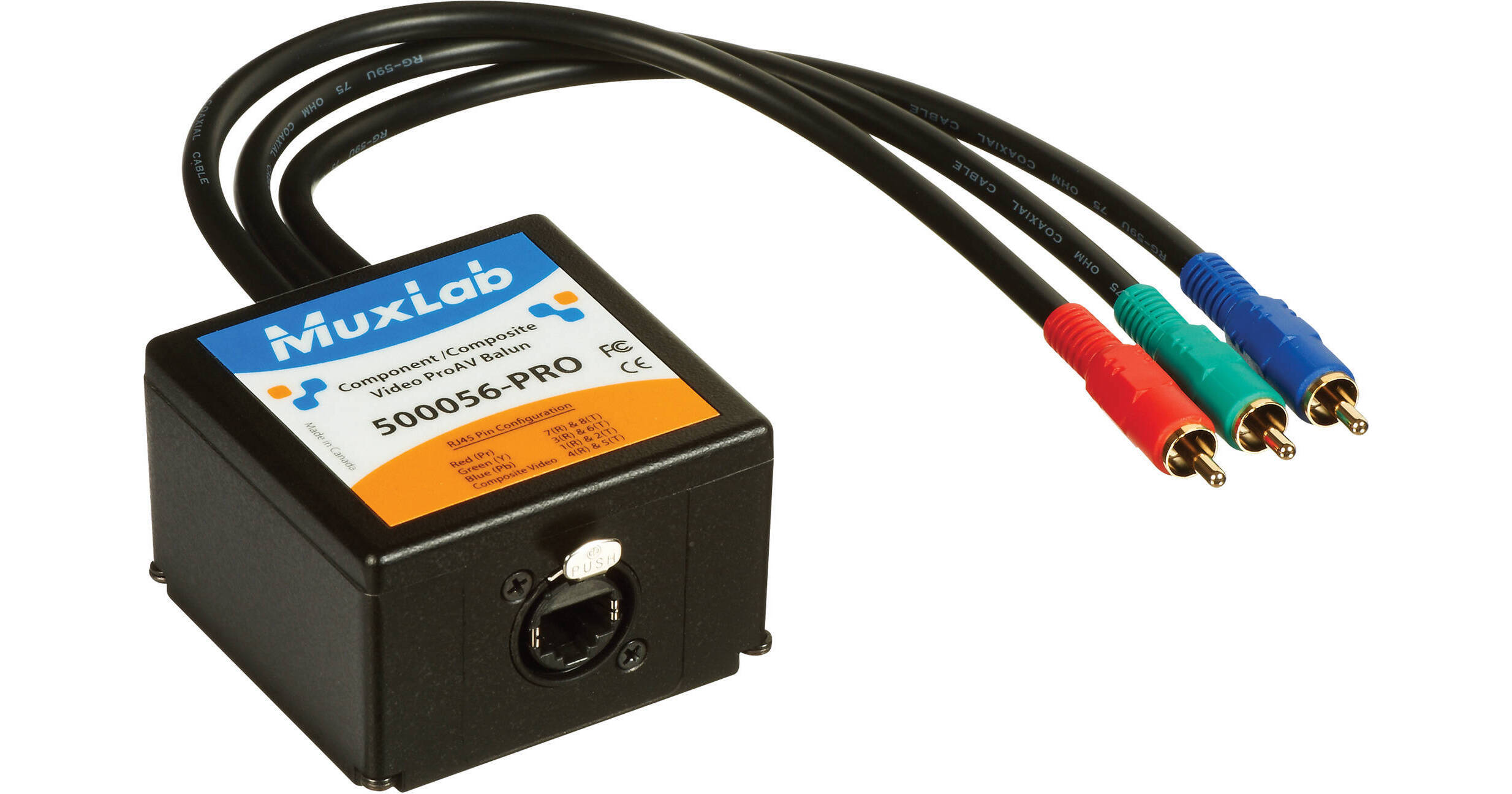

MuxLab Composite/Component ProAV Video Balun Transmitter

BH #MU500056P • MFR #500056-PRO
Print
MuxLab Composite/Component ProAV Video Balun Transmitter
Key Features
  • CAT 5e/6 Twisted Pair Cable
  • Up to 500' Transmission Distance
  • Rugged Cast-aluminum Enclosure
  • 12" (30.5 cm) Built-in Cable Leads
The MuxLab Composite/Component ProAV Video Balun Transmitter can transfer a component video signal (YPbPr or RGB) and a composite video signal via a single CAT 5e/6 twisted pair cable, up to 500’ (152 m). It features a rugged cast-aluminum enclosure and heavy-duty 12” (30.5 cm) built-in cable leads. An Ethercon RJ45S connector is included for cable strain relief.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

MuxLab 500056-PRO Overview

The MuxLab Composite/Component ProAV Video Balun Transmitter can transfer a component video signal (YPbPr or RGB) and a composite video signal via a single CAT 5e/6 twisted pair cable, up to 500’ (152 m). It features a rugged cast-aluminum enclosure and heavy-duty 12” (30.5 cm) built-in cable leads. An Ethercon RJ45S connector is included for cable strain relief.

Transmits a component video signal (YPbPr or RGB) and a composite video signal via a single CAT 5e/6 twisted pair cable
Supports 1080i/p
Offers transmission distance up to 500' (152 m)
Rugged cast-aluminum enclosure
Heavy-duty 12" (30.5 cm) built-in cable leads
Ethercon RJ45S connector for cable strain relief
Supports composite video on fourth twisted pair
Compatible with 500056 and can be used in pairs or in conjunction with other MuxLab component video baluns
Suitable for use in rental & staging, and mobile production

MuxLab 500056-PRO Specs

Environment
Component Video (YPbPr), RGB Video (sync on green)
480i/p, 720p, 1080i/p
Line level Composite Video (NTSC, PAL, SECAM)
Devices
DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theatre and other equipment supporting HDTV component video and/or Composite Video
Transmission
Transparent to the user
Bandwidth
Video: 60 MHz, 3 dB roll off
Composite Video: DC to 8 MHz
Maximum Input
1.1 Vp-p
Insertion Loss
Loss per pair:
Component: Less than 3 dB per pair over the frequency range
Composite: Less than 2 dB per pair over the frequency range
Return Loss
Greater than 15 dB over the frequency range
Common Mode Rejection
Component: -55 dB max.
Composite: Greater than 40 dB @ 8 MHz
Maximum Distance
CAT 5E/6 UTP & STP:
480i/p: 1,000' (305 m)
720p and 1080i/p: 500' (152 m)
Composite Video: 2,200' (670 m)
Cable
CAT 5/6 UTP/STP:
24 gauge or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' at 1 MHz Coax:
Impedance: 75 ohms at 1 MHz
Connectors
3 RCA-M connectors: Green (Y), Blue (Pb) , Red (Pr)
1 RCA-F connector for Composite Video
Ethercon RJ45S for twisted pair
Pin Configurations
Red (Pr): Pins 7 [R] & 8 [T]
Green (Y): Pins 3 [R] & 6 [T]
Blue (Pb): Pins 1 [R] & 2 [T]
Composite Video: Pins 4 [R] & 5 [T]
Reverse polarity sensitive
Temperature
Operating: 32 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20° to 85° C)
Humidity: up to 95%
Enclosure
Cast aluminum
Regulatory
FCC, CE, RoHS
Dimensions
2.7 x 2.6 x 1.9" (7 x 6.7 x 5.02 cm)
Plus 12" (30cm) cable leads
Weight
0.54 lb (0.24 kg)
Packaging Info
Package Weight
0.7 lb
Box Dimensions (LxWxH)
11 x 3.5 x 2.4"
