Panasonic SD 5 Vandal-Resistant Fixed Dome Camera (2.2mm Lens, Flush Mount)

BH #IPWVCW504F2Q • MFR #WV-CW504F/22
Print

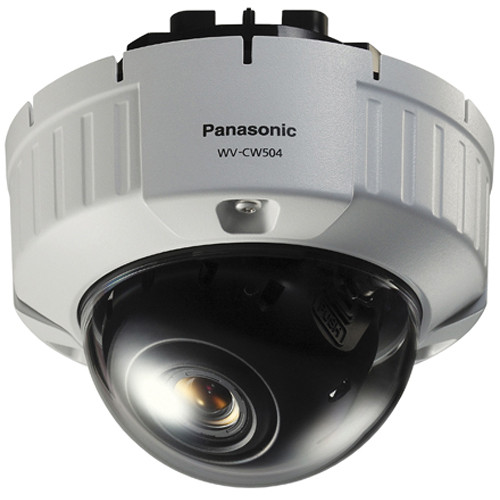

Panasonic SD 5 Vandal-Resistant Fixed Dome Camera (2.2mm Lens, Flush Mount)

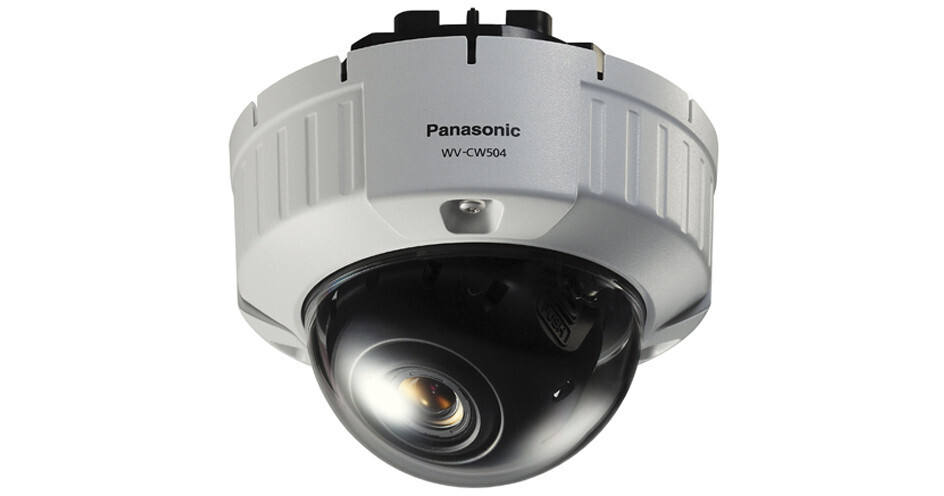

Similar model shown for illustrative purposes
Key Features
  • 1/3" Interline Transfer CCD Image Sensor
  • Resolution up to 650/700 TVL (Color/B&W)
  • Minimum Illumination of 0.01 lux (B&W)
  • Adaptive Black Stretch Technology
The Panasonic SD 5 Vandal-Resistant Fixed Dome Camera (2.2mm Lens, Flush Mount) with a 1/3" interline transfer CCD image sensor delivers high-quality images at horizontal resolutions up to 650 / 700 TVL (color / B&W). Minimum illumination levels of 0.1 lux (color) and 0.01 lux (B&W) make the camera suitable for lowlight surveillance. An IR-cut filter enables the camera to switch between color and B&W as per the changes in ambient lighting.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

Panasonic WV-CW504F Overview

The Panasonic SD 5 Vandal-Resistant Fixed Dome Camera (2.2mm Lens, Flush Mount) with a 1/3" interline transfer CCD image sensor delivers high-quality images at horizontal resolutions up to 650 / 700 TVL (color / B&W). Minimum illumination levels of 0.1 lux (color) and 0.01 lux (B&W) make the camera suitable for lowlight surveillance. An IR-cut filter enables the camera to switch between color and B&W as per the changes in ambient lighting.

Adaptive Black Stretch technology produces clear images by enhancing the visibility of objects in dark areas of a video scene without degrading the image quality in the brighter areas. With i-VMD (intelligent Video Motion Detection) technology, the SD 5 camera reliably detects moving objects within a targeted area, and helps spot items that are removed or left behind. The feature can recognize scene changes when lens is covered, spray-painted, removed or defocused. Built-in Auto Back Focus adjusts the positioning of the CCD sensor to ensure accurate focusing in both color and B&W modes. Additionally, the Auto Back Focus highly reduces post-installation intervention.

Coupled with adaptive 2D/3D filtering Digital Noise Reduction technology, the SD 5 Fixed Dome Camera digitally corrects any video noise that could cause distortion in the images. Auto Image Stabilizer reduces motion-blurring of images where the camera is subject to high frequency vibrations.

The 2-piece mounting bracket design of the fixed dome camera makes for easy installation. IP66-rated weatherproof, vandal-resistant housing ensures uninterrupted surveillance in exposed and high-risk locations.

1/3" interline transfer CCD image sensor
2.2 mm lens
Delivers high-quality images at a horizontal resolution up to 650 / 700 TVL (color / B&W)
Minimum illumination of 0.1 lux (color) and 0.01 lux (B&W) makes the camera suitable for lowlight surveillance
IR-cut filter enables the camera to switch between color and B&W as per the changes in ambient lighting
Electronic sensitivity enhancement up to 32x (auto/manual)
Adaptive Black Stretch technology produces clear, visible images by enhancing the visibility of objects in dark areas of a video scene without degrading the image quality in the brighter areas
i-VMD (intelligent Video Motion Detection) technology reliably detects moving objects within a targeted area, and helps spot items that are removed or left behind
i-VMD also recognizes scene changes when lens is covered, spray painted, removed or defocused
Auto Back Focus adjusts the positioning of the CCD sensor to ensure accurate focusing in both color and B&W modes; post-installation intervention is reduced
3-dimensional color conversion function produces natural color even in lowlight environmental conditions
Adaptive 2D/3D filtering Digital Noise Reduction technology digitally corrects any video noise that could cause distortion in the images
Auto Image Stabilizer reduces motion-blurring of images where the camera is subject to high frequency vibrations
2-piece mounting bracket and 3-way hinge (horizontal, vertical and swivel rotation) for easy installation
IP66-rated weatherproof, vandal-resistant housing ensures uninterrupted surveillance in exposed and high-risk locations
Dehumidification device for use in various weather conditions
Compatible with IEC60529 measurement standard

Panasonic WV-CW504F Specs

TV System
NTSC
Type
Flush mount type
Image Sensor
1/3" interline transfer CCD
Effective Pixels
976 (H) x 494 (V)
Scanning Mode
2:1 interlace scan
Scanning Area
4.8 (H) x 3.6 (V) mm
Scanning Frequency
Horizontal: 15.734 kHz
Vertical: 59.94 Hz
Scanning
525 lines
Horizontal Resolution
650 TVL typical at color mode
700 TVL at B/W mode
Minimum Illumination
With standard Clear Dome Cover:

Color: 0.1 lux (SENS UP: OFF),
0.003 lux (SENS UP: 32x) at F1.4
B/W: 0.01 lux (SENS UP: OFF),
0.0003 lux (SENS UP: 32x) at F1.4

Signal-to-Noise Ratio
50 dB (AGC Off, Weight On)
White Balance
ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K), or AWC (2,000 ~ 10,000 K)
Light Control
ALC / ALC+
Automatic Gain Control
ON (HIGH / MID / LOW) / OFF
Super Dynamic 5
ON / ON (i-VMD) / OFF (with BLC masking 8 x 6 areas)
Dynamic Range
52 dB typical (Super Dynamic 5 ON)
Electronic Shutter
OFF (1/60), 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 s
Electronic Sensitivity UP
OFF / AUTO (2x, 4x, 6x, 10x, 16x, 32x) / FIX (2x, 4x, 6x, 10x, 16x, 32x)
Digital Noise Reduction (DNR)
High / Low
Black and White Mode
Mode: AUTO1 / AUTO2 / ON / OFF
Digital Zoom
ON (up to 2x) / OFF
Scene File
2 patterns
i-VMD
Video Motion Detection, Object Detection (Removal and Left Behind), Scene Change Detection
Privacy Zone
ON (Gray / Mosaic) or OFF
Auto Image Stabilizer
ON / OFF
Camera Titles
Up to 16 characters
Lens Mount
CS-mount
Back Focus Adjustment
ABF (AUTO / PRESET / FIX), MANUAL-ADJ
Synchronization
Internal (INT), Multiplexed Vertical Drive (VD2), Line-Lock (LL)
Lens
Focal Length: 3.8 to 8.0 mm, 2x varifocal
Angular Field of View: H: 35.6° (Tele) ~ 73.6° (Wide) / V: 26.6° (Tele) ~ 53.4° (Wide)
Maximum Aperture Ratio: 1 : 1.4 (Wide) ~ 1 : 1.8 (Tele)
Focusing Range: 3.9' (1.2 m) ~ ∞
Pan/Tilt
Panning Range: ±170°
Tilt Tilting Range: ±75°
Azimuth Range: ±100°
Input/Output
Video Output:
1.0 V [P-P] / NTSC composite
75 Ω / BNC Connector
Multiplexed VD2 and control data capable

Monitor Output:
1.0 V [P-P] / NTSC composite
75 Ω / RCA Jack
General
Dehumidification Device: Yes
Setup Method: OSD setup menu
Language: English, Russian (For setup menu and camera title), German, French, Italian, Spanish (For setup menu), Japanese (Only for camera title. Setup menu is in English.)
Safety/EMC Standard: UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA)
Power
Power Source and Power Consumption:
24 V AC 60 Hz, 3.4 W, 14 W (with optional Heater Unit WV-CW5H)
12 V DC, 280 mA (Optional Heater Unit WV-CW5H cannot be used under 12 V DC operation)
Ambient Operating Temperature
14 to 122° F (-10 to 50° C)
With optional Heater Unit WV-CW5H: -22 to 122° F (-30 to 50° C)
Ambient Operating Humidity
90 % or less (without condensation)
Rating
Water and Dust Resistance: IP66, IEC60529 measurement standard compatible
Impact Protection
IEC 60068-2-75 test Eh, 50J
Dimensions
ø6-1/16 x 5-3/4" (H) / ø154 x 145.5 mm (H)
Weight
2.97 lb (1.35 kg)
