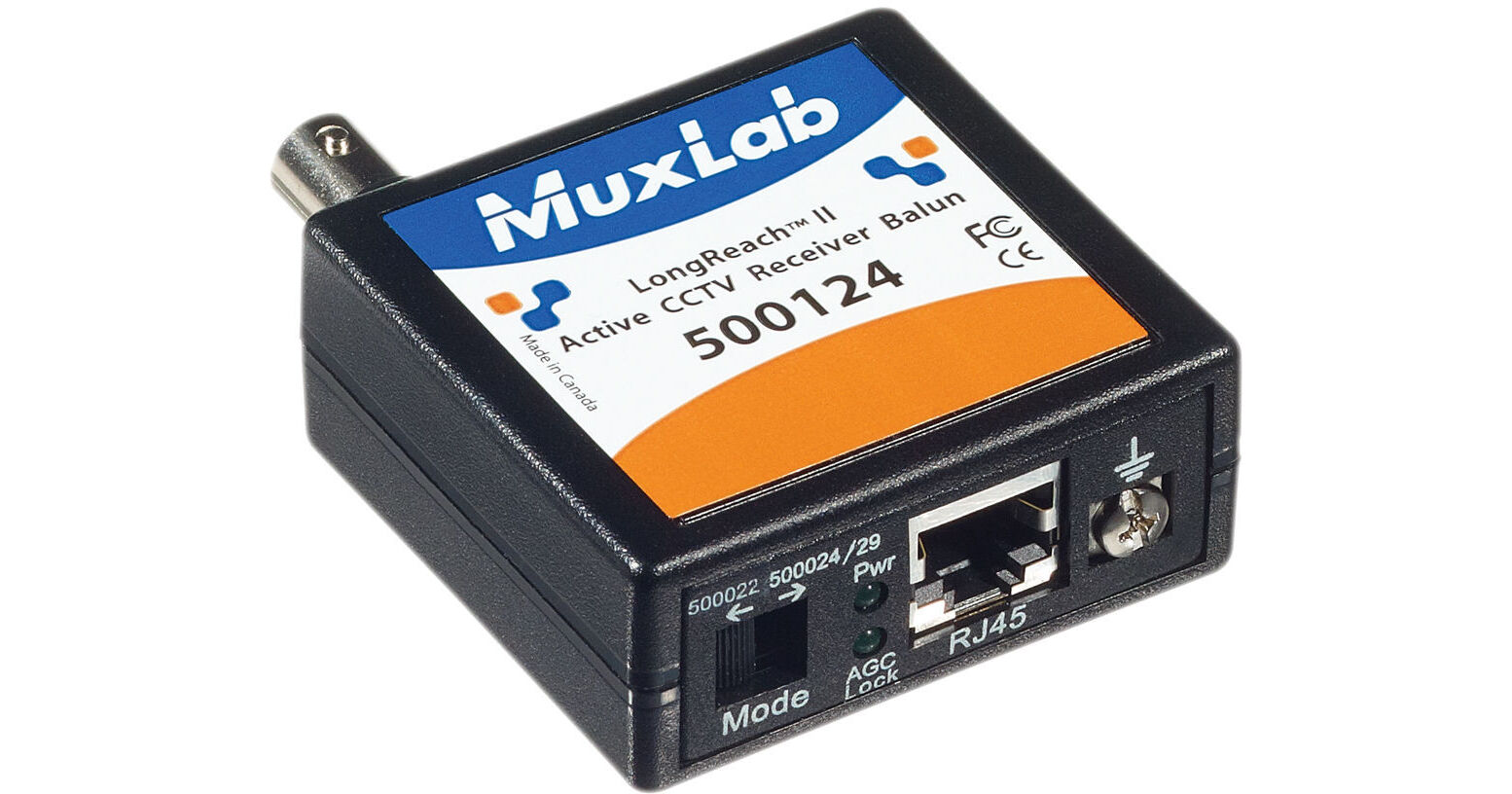

The MuxLab LongReach II Active CCTV Receiver Balun allows you to achieve a separation of up to 5000’ (1500 m) between a CCTV camera and a DVR. Using the cost-efficient CAT5e/6/7 cables, this balun can easily be integrated with an existing cabling system. Auto Gain Control (AGC) amplifies the received signal and delivers high-quality video over long distances. Furthermore, the balun features ground loop isolation and auto polarity correction that enhances the quality of the received video signals.
The MuxLab LongReach II Active CCTV Receiver Balun allows you to achieve a separation of up to 5000’ (1500 m) between a CCTV camera and a DVR. Using the cost-efficient CAT5e/6/7 cables, this balun can easily be integrated with an existing cabling system. Auto Gain Control (AGC) amplifies the received signal and delivers high-quality video over long distances. Furthermore, the balun features ground loop isolation and auto polarity correction that enhances the quality of the received video signals.
When used in conjunction with other MuxLab baluns, the LongReach II Active CCTV Receiver Balun simplifies routing solutions by enabling video, power, and PTZ signals to be sent over a single CAT5e/6/7 cable. As a measure of safety, this device comes with built-in surge protection and features LED indicators for you to keep an eye on its operation.
Allows video, power, and PTZ signals to be sent over a single CAT5e/6 cable
Allows a transmission distance of up to 5000' (1500 m)
Cost-efficient solution for incorporating CAT-structured cabling system with security systems
Auto Gain Control (AGC) for high-quality signal output
Features ground loop isolation and auto polarity correction for eliminating noise accumulated over the transmission length
Can be used with MuxLab's mounting accessories (500900/902/910/915)
Suitable for use in airports, hotels, casinos, commercial complexes, remote parking lots, hospitals, etc.
MuxLab LongReach II Specs
Environment
CCTV composite baseband video; NTSC, PAL, SECAM
Devices
CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV
equip
Transmission
Transparent to the user
Video
5 to 900 MHz
Bandwidth
20 Hz to 8 MHz
Input
1.5 Vpp maximum, 100Ω, balanced (RJ45)
Output
1.1 Vpp, ± 1 dB, 75Ω, unbalanced (BNC)
Insertion Loss
-14 dB minimum for luma, -60 dB minimum for chroma
Return Loss
Greater than 15 dB over the frequency range
Common Mode Rejection
Greater than 40 dB @ 3.85 MHz
Auto Polarity Correction
Automatically adjusts for any polarity
Ground Loop Isolation
Up to +/-50 VDC
Maximum Distance via Cat5e/6
5000' (1500 m)
LED Diagnostics
Power, Video Sync
AGC (Automatic Gain Control)
Automatically adjusts for gain, sharpness and luminosity
Remote Power
Input : F connector (male) Output : RJ45S (female)
Wiring
Remote low voltage power supported via 2 twisted pairs. A Class II power supply is recommended
Maximum Distance@24 VAC
2 VA : 1500' (457 m) 4 VA : 745' (227 m) 10 VA: 300' (91 m) 20 VA: 150' (46 m)
Maximum Current
Fuse supports 2.5A rms or DC. Fuse trips @ 5A
2-Wire PTZ Control
Operating: 32 to 104° F (0 to 40° C) Storage: -10 to 70° F (-14 to 158° C)
Wiring
Remote 2-wire PTZ control supported via one (1) twisted pair
Maximum Distance
Up to 4000' (1200 m) depending on the PTZ camera vendor
Maximum Input Voltage
48 V (AC RMS/DC)
Maximum Current Rating
2 A (AC RMS/DC). No fuse
Mechanical & Environmental
Cable - UTP
24 gauge or lower solid copper twisted pair wire Impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/foot Attenuation: 6.6 dB/1000 feet at 1 MHz
Cable - Coax
Impedance: 75 Ω at 1 MHz. (RG59/U)
Switch
Select between Power-Thru (500024 / 500029) and Pass-Thru (500022) mode
RJ45 Pin Configuration
For Signal Power A (+)*
500022 Mode: 1,3
500024/500029: 1,3,5
For Signal Power B (-)*
500022 Mode: 2,6
500024/500029: 2,4,6
For Signal Control (+)
500022 Mode: 4
500024/500029: N/A
For Signal Control (-)
500022 Mode: 5
500024/500029: N/A
