MuxLab 500010 VGA Balun (PC Side)

BH #MUVGAB • MFR #500010
Print

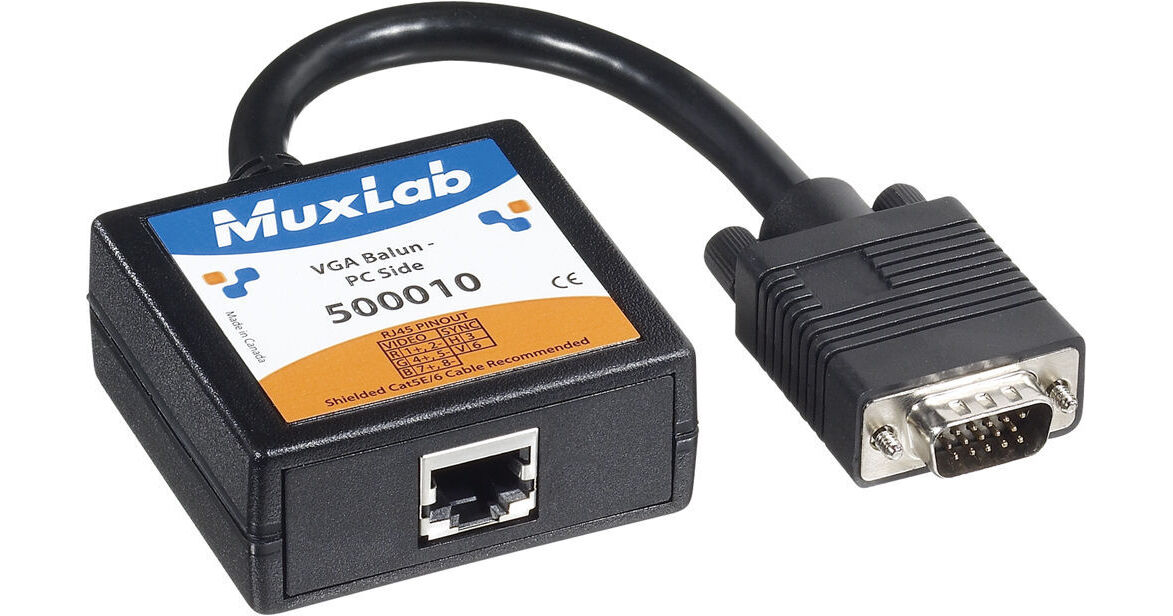

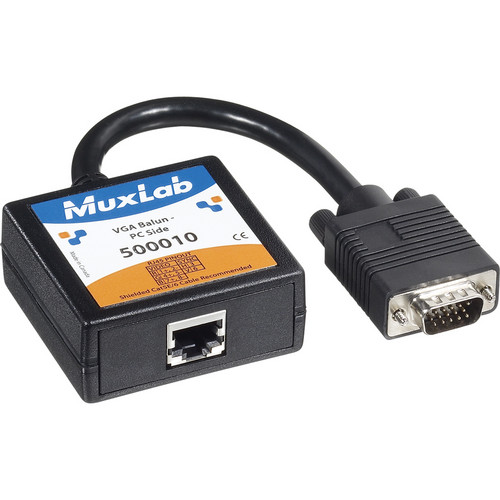

MuxLab 500010 VGA Balun (PC Side)
Key Features
  • Connects VGA Source with VGA Monitor
  • Transmits HD Signals Up to 250'
  • Uses 4-Pair Cat 5e/6 STP Cables
  • Compatible with 500011 or 500014 Baluns
Connect a VGA source to a VGA monitor using the 500010 VGA Balun from MuxLab. The balun transmits WXGA (1366 x 768) video signals at distances of up to 180' and VGA (640 x 480) signals at distances of up to 450'. This balun is designed for use on the PC side, and it is compatible with the company's 500011 or 500014 VGA Baluns which can be used on the monitor side for a full setup. This system eliminates the need for VGA cables, enabling usage of compact wiring for saving conduit space and facilitating a neat setup.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

MuxLab 500010 Overview

Connect a VGA source to a VGA monitor using the 500010 VGA Balun from MuxLab. The balun transmits WXGA (1366 x 768) video signals at distances of up to 180' and VGA (640 x 480) signals at distances of up to 450'. This balun is designed for use on the PC side, and it is compatible with the company's 500011 or 500014 VGA Baluns which can be used on the monitor side for a full setup. This system eliminates the need for VGA cables, enabling usage of compact wiring for saving conduit space and facilitating a neat setup.

Note:
This device requires Cat 5e/6 Shielded Twisted Pair (STP) Cabling.
Allows you to connect a VGA source to a VGA monitor without VGA cabling
Transmits VGA signals up to 350' via Cat 5e/6 STP cable
Compatible with the MuxLab 500011 or 500014 VGA Baluns (monitor side)
Transmits VGA, XGA, SVGA, SXGA, and WXGA signals
Saves conduit space for simple and neat installations
Compact design that does not require power
Suitable for use in boardrooms, projection systems, digital signage, and CCTV setups

MuxLab 500010 Specs

Environment
VGA
VESA VP&D 1.0
VIP ver 2.0.
Devices
CRT and flat-screen LCD monitors, plasma screens, laptops, PCs, multimedia projectors
Transmission
Transparent to the user
Bandwidth
DC to 60 MHz
Input Signals
Video: 1.1 V p-p
Horizontal Synchronization: TTL standard, 300 kHz maximum bandwidth
Vertical Synchronization: TTL standard, 300 kHz maximum bandwidth
Insertion Loss
Less than 3 dB per pair over the frequency range
Common Mode Rejection
15 kHz: -60 dB maximum
100 kHz to 10 MHz: -40 dB maximum
100 MHz: -20 dB maximum
Video Signal Return Loss
-15 dB maximum from DC to 60 MHz
Video Differential Gain
+/- 2%
Video Differential Phase
+/- 2%
Connectors
RJ45 shielded
HD15 plug (connects to VGA output of PC)
Lead: 6.0" / 15.2 cm
Maximum Distance
Via Cat 5e/6:
VGA 640 x 480 pixels (15 MHz): 450' (137 m)
SVGA 800 x 600 pixels (30 MHz): 350' (107 m)
XGA 1024 x 768 pixels (60 MHz): 250' (76 m)
SXGA 1280 x 1024 pixels (100 MHz): 200' (61 m)
WXGA 1366 x 768 pixels: 180' (55 m)
RJ45 Pin Configuration
Reverse Polarity Sensitive:
R Video (Red): Pin 1 (+), Pin 2 (-) Balanced
G Video (Green): Pin 4 (+), Pin 5 (-) Balanced
B Video (Blue): Pin 7 (+), Pin 8 (-) Balanced
Horizontal Synchronization: Pin 3
Vertical Synchronization: Pin 6
Cable
In order to ensure a common signal ground, Cat 5e/6 shielded twisted pair (STP) is required
The VGA Balun does not support VGA handshaking or control signals
Impedance
Input: RGB 75 Ohms (HD15) unbalanced
Output: RGB 100 Ohms (RJ45 shielded) balanced
Horizontal and Vertical Sync: TTL standard
Temperature
Operating: 32 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C)
Humidity: Up to 95% non-condensing
Enclosure
ABS fire retardant plastic
Mounting
Free-standing
Dimensions
2.4 x 2.3 x 1" (60.9 x 58.4 x 25.4 mm)
Weight
2.34 oz (66 g)
Packaging Info
Package Weight
0.25 lb
Box Dimensions (LxWxH)
10 x 5.4 x 0.5"
