MuxLab Stereo Hi-Fi/Video Balun

BH #MUSHFVB • MFR #500039
Print

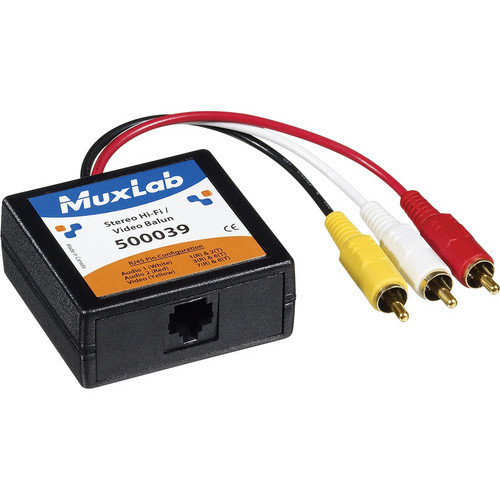

MuxLab Stereo Hi-Fi/Video Balun
Key Features
  • Simplifies Video Routing
  • Transmits Composite Video Signal
  • Uses a CAT 5e/6 Cable
  • Transmission Distance Up to 2200'
The Stereo Hi-Fi/Video Balun from MuxLab allows you to transmit a composite video signal via a single UTP (Unshielded Twisted Pair) cable in a point-to-point configuration. It is capable of achieving transmissions of up to 2200' for use in comprehensive systems such as those used for classroom video distribution, hospital video training, video conferencing, and video kiosks.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

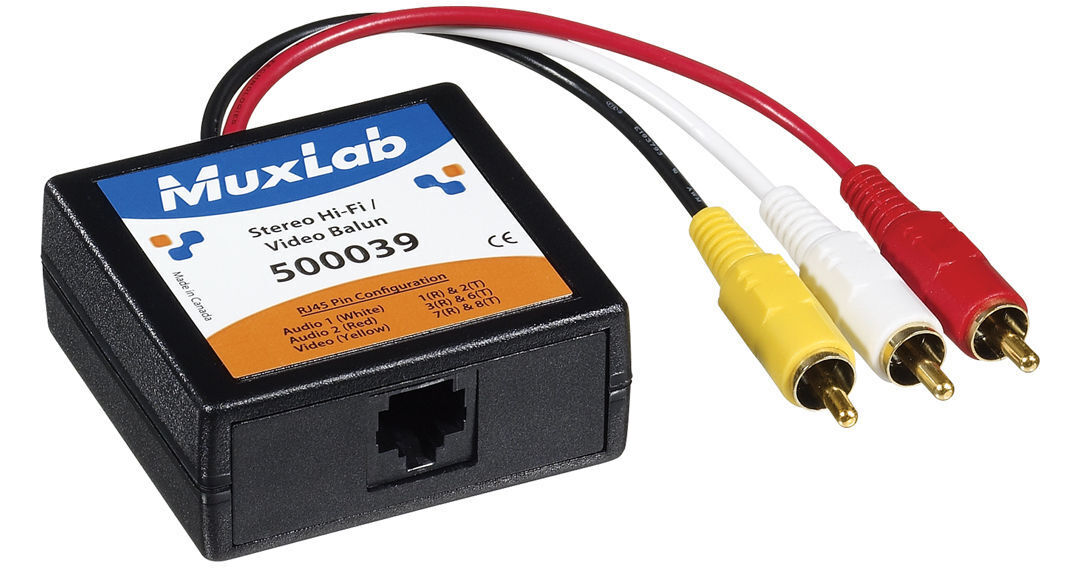

MuxLab 500039 Overview

The Stereo Hi-Fi/Video Balun from MuxLab allows you to transmit a composite video signal via a single UTP (Unshielded Twisted Pair) cable in a point-to-point configuration. It is capable of achieving transmissions of up to 2200' for use in comprehensive systems such as those used for classroom video distribution, hospital video training, video conferencing, and video kiosks.

With full audio bandwidth support, the Stereo Hi-Fi/Video Balun offers a high-quality sound output, which is suitable for high-fidelity applications. When used in conjunction with other MuxLab baluns, the Stereo Hi-Fi/Video Balun simplifies video routing solutions and is suitable for use in commercial and home A/V systems.

Transmits one composite video signal via a CAT 5e/6 cable
Full audio bandwidth support for clear sound output
Efficient solution for point-to-point connections
Transmission distances of up to 2200' (670.56 m)
Quick and easy installation with built-in color-coded cable leads
Can be used with MuxLab's Audio-Video Distribution Hub for distribution via UTP
Facilitates clutter-free installation
Suitable for use in classroom video distribution, AV systems, and video conferencing

MuxLab 500039 Specs

Environment
Composite video (NTSC, PAL, SECAM) equipment
Devices
DVD players, VCRs, satellite receivers, MPEG players, laptops, notebooks, monitors, DLP projectors, CCD cameras, video switchers, sequencers, digital video servers, video multiplexers, video splitters, video converters, and other composite video equipment
Transmission
Transparent to the user
Bandwidth
Composite Video: DC to 6 MHz
Audio: 20 Hz to 20 kHz over the distance range
Impedance
Composite Video: 75 Ohms;
Audio: 600 Ohms (minimum)
Maximum Input
Composite Video: 1.1 V p-p
Audio: 1.1 V p-p
Insertion Loss
Composite Video: Less than 2 dB per pair over the frequency range from DC to 6 MHz
Audio: Less than 2 dB per pair over the frequency range
Return Loss
Composite Video: Better than 15 dB over the frequency range
Common Mode Rejection
Composite Video: Greater than 40 dB over the frequency range
Max. Distance via CAT 5e/6 UTP
Composite Video: 2200' (670 m)
Audio: 3250' (990 m)
Pin Configuration
Composite Video: Video (Yellow): Pins 7(R) and 8(T) (reverse polarity sensitive)
Audio: Audio 1 (White): Pins 1(R) and 2(T) / Audio 2 (Red): Pins 3(R) and 6(T)
Cable - UTP
24 AWG or lower solid copper twisted pair wire
Impedance: 100 Ohms at 1 MHz; Maximum Capacitance: 20 pf/foot
Attenuation: 6.6 dB per 1,000' / 304.8 at 1 MHz
Connectors
1 x RCA-M for video (yellow)
2 x RCA-M for stereo audio (red, white)
1 x RJ45 for Cat 5e/6
Temperature
Operating: 32 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C)
Humidity: Up to 95% (non-condensing)
Enclosure
Fire retardant plastic
Dimensions
2.40 x 2.25 x 1" (6.1 x 5.7 x 2.54 cm) + 6" (15.24 cm) cable leads for video and stereo audio
Weight
3.1 oz (88 g)
Packaging Info
Package Weight
0.2 lb
Box Dimensions (LxWxH)
5.6 x 4.4 x 1.1"
