| Environment | SCART / Peritelvision / Euroconnector
Composite video, S-Video, stereo audio
PAL, SECAM, NTSC |
| Devices | DVD players, VCR, satellite receivers, Xbox, Digital TV, MPEG players, monitors, LCD projectors, plasma screens, video switchers, sequencers, digital video servers, video multiplexers, video distribution amplifiers, video converters, and other composite video and S-Video equipment for SCART / Peritelvision / Euroconnector |
| Transmission | Transparent to the user |
| Compatible Baluns | 500000, 500001, 500009, 500012, 500016, 500017, 500018, 500019, 500021, 500023,
500038, 500039, 500201 |
| Bandwidth | Composite Video & S-Video: DC to 6 MHz
Stereo Analog Audio: 600 Ω for 73 Hz to 156 KHz@300 m, 1.2 KΩ for 128 Hz to 91 KHz@300 m |
| Impedance | Composite Video & S-Video: 75 Ω
Stereo Analog Audio: 600 Ω minimum |
| Maximum Input | Composite Video & S-Video: 1.1 Vpp
Stereo Analog Audio: 1.1 Vpp |
| Insertion Loss | Composite Video & S-Video: Less than 2 dB per pair over the frequency range from DC to 6 MHz
Stereo Analog Audio: @600 Ω less than 3 dB per pair, @1.2 KΩ less than 1.9 dB per pair |
| Return Loss | Composite Video & S-Video: Better than 15 dB from DC to 6 MHz
Stereo Analog Audio: NA |
| Common Mode Rejection | Composite Video & S-Video: Greater than 40 dB from DC to 6 MHz
Stereo Analog Audio: NA |
| Max. Distance via Cat 5 Twisted Pair | S-Video: 984.25' (300 m)
Composite Video: 2198.15' (670 m)
Stereo Analog Audio: 4921.24' (1500 m) |
| Cable - UTP | 24 AWG or lower solid copper twisted pair
Impedance: 100 Ω at 1 MHz
Maximum Capacitance: 65 pf/m
Attenuation: 2.2 dB/100m at 1 MHz |

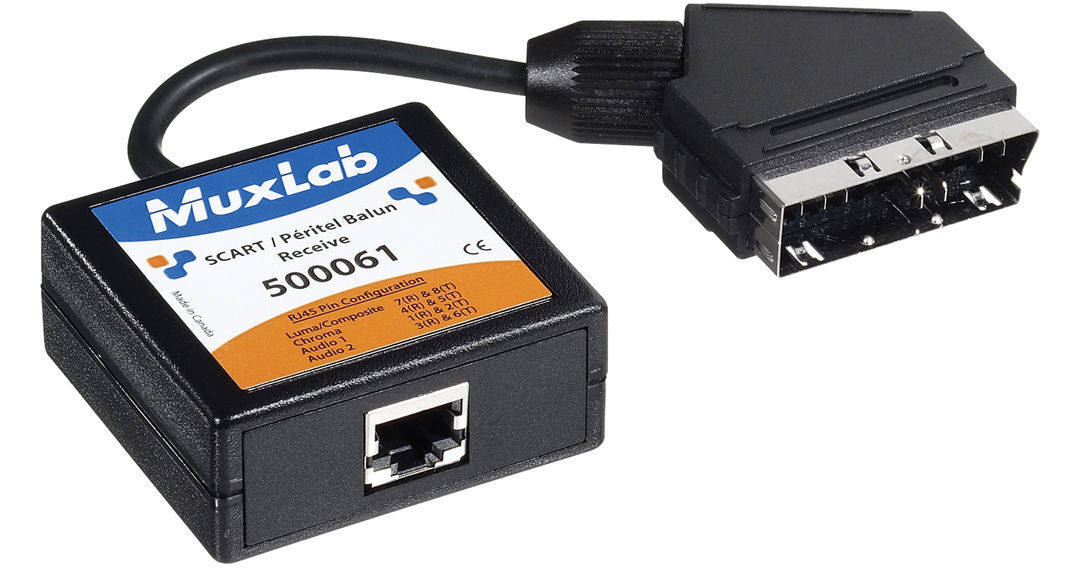

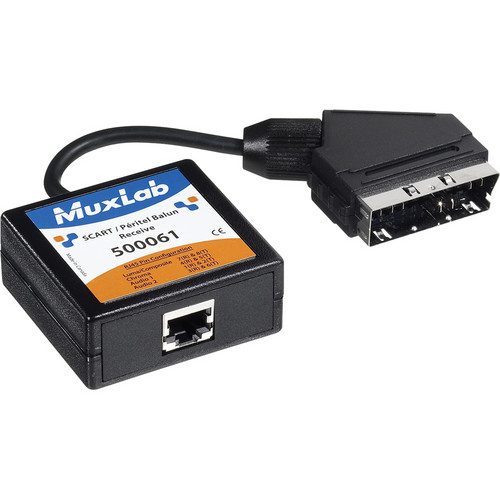

| Connectors | 1 SCART / Peritel / Euro connector and 1 shielded RJ45 connector |
| Pin Configuration |
| SCART | Description | RJ45
EN 50173 | RJ45 Signal |
|---|
| 4 | Audio return | 1 | Audio 1 [R] | | 2 | Audio right in (signal) | 2 | Audio 1 [T] | | 4 | Audio return | 3 | Audio 2 [R] | | 13 | Chroma return | 4 | Chroma [R] | | 15 | Chroma in | 5 | Chroma [T] | | 6 | Audio left (mono) in (signal) | 6 | Audio 2 [T] | | 18 | Luma return
Composite video return | 7 | Luma / Composite [R] | | 20 | Luma in
Composite video in | 8 | Luma / Composite [T] | | 21 | Shield (optional) | Shield | Shield (optional) |
|
| Temperature | Operating: 32 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20 to 85° C)
Humidity: Up to 95% |
| Enclosure | Fire retardant plastic |
| Standards | EN 50173, EIA/TIA 568, ISO/IEC DIS 11081 |
| Dimensions | 2.4 x 2.25 x 2.5" (6.1 x 5.71 x 6.35 cm) plus 4" (10.2 cm) SCART cable lead |
| Weight | 3.3 oz (94 g) |
