Matrix Switch MSC-V1664 16 x 64 Composite Analog Video Router with Status Panel

BH #MAMSCV1664 • MFR #MSC-V1664
Print
Authorized Dealer
Matrix Switch MSC-V1664 16 x 64 Composite Analog Video Router with Status Panel
No Longer Available
No Store Display
Protect Your Gear
Add a protection plan from $233.99
See Options

Business Financing Options

Ask an Expert
800-606-6969

Matrix Switch V1664 Overview

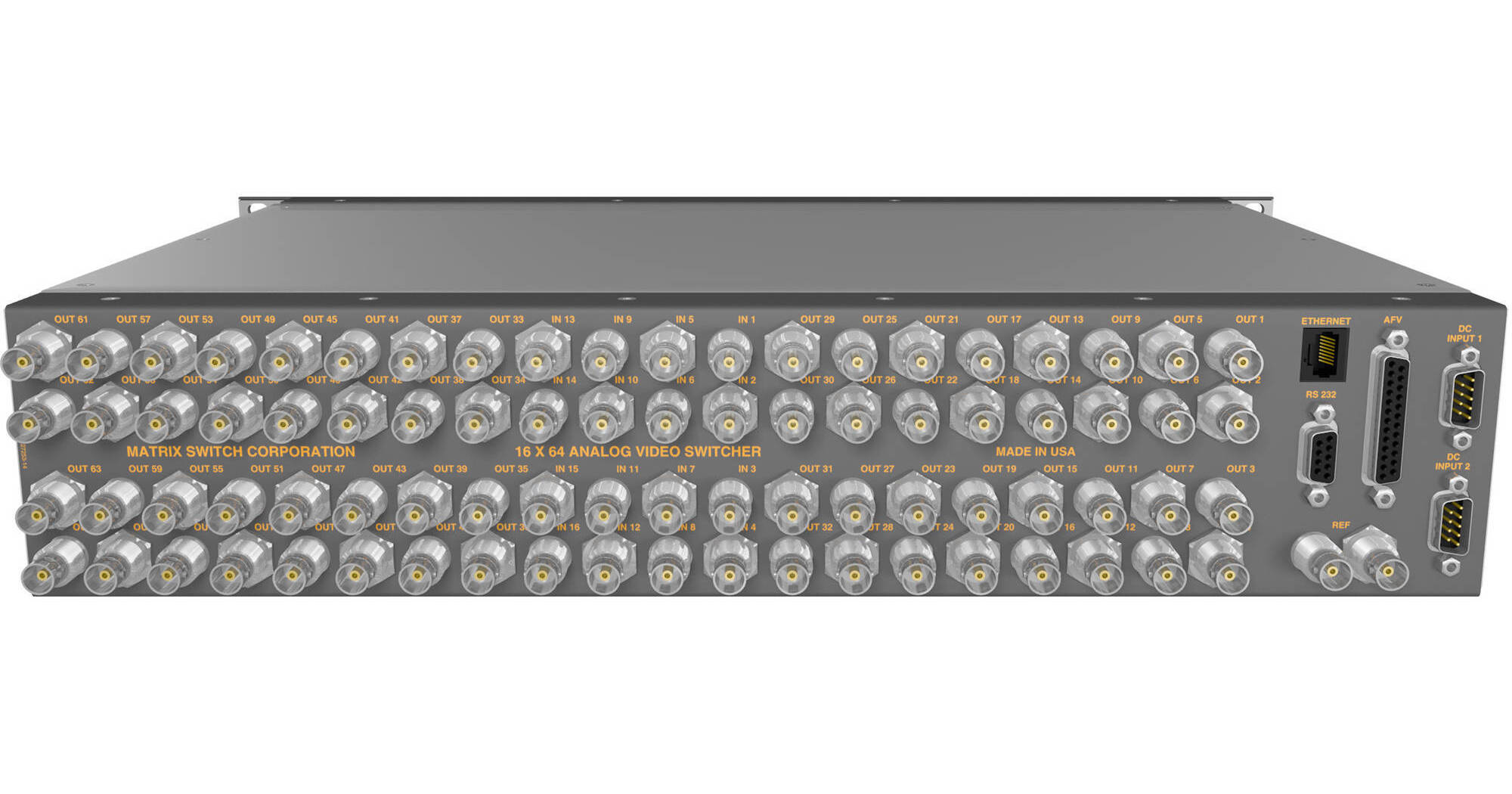

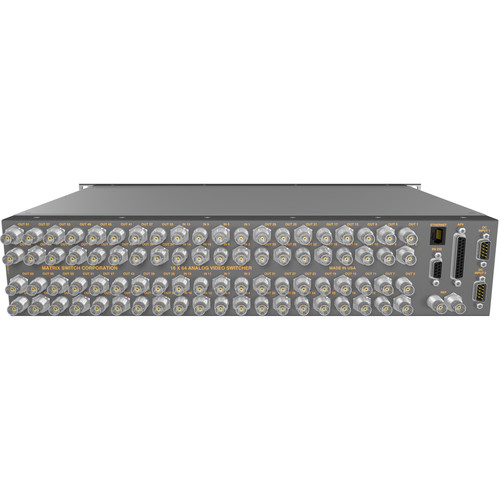

The MSC-V1664 16 x 64 Composite Analog Video Router with Status Panel from Matrix Switch Corporation features 16 inputs and 64 outputs. It can be used standalone or combined with additional analog video routers to produce a 2-channel YV router or 3-channel YUV or RGB router. When used in conjunction with the MSC-GCP2U32 LCD remote control panel, it can combine multiple analog video routers to expand the available input or output channels, using cascaded systems or input replication.

A D25 connector provides the capability to hook up a second matrix level directly to this router with a 25-pin straight through cable, for adding AES digital or analog stereo audio format support. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device. Additional control interfaces include RS-232 and TCP/IP over the Ethernet interface.

Inputs can be switched to multiple outputs without restriction
Minimum signal bandwidth of 50 MHz
Shielding and low-noise linear on-board power supply regulation result in systems with low crosstalk and noise levels
Features powerful yet easy-to-use MASCOT protocol
Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
Store and recall up to 10 preset salvos
Features panel with status lights
Supports Matrix Switch Corporation remote panels
Ethernet port for control via built-in web page interface or TCP/IP ports
Interactive web page interface
Serial control via RS-232 port
Supports some common third-party protocols for added integration flexibility
System software updates over Ethernet port
External DC power supply
Complies with FCC, U/L, CE, and RoHS requirements
Additional audio level can be connected to D25 connector, with break away from video support

Matrix Switch V1664 Specs

Inputs
16 channels
Outputs
64 channels
Enclosure Type
2 RU
Power Type
12 VDC 5A adapter
Power Connector
D9 Male
Panel Type
Status
Ethernet
10 Base-T
Connector Type
BNC
Input/Output Level
Nominal: 1 V p-p
Maximum: ± 2 V p-p
Impedance
Input/Output: 75 Ohms
Input Return Loss
< 40 dB at 5 MHz typical
Output Return Loss
< 35 dB at 5 MHz typical
Overall Gain
Overall Gain Unity: ±1% into a 75 Ohms termination
Frequency Response
±0.1 dB to 5 MHz +0 -3 dB to 60 MHz
Crosstalk
> 60 dB at 5 MHz all hostile
Differential Phase
< 0.2° at 3.58 MHz @ 4.43 MHz
Differential Gain
< 0.2% at 3.58 MHz @ 4.43 MHz
S/N Ratio
> 75 dB 0 to 10 MHz
Dimensions
19.0 x 3.5 x 11.0" (48.3 x 8.9 x 27.9 cm)
Weight
12.0 lb (5.4 kg)
Packaging Info
Package Weight
25.95 lb
Box Dimensions (LxWxH)
24.1 x 20.6 x 8"
