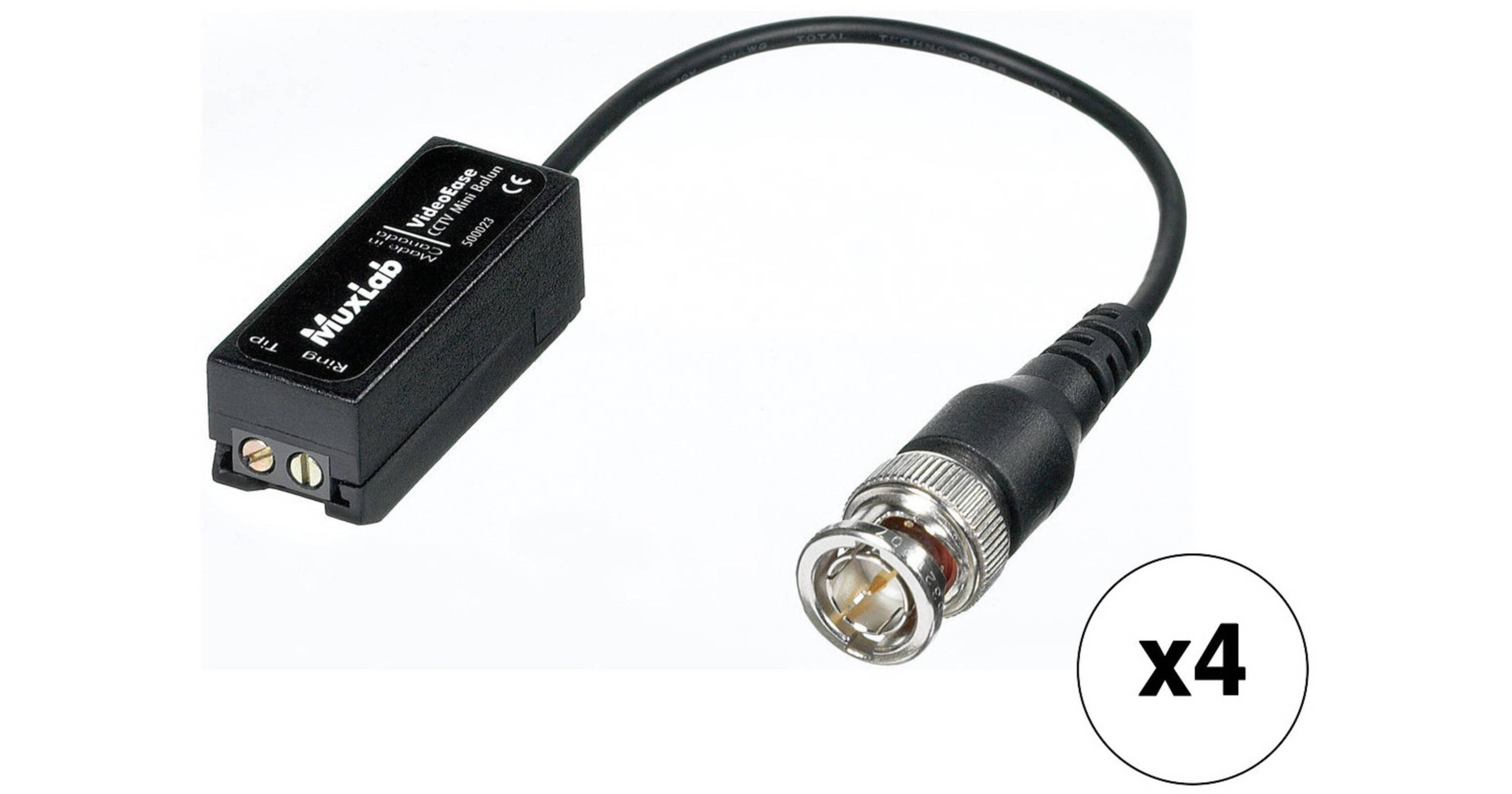

MuxLab 500023 CCTV Mini Balun (4-Pack)

BH #MUMBSTK
1 review
Print
MuxLab 500023 CCTV Mini Balun (4-Pack)

4

Pack

Key Features
  • Transmits Video via Cat 3/5 Cables
  • Transmits Color Signals 1200' via Cat 3
  • Transmits Color Signals 2200' via Cat 5
  • Transmits B&W Signals 1500' via Cat 3
The 500023 CCTV Mini Balun from MuxLab transmits a single CCTV video signal via Cat 3 or Cat 5 UTP (Unshielded Twisted Pair) cable, eliminating the need for coaxial cable. Providing a hassle-free cabling solution, it connects a wide range of surveillance equipment such as cameras, DVRs, video switchers, monitors, sequencers, multiplexers, and other CCTV devices.
More Details
In Stock
No Store Display
$87.50
+
Save the Tax‡
when you use the Payboo credit card. Learn More
Add to Cart
Free Standard Shipping
Protect Your Gear
Add a protection plan from $8.99
See Options
Quantity
1
2
4
Ask an Expert
800-606-6969

MuxLab 500023 Overview

The 500023 CCTV Mini Balun from MuxLab transmits a single CCTV video signal via Cat 3 or Cat 5 UTP (Unshielded Twisted Pair) cable, eliminating the need for coaxial cable. Providing a hassle-free cabling solution, it connects a wide range of surveillance equipment such as cameras, DVRs, video switchers, monitors, sequencers, multiplexers, and other CCTV devices.

This mini balun supports transmission of color signals at up to 1200' via Cat 3 cable, which can be extended to up to 2200' via Cat 5 cabling. Additionally, the balun can transmit B&W signals up to 1500' via Cat 3 cables, with extended transmissions of up to 2500' using Cat 5 cable.

The balun is designed to be used in pairs, and it works in conjunction with other MuxLab CCTV baluns (500000, 500009, and 500015) for additional compatibility. Featuring a compact design, the balun can fit inside a camera back box or dome enclosure for a neat installation, and it is constructed of ABS fire-retardant plastic for durability.

Allows use of Cat 3/5 cables as an alternative to coaxial cables
Transmits color signals up to 1200' via Cat 3; distance can be extended up to 2200' via Cat 5
Transmits B&W signals up to 1500' via Cat 3; distance can be extended up to 2500' via Cat 5
Fits between inside most CCTV camera back boxes and dome camera enclosures
Constructed of ABS fire-retardant plastic for durability
Reverse polarity sensitive connectors with 2 screw terminals
Compatible with other MuxLab CCTV baluns (500000, 500009, and 500015)
UPC: 627699000236

MuxLab 500023 Specs

Environment
Closed-Circuit TV (CCTV) equipment for security and surveillance
Devices
CCTV cameras, digital video recorders (DVRs), monitors, switchers, sequencers, multiplexers, and other CCTV equipment
Transmission
Transparent to the user
Bandwidth
Video: DC - 8 MHz
Maximum Input
1.1 V p-p
Insertion Loss
Less than 2 dB per pair over the frequency range from DC - 8 MHz
Return Loss
Greater than 15 dB over the frequency range from DC - 8 MHz
Common Mode Rejection
Greater than 40 dB @ 8 MHz
Maximum Distance
Color: Cat 3: 1200' (365 m); Cat 5: 2200' (670m)
(Shorter distances may be achieved when used with DVRs)

B/W: Cat 3: 1500' (457 m); Cat 5: 2500' (762 m)
Cable Requirements
UTP: 24 gauge or lower solid copper twisted pair wire impedance: 100 Ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' (305 m) at 1 MHz

BNC: Impedance: 75 Ohms at 1 MHz (RG59/U mini coax)
Maximum 25' (7.6m) of coax allowed per end to end link

Connectors
Two (2) screw terminals for twisted pair
BNC-M for coax
Impedance
Input: 75 Ohms (BNC)
Output: 100 Ohms (screw terminals)
Temperature
Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: Up to 95%
Enclosure
ABS fire-retardant plastic
Dimensions
2.3 x 0.62 x 0.62" (5.8 x 1.6 x 1.6cm) + 8" (20.3cm) mini coax lead
Weight
1 oz (28g)
Packaging Info
Package Weight
0.07 lb
Box Dimensions (LxWxH)
4.5 x 2.45 x 0.85"

MuxLab 500023 Reviews

Great Balun for the Money

By Anonymous
Rated 4 out of 5
Date: 2011-01-30

Balun works fine, easy to connect, CCTV signal is strong over a 400 feet twisted pair. Would buy this product again.
