Shinybow SB-8188 8 x 8 VGA Audio Matrix Switcher

BH #SHSB8188 • MFR #SB-8188
Print

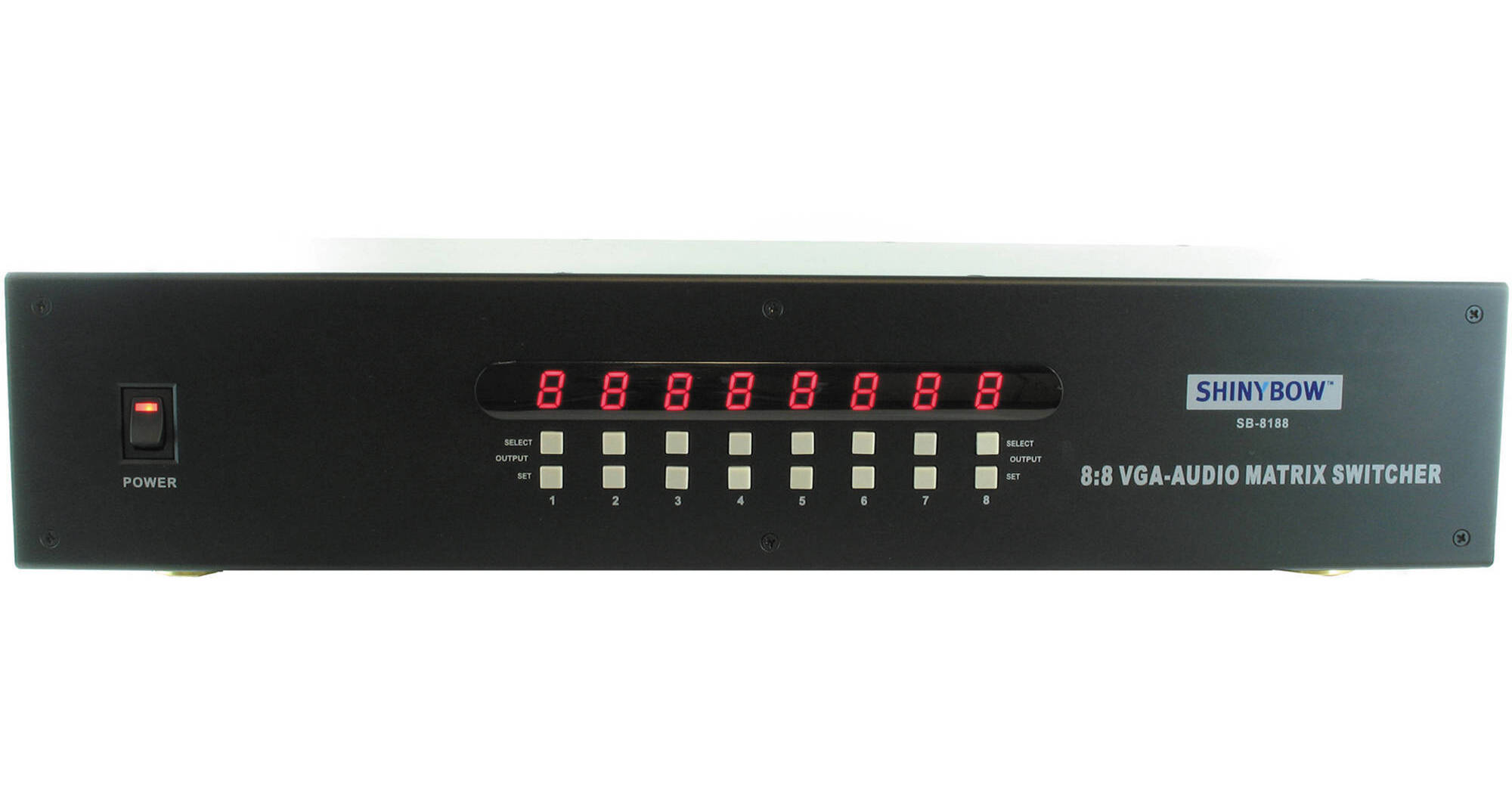

Shinybow SB-8188 8 x 8 VGA Audio Matrix Switcher
No Longer Available
No Store Display
Ask an Expert
800-606-6969

Shinybow SB-8188 Overview

The Shinybow SB-8188 8 x 8 VGA Audio Matrix Switcher contains a high speed video bandwidth of 310 MHz and maximum 380 MHz, and also supports 19” (48.26 cm) ear mount or desktop mounting. It has 8 individual inputs with 8 individual outputs. Because it is a matrix router, any input may be routed to any output; or the same input may be routed to all outputs or any combination.

It completely eliminates the need to constantly move around VGA and stereo audio input and output cables. This matrix switcher is ideally suited for full HD LCD TV or plasma display monitor applications. Control is provided via front pushbuttons with LED readout or via an IR remote control. An RS-232 interface is provided for interfacing with third party control. A Windows-based control software package is included to provide complete control of the SB-8188 from a PC.

Support 8 inputs to 8 outputs VGA / Audio Matrix Switcher
Support PC Resolution VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1900 x 1200)
Video Bandwidth : 380 MHz (-3 dB), 200 mVpp
Good video (VGA-RGBHV) and stereo audio performance
Audio Frequency Response : 20 Hz to 20 KHz
Low all hostile crosstalk of -83 dB @ 5 MHz
Good ESD Rating : Exceeds 4000 V
Switching RGBHV in LCD monitors and plasma displays
Suitable for full HD high-resolution video player devices and LCD/plasma displays
Direct selection and confirm via front pushbuttons with LED readout
Infrared : IR remote control (38 KHz)
Supports RS-232 interface control driver for 95/98/2000/XP (Windows-based control software driver included)
RS-232 protocol list with manual attached
Enclosure Type: Support 19" (48.26 cm) ear & rack mountable pane
Supports lower power consumption; full load under 1500 mA
Power supply with a universal type 100 to 230 VAC switch

Shinybow SB-8188 Specs

Switcher
Type: 8 inputs to 8 outputs VGA Matrix Switcher
Video Bandwidth
380 MHz, (-3 dB) 200 mVpp, 310 MHz, (-3 dB) 2 Vpp
R = 325 MHz, G = 325 MHz, B = 325 MHz, H = 110 MHz, V = 110 MHz
Audio Bandwidth
60 MHz, (-3 dB) (Audio-Right = 60 MHz, Audio-Left = 60 MHz)
Audio Frequency Response
20 Hz to 20 kHz
Gain Flatness
90 MHz, 0.1 dB
Differential Gain Error
0.01%, 0.1 dB
Differential Phase Error
0.02, 0.1 dB (RL = 150 W )
Settling Time
Fast: 15 ns to 0.1%
Crosstalk
All Hostile: -84 dB @ 5 MHz, -54 dB @ 50 MHz
Channel: -56 dB @ 100 MHz
Slew Rate
1000 V/us, G = + 1, 2 V step
Isolation
High OFF: -100 dB @ 10 MHz
Output Current
100 mA
Power
CMOS: 550 uA quiescent current (low)
Controls
IR Remote Controller (38 KHz), Front panel selection buttons with LED readout and RS-232 PC control
Safety Approvals
CE, FCC, RoHS (2002/95/EC)
Power Voltage Input
12 VDC @ 2 A
Dimensions
17.32 x 7.80 x 3.43" (440 x 200 x 88 mm)
Weight
97 oz (2,750 g) with metal case
Packaging Info
Box Dimensions (LxWxH)
20 x 12 x 6"
