MuxLab 500054 Component Video/IR Pass-Thru Balun (Male), 2-Pack

BH #MUCVIRPTBM2P • MFR #500054-2PK
Print

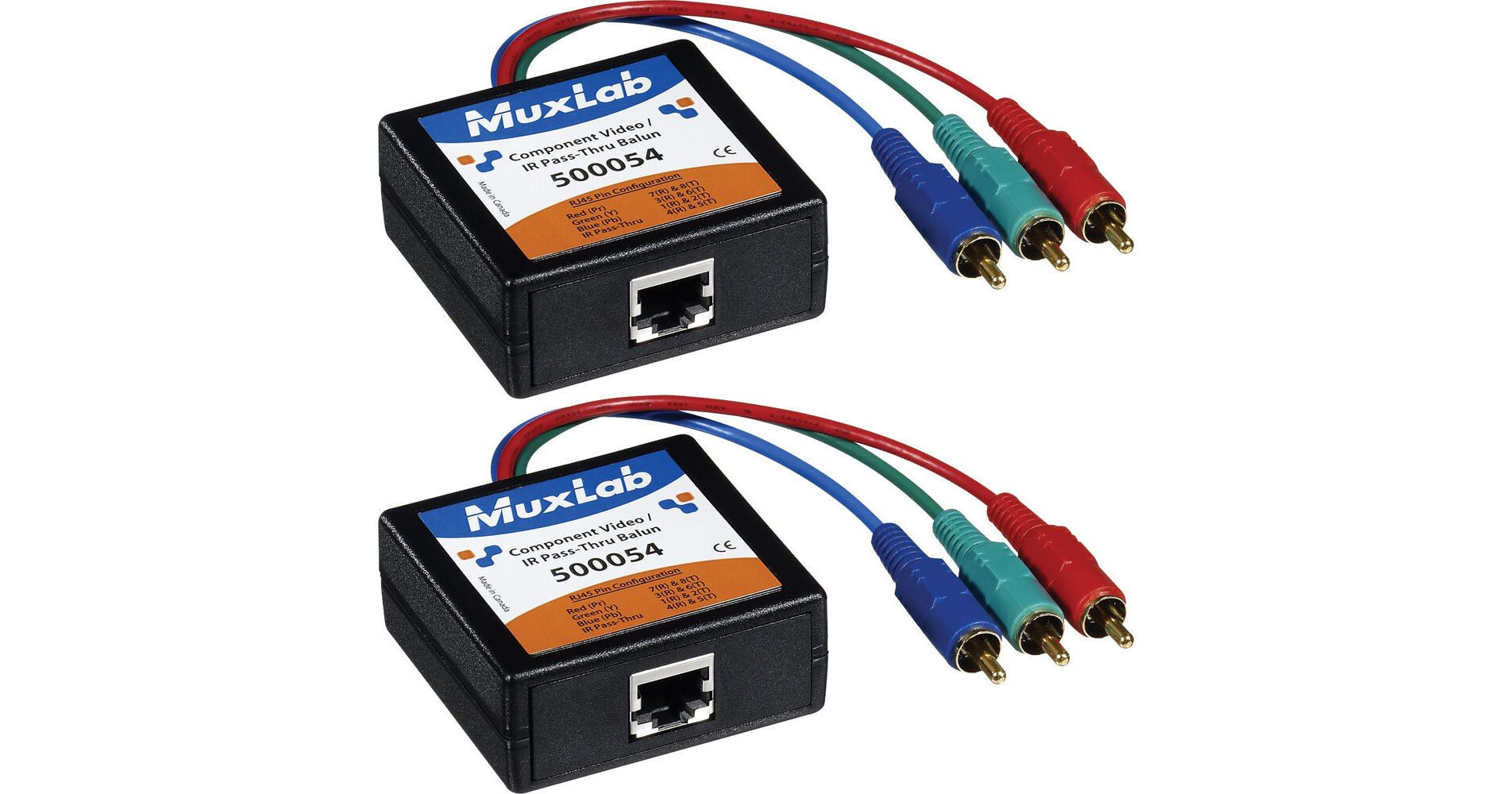

MuxLab 500054 Component Video/IR Pass-Thru Balun (Male), 2-Pack
Key Features
  • Transmits Component Video / IR-emitter
  • Uses Category 5E/6 Twisted Pair Cable
  • For 480i/p/720p/1080i/p Video Formats
  • IR-emitter Pass-thru on Fourth UTP Cable
The Pair of MuxLab 500054 Component Video/IR Pass-Thru Baluns (Male) allow transmission of a component video (YPbPr or RGB) signal and an IR-emitter signal using a Cat5E/6 UTP (Unshielded Twisted Pair) cable.
More Details
No Longer Available
No Store Display
Ask an Expert
800-606-6969

MuxLab Component Video/IR Pass-Thru Balun Overview

The Pair of MuxLab 500054 Component Video/IR Pass-Thru Baluns (Male) allow transmission of a component video (YPbPr or RGB) signal and an IR-emitter signal using a Cat5E/6 UTP (Unshielded Twisted Pair) cable.

When used together, the Component Video/IR Pass-Thru Baluns support applications that use 480i/p (up to 1000') and 720p and 1080i/p (up to 500') HDTV (hi-definition) video. It offers support for IR-emitter pass-thru on a fourth twisted pair, and features molded color-coded RCA cable leads and modular shielded RJ45 connectors for an easy attachment.

Besides Cat5E/6 being a cheaper alternative to coaxial cabling, the use of the balun also makes changes and additions easier. Providing hassle-free cabling solution, the balun connects to equipment that includes DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theatre and other equipment supporting HDTV component video and IR control.

Allows transmission of a component video (YPbPr or RGB) signal and an IR emitter signal using a Cat5E/6 UTP cable
Used in pairs
Supports applications that use 480i/p (up to 1000') and 720p and 1080i/p (up to 500') HDTV (hi-definition) video
Offers support for IR-emitter pass-thru on a fourth twisted pair
Molded color-coded RCA cable leads
Includes 3 RCA-M connectors - Green (Y), Blue (Pb), and Red (Pr)
Modular shielded RJ45 connectors for an easy attachment
Allows use of Cat5E/6 cables as an alternate to coaxial cables, making changes and additions easier
Hassle-free cabling solution
Made of ABS fire retardant plastic
Connects to equipment that includes DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theatre and other equipment supporting HDTV component video and IR control
Meets FCC, CE, and RoHS regulatory standards

MuxLab Component Video/IR Pass-Thru Balun Specs

Environment
Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. IRemitter pass-thru
Devices
DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters,amplifiers, switchers, home theatre and other equipment supporting HDTV componentvideo and IR control
Transmission
Transparent to the user
Bandwidth
Video: 60 MHz, 3 dB roll off
Maximum Input
1.1Vp-p
Insertion Loss
0.1 dB for 0.1 MHz. Gradually increasing to 3.0 dB over the frequency range
Return Loss
Greater than 15 dB over the frequency range
Common Mode Rejection
-55 dB max
Maximum Distance
(Using Cat 5E/6 UTP & STP)
480i/p: 1,000 ft (305m)
720p and 1080i/p: 500 ft (152m)
Cable
(via Cat5/6 UTP/STP)
24 gauge or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz
Cable - Coax
Impedance: 75 ohms at 1 MHz
Connectors
3 RCA-M connectors: Green (Y), Blue (Pb) , Red (Pr)
Temperature
Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: up to 95%
Enclosure
ABS fire retardant plastic
Dimensions
plus 6" (15.24cm) cable lead for video
Weight
2.9 oz (81 gm)
Regulatory
FCC, CE, RoHS
Packaging Info
Package Weight
0.5 lb
Box Dimensions (LxWxH)
5.5 x 4.5 x 2.2"
