Sony HXCU-FB70 Optical Fiber Camera Control Unit

BH #SOHXCUFB70 • MFR #HXCU-FB70
Print

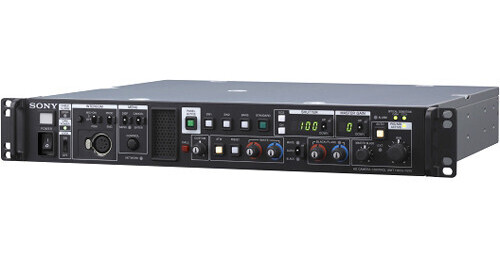

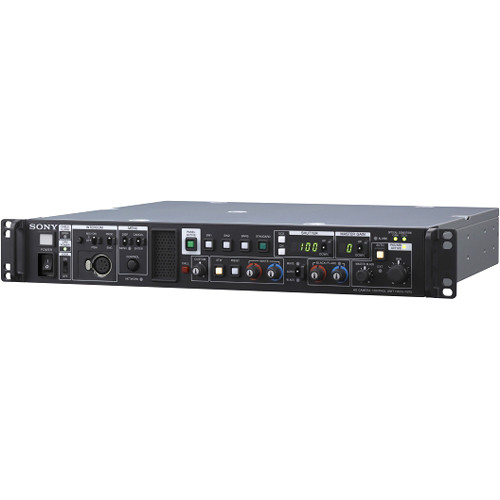

Sony HXCU-FB70 Optical Fiber Camera Control Unit
No Longer Available
No Store Display
Ask an Expert
800-606-6969

Sony HXCU Fiber CCU Overview

The Sony HXCU-FB70 Optical Fiber Camera Control Unit and its companion, the CA-FB70 camera adapter (sold separately), provide the fiber optic transmission system to the HXD-D70 HD studio camera system (sold separately).This system assists you in capturing high quality pictures and offers flexible integration.

Provides optical fiber transmission capability to the HXC-D70 Camera and PMW-320 / 350 / 500 Camcorders
High quality & long distance image transmission

Sony HXCU Fiber CCU Specs

Inputs & Outputs
Camera
Optical multi-connector
Intercom
D-sub 25-pin, female (1x)
Intercom (PROD and ENG), 4W / RTS / CC, 0 dBu
Tally: (R and G)
PGM: 1X system, -20 / 0 / +4 dBu
Remote
8-pin (1x)
Trunk
D-sub 9-pin (1x), female, RS-232C system (Only for HXC-D70 camera)
LAN
RJ-45 8-pin (1x) control
SDI Output
BNC (4x) HD / SD selectable at each pair of 2 outputs
Analog Video Output
BNC (3x) Selectable from HD (Y / Pb / Pr or R/G/B) or SD (Y / Cb / Cr or R/G/B)
S-Video Output
Mini DIN 4-pin (1x)
Output
VBS: BNC (2x)
PIX (Monitor, VBS): BNC (1x)
Sync Output: BNC (1x)
Audio Outputs: XLR 3-pin (2x)
HDMI
Monitor Output: Type A 19-pin (1x), HDMI version 1.3
Input
Return Input (VBS): BNC (2x)
Return Input (SDI): BNC (2x) HD / SD selectable
Prompter Input (VBS): BNC (1x) with loop-through output BNC (1x)
Reference input and Loop-Through: BNC (1x) with loop-through output BNC (1x)
HD: SMPTE-274M, tri-level sync, 0.6 Vpp, 75 Ω
SD: Black burst (NTSC: 0.286 Vpp, 75 Ω / PAL: 0.3 Vpp, 75 Ω)
Intercom
Headset: XLR 5-pin (1x)
General
Operation Temperature
41 to 104°F (5 to 40°C)
Power Supply
100 to 240 VAC, 50 / 60 Hz
Storage Temperature
-4 to 140°F (-20 to 60°C)
Dimensions
19 x 2.62 x 14.37" (482.6 x 66.54 x 364.99 mm)
1.5 U rack-mount size
Weight
14.33 lb (6.49 kg)
Packaging Info
Package Weight
19.6 lb
Box Dimensions (LxWxH)
21.5 x 21 x 9"
